CENTREX 1000 SPECIFICATIONS

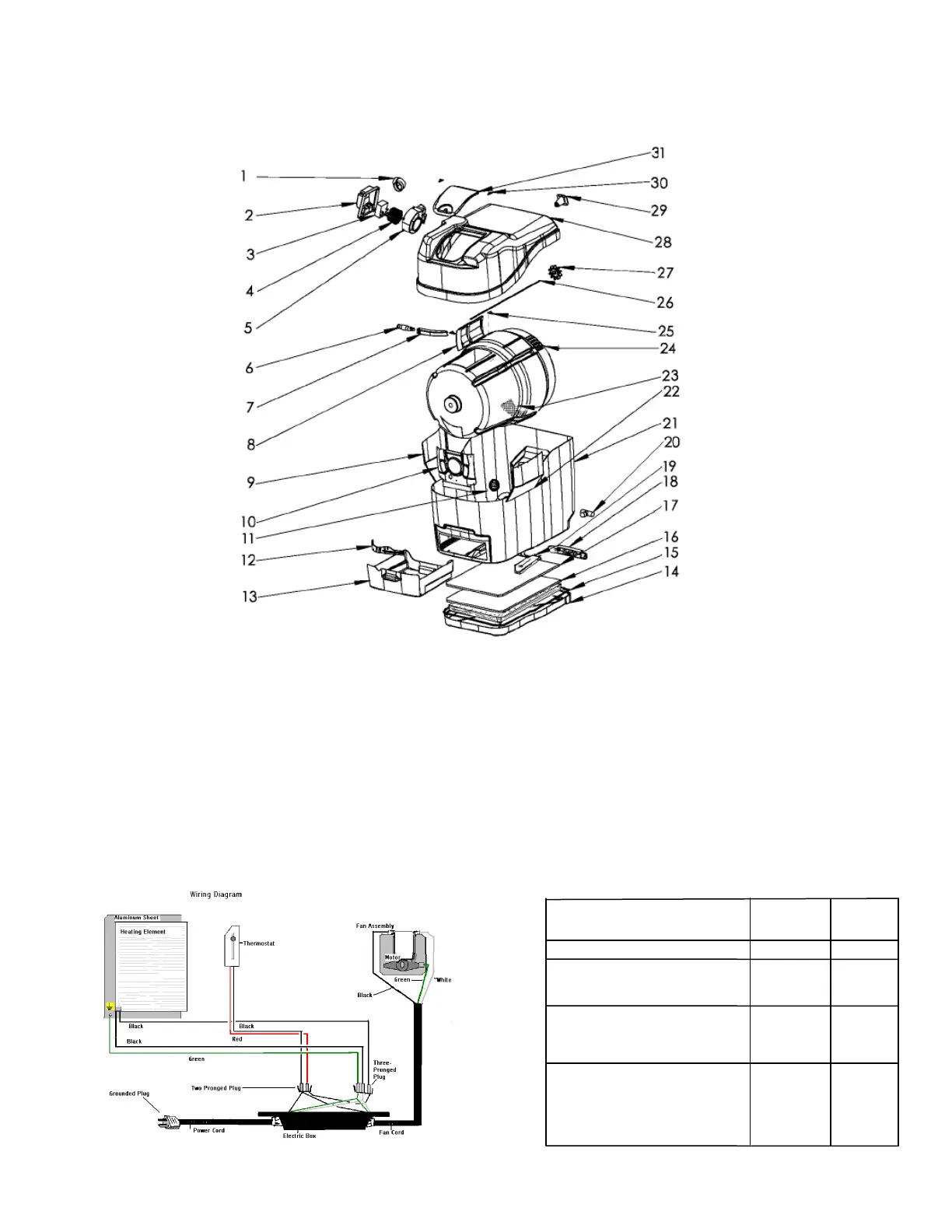

CENTREX 1000 EXPLOSION DIAGRAM & PART NUMBERS
1 2” (50mm) 90° pipe 12 Drum Locker 23 Drum Screen
2 Fan Door 13 Centrex 1000 Drawer 24 Centrex 1000 Drum
3 Fan Motor 14 Centrex 1000 Heater Tray 25 Drum Door Hinge
4 Fan Blower Wheel 15 Rubber U Channel 26 SS Shaft Kit
5 Fan Housing 16 Heating Element (electric) 27 Nylon Drive Gear
6 Handle Swivel 17 Aluminum Sheet (electric) 28 Centrex 1000 Top
7 Handle Block 18 Electric Box (electric) 29 Shaft Holder
8 Drum Door 19 Thermostat (electric) 30 Centrex Waste Inlet
9 Left Deflector 20 Safety Drain 31 Access Port
10 Rubber U Channel 21 Centrex 1000 Tank 32 Access Port Hinge
11 Air Intake 22 Right Deflector
Electrical Specifications 115V 240V
Maximum Amps 2.4 1.25
Fan Watts
(Required) 35 req. 35 req.
Heater Watts 260 265
(When on)
Average Power Use 150 150
In Watts (Heater on
1/2 time)
