Sun Yeh Electrical OM Series User Manual

Quarter -Turn Electric Valve Actuator【OM Series】 Sun Yeh Ele. Ind. Co., Ltd. | 2021.11
4
3. Product Mechanical Data

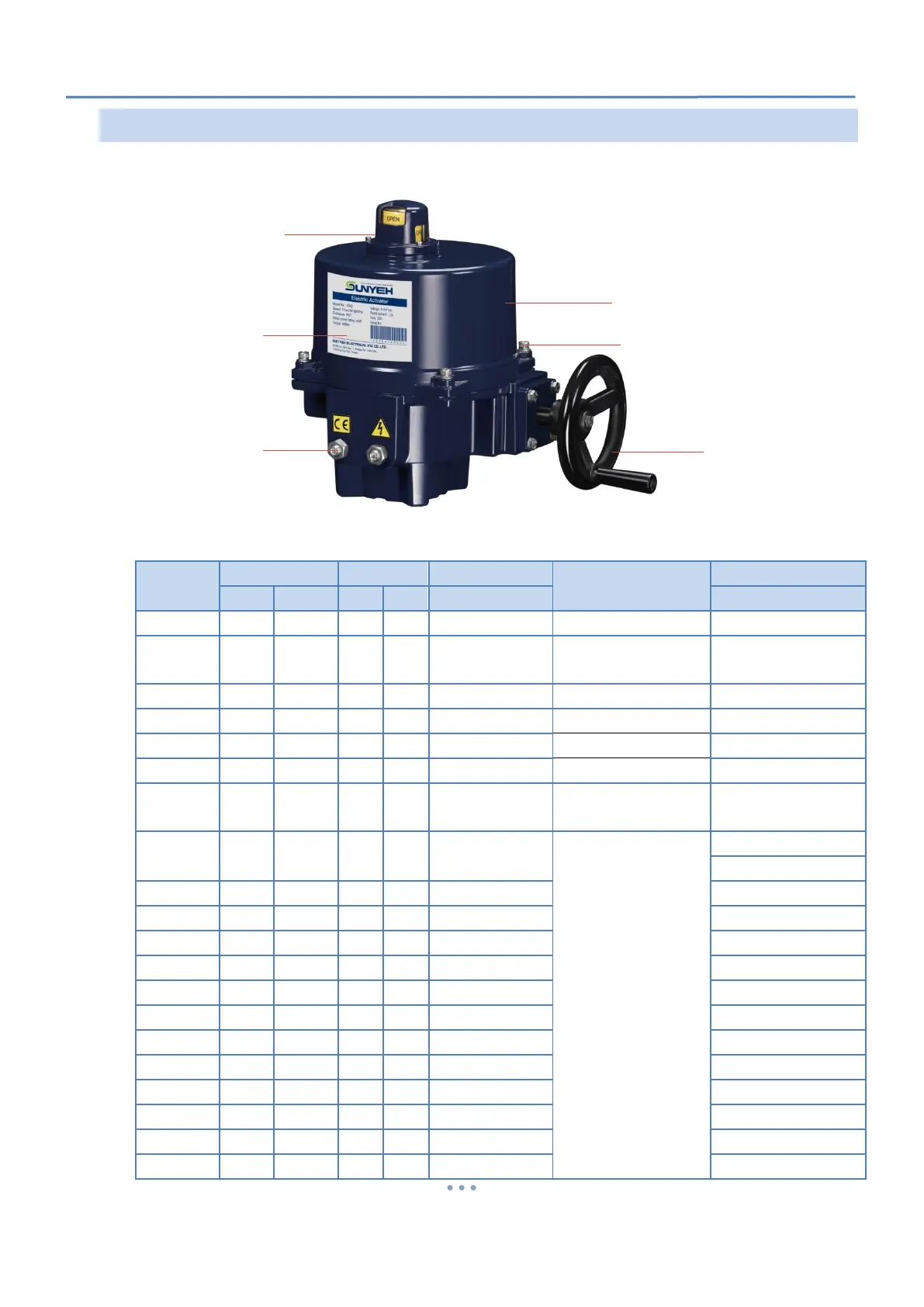

3.1 Parts Identification
3.2 Technical Information
Model
Torque
Weight
Motor Power
Manual Override
Mounting Flange
Nm
inlb
kg
lb
Watt
ISO 5211
OM-1
35
310
2
4.4
10
Lever
F03 / F05
OM-A
50
445
3
6.6
10
N/A
扳手
F05 / F07
OM-AM
50
445
3
6.6
10
Lever
F05 / F07
OM-F
65
575
11
25
60
Handwheel
F07 / F10
OM-J
80
708
3
6.7
5
Lever
F05 / F07
OM-2
90
800
11
25
40
Handwheel
F07 / F10
BM-2
120
1065
5.5
13
40
N/A
F07
OM-G
120
1065
11
25
60
Handwheel
F07/F10
F07 / F10
OM-3
150
1330
11
25
40
F07 / F10
OM-H
300
2655
17
38
60
F07 / F10
OM-4
400
3540
20
45
80
F10 / F12
OM-5
500
4430
20
45
80
F10 / F12
OM-6
650
5755
20
45
80
F10 / F12
OM-7
1000
8855
32
71
120
F12 or F14
OM-8
1500
13280
32
71
120
F12 or F14
OM-9
2000
17710
71
157
180
F14 or F16
OM-10
2500
22140
71
157
180
F14 or F16
OM-11
3000
26565
72
159
180
F14 or F16
OM-12
3500
31000
72
159
220
F14 or F16
OM-13
4500
40000
106
234
220
F16 / F25
Mechanical End Stops
Position Indicator
Actuator Top Cover
Top Cover Screw
Handwheel
Label
