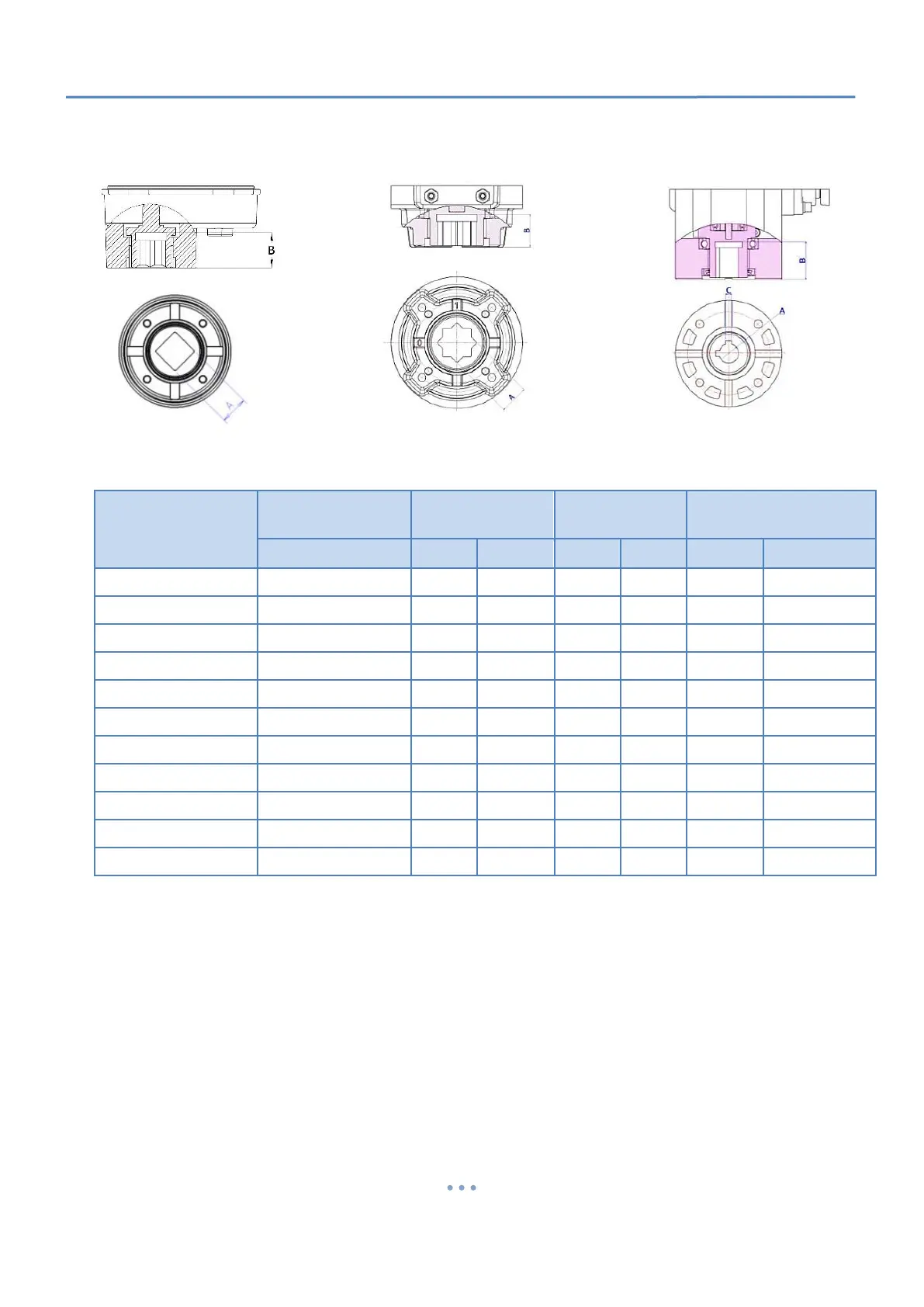

3.3 Mounting Base Details
Model
Mounting Flange
Shaft (A)
Depth of
Shaft (B)
Key (C)
ISO 5211
mm
inch
mm
inch
mm
inch
OM-1
F03 / F05
14
0.551
17
0.669
-
-
OM-A
F05 / F07
17
0.669
20
0.787
-
-
OM-AM,OM-J
F05 / F07
17
0.669
20
0.787
-
-
OM-F,OM-G
F07 / F10
22
0.886
30
1.181
-
-
OM-2 to OM-3
F07 / F10
22
0.886
30
1.181
-
-
BM-2
F07
22
0.886
35
1.377
-
-
OM-H
F07 / F10
22
0.886
30
1.181
-
-
OM-4 to OM-6
F10 / F12
36
1.417
40
1.574
-
-
OM-7 to OM-8
F12 or F14
35
1.377
60
2.362
10 × 10
0.393×0.393
OM-9 to OM-12
F14 or F16
75
2.952
100
3.937
12 × 10
0.472×0.393
OM-13
F16 / F25
72
2.834
110
4.33
20 × 12
0.787×0.472
【OM-A, OM-AM, OM-F, OM-G,
OM-H, OM-J and OM-1 to OM-6】
【OM-7 to OM-13】
【BM-2】
