CAUTION：The controller requires at least 150mm of clearance above
and below for proper air flow. Ventilation is highly recommended if
mounted in an enclosure.
InstallationProcedure:
CAUTION: If the controller is to be installed in an enclosed box, it is
important to ensure reliable heat dissipation through the box.

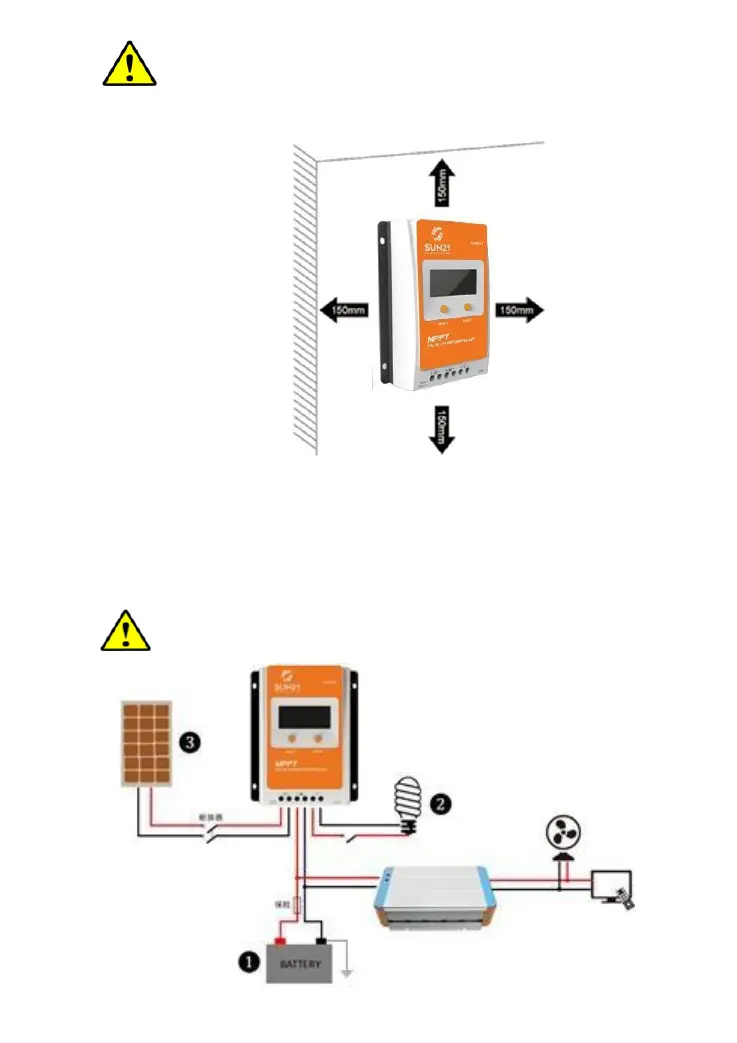

Figure 2-1 Mounting
Step 1: Determination of Installation Location and Heat-dissipation Space
Determination of installation location: The controller shall be installed in a place with
sufficient air flow through the radiators of the controller and a minimum clearance of
150 mm from the upper and lower edges of the controller to ensure natural thermal
convection. Please see Figure 2-1: Mounting
11
Figure 2-2 Schematic of wiring diagram
