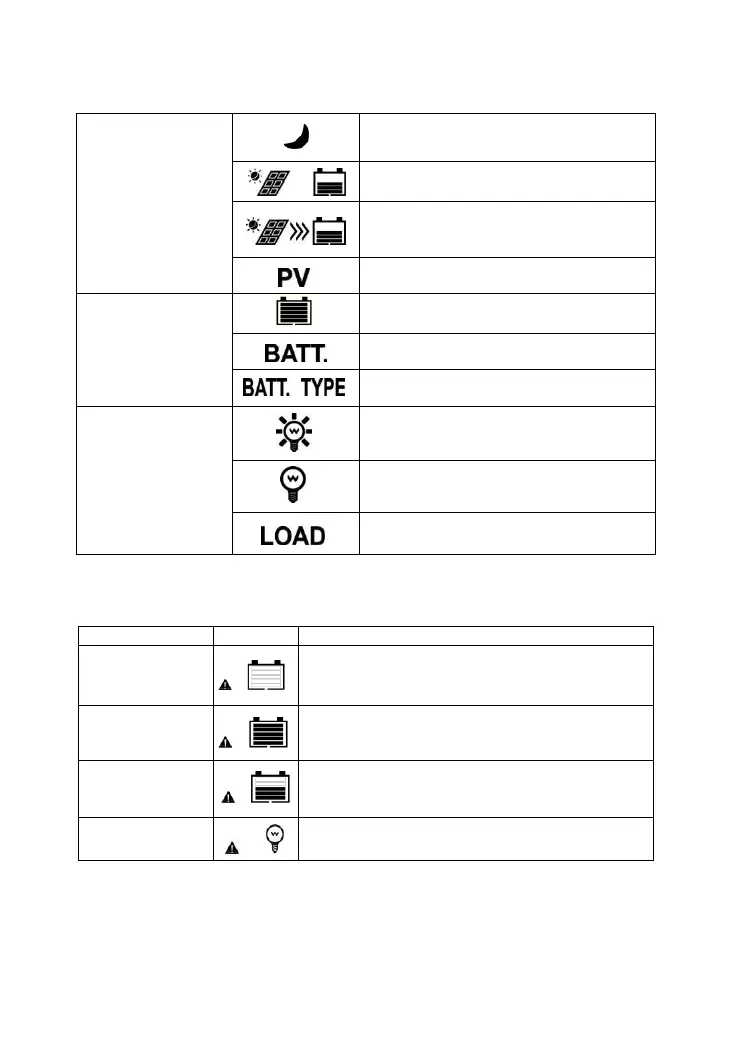

Night
No charging
Charging
PV Voltage, Current, Power
Battery
Battery capacity, In Charging
Battery Voltage, Current, Temperature
Battery Type
Load
Load ON
Load OFF
Load Voltage, Current, Load mode
2） Fault Indication
Status Icon Description
Batteryover
discharged
Battery level shows empty, battery frame blink,
fault icon blink
Batteryover
voltage
Battery level shows full, battery frame blink, fault
icon blink
Batteryover
temperature
Battery level shows current value, battery frame
blink, fault icon blink
Loadfailure
Load overload
①
,Load shortcircuit
①When load current reaches1.02-1.05 times 1.05-1.25 times, 1.25-1.35 times and
1.35-1.5 times more than nominal value, controller will automatically turn off loads in
50s, 30s,10s and 2s respectively.
15
