Sunbeam Air Conditioner - Emerson Wall Sleeve Installation (15 Deep)

6
WALL SLEEVE BRAND: Emerson (15” deep)

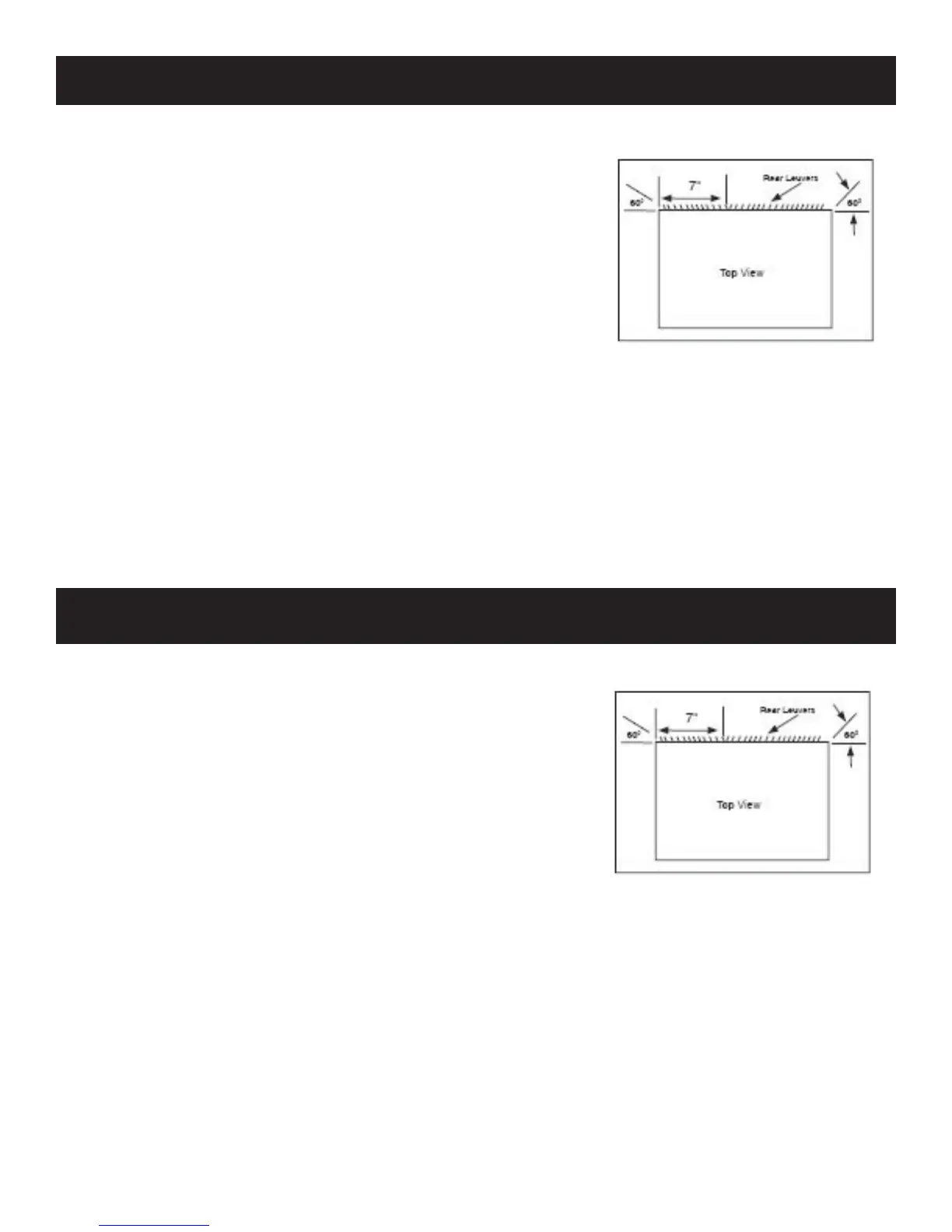

Redirect the louvers at the back of the wall sleeve.
Attach (1) 1 1/2” x 3/8” x 25” seal in the center at the top of
the sleeve. Remove the backing paper and press into position.
Attach (2) 1 1/2” x 3/8” x 14” seals to the left and right sides
of the sleeve.
Cut the 1 1/2” x 3/8” x 25” seal to 14” and attach to the
vertical section of th rear grille.
Attach (2) 4 1/2” x 3 1/2” x 1 1/2” centering/support blocks,
one on each side wall. Place in the center side wall with the
tapered end facing the opening.
1.
2.
3.
4.
5.
Gently slide the air conditioner into the sleeve.
Before sliding the unit all the way in, remove the second screw and washer from the front-left side of
the unit.
Screw and attach the other end of the ground wire to the unit, making sure the toothed washer is
against the cabinet.
Install the 1” x 1 1/2” x 84” stuffer seal between the wall sleeve and the air conditioner.
Assemble and install the trim frame (see “Trim Frame Assembly” section of manual).
6.
7.
8.
9.
10.
WALL SLEEVE BRAND: Whirlpool (17 1/8” deep)
Redirect the louvers at the back of the wall sleeve.
Attach (2) tapered spacer blocks to the inside wall of the sleeve
with the tapered end 1/2” from the back of the sleeve.
Attach (1) 1 1/2” x 1 1/2” x 25” seal in the center at the top of
the sleeve. Remove the backing paper and press into position.
Attach (2) 1 1/2” x 3/8” x 14” seals to the left and right sides
of the sleeve.
Cut the 1 1/2” x 3/8” x 25” seal to 14” and attach it to the
vertical section of the rear grille.
1.
2.
3.
4.
5.
Gently slide the air conditioner into the sleeve.
Before sliding the unit all the way in, remove the second screw and washer from the front-left side of
the unit.
Screw and attach the other end of the ground wire to the unit, making sure the toothed washer is
against the cabinet.
Install the 1” x 1 1/2” x 84” stuffer seal between the wall sleeve and the air conditioner.
Assemble and install the trim frame (see “Trim Frame Assembly” section of manual).
6.
7.
8.
9.
10.
