WALL SLEEVE BRAND: Whirlpool (23” deep)

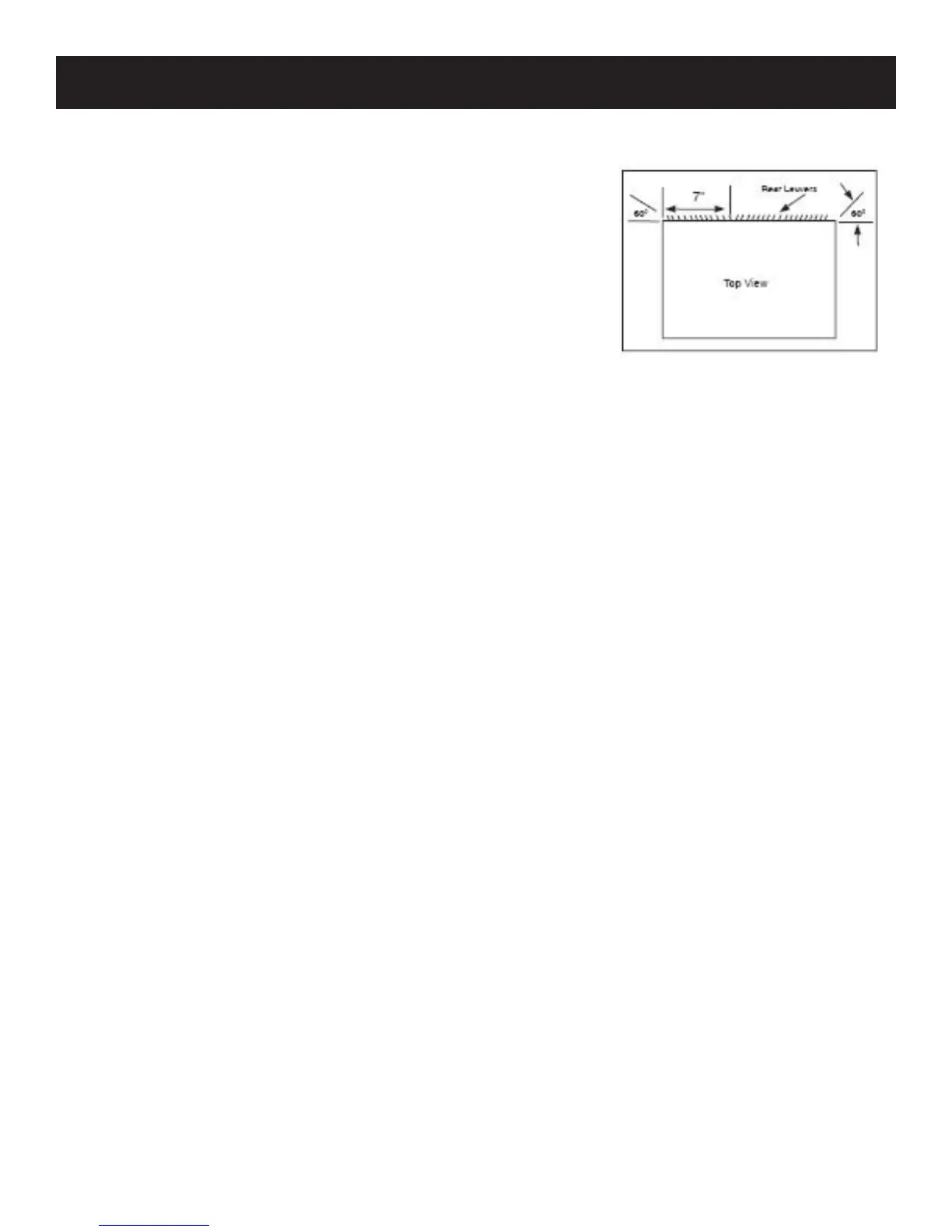

Redirect the louvers at the back of the wall sleeve.
Because of the increased unit depth, fi rst try fi tting the unit using the
following steps:
Place (2) 1 1/2” x 1 1/2” x 14” seals against each side.
Gently slide the unit into the sleeve and check if the amount
extending from the sleeve is suffi cient once the trim frame is
attached.
If the position is acceptable, remove the unit and continue
following these steps. If not, skip to the steps below.
Attach (1) 1 1/2” x 1 1/2” x 25” seal in the center at the top of
the sleeve. Remove the backing paper and press into position.
1.
2.
3.
4.
5.
Attach (2) 1 1/2” x 1 1/2” x 14” seals to the left and right sides of the sleeve.
Cut the 1 1/2” x 1 1/2” x 25” seal to 14” and attach it vertically to the rear grille, 7” from the left
side.
Attach the tapered spacer blocks to the fl oor of the sleeve.
Gently slide the air conditioner into the sleeve.
Before sliding the unit all the way in, remove the second screw and washer from the front-left side of
the unit.
Screw and attach the other end of the ground wire to the unit, making sure the toothed washer is
against the cabinet.
Install the 1” x 1 1/2” x 84” stuffer seal between the wall sleeve and the air conditioner.
Assemble and install the trim frame (see “Trim Frame Assembly” section of manual).
If the unit requires extra extension into the room, follow these steps:
Attach 1” x 3/4” x 14” seal over the solid vertical portion of the rear grille.
Attach (2) 4 1/2” x 3 1/2” x 1 1/2” foam blocks with the slot overlapping the seal above.
Install the divider into the slots of the foam blocks. You may need to trim the length to size.
Cut the 1 1/2” x 1 1/2” x 25” seal to fi t the top of the sleeve. The pieces must be fl ush to the edge
of the divider.
Attach (2) 1 1/2” x 1 1/2” x 14” seals along the sides of the sleeve, again making sure all seals are
fl ush.
Gently slide the air conditioner into the sleeve.
Before sliding the unit all the way in, remove the second screw and washer from the front-left side of
the unit.
Screw and attach the other end of the ground wire to the unit, making sure the toothed washer is
against the cabinet.
Install the 1” x 1 1/2” x 84” stuffer seal between the wall sleeve and the air conditioner.
Assemble and install the trim frame (see “Trim Frame Assembly” section of manual).
