8.0 APPENDIX
8.1 MODULE DETAILS
15 of 17

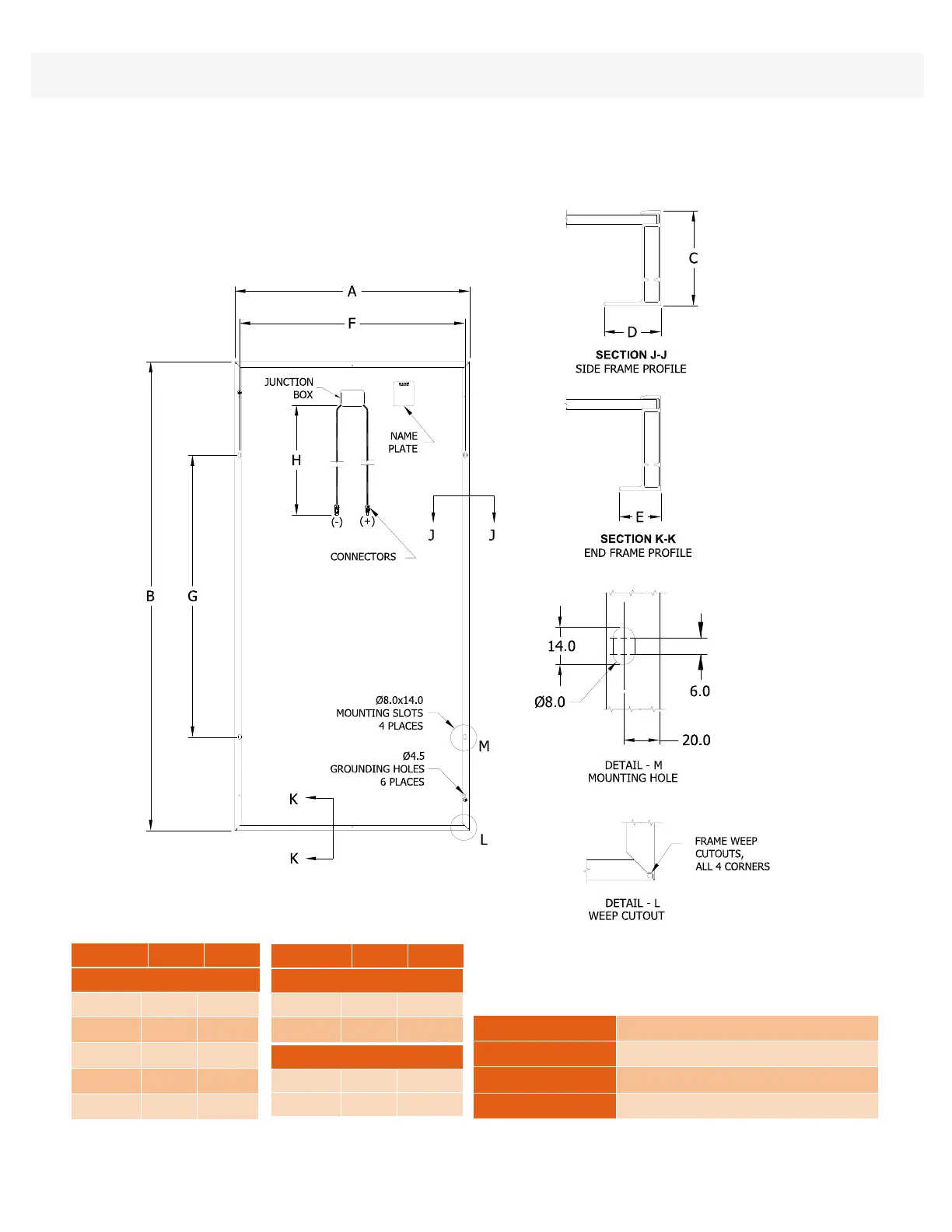

THE ENGINEERING DRAWING SHOWN BELONGS TO THE FOLLOWING
LISTED SILVANTIS MODULE SERIES: P300 & M/D/F330
A 990 39.0
B 1,976 77.8
C 50 2.0
D 30 1.2
E 22 0.9
Module Dimensions
Dimension MM INCH
F 950 37.4
G 1,188 46.8
H *(BMC) 1,000 39.4
Mounting Hole Spacing
Dimension MM INCH
Cable Length
PHYSICAL PARAMETERS
Module Weight (kg)G 22.0
Frame Material Anodized Aluminum
Glass (mm) 3.2 Tempered ARC glass
Connector S418 BizLink/Amphenol PV Connector
Cable length Tolerance - 2.5 mm + 52.5 mm
*(1,300 [51.2] option available upon request,
please contact your local sales representative
for more information)
Dimension tolerance range for:
A ±3 mm, B ±3 mm and C ±0.3 mm
H (BCC) 1,300 51.2
