SunEdison Silvantis P300 - Center Clamp Module Installation Illustrations; Module Clamp Drawings

Bolt Stack Details
Center Mount Option
8.0 APPENDIX

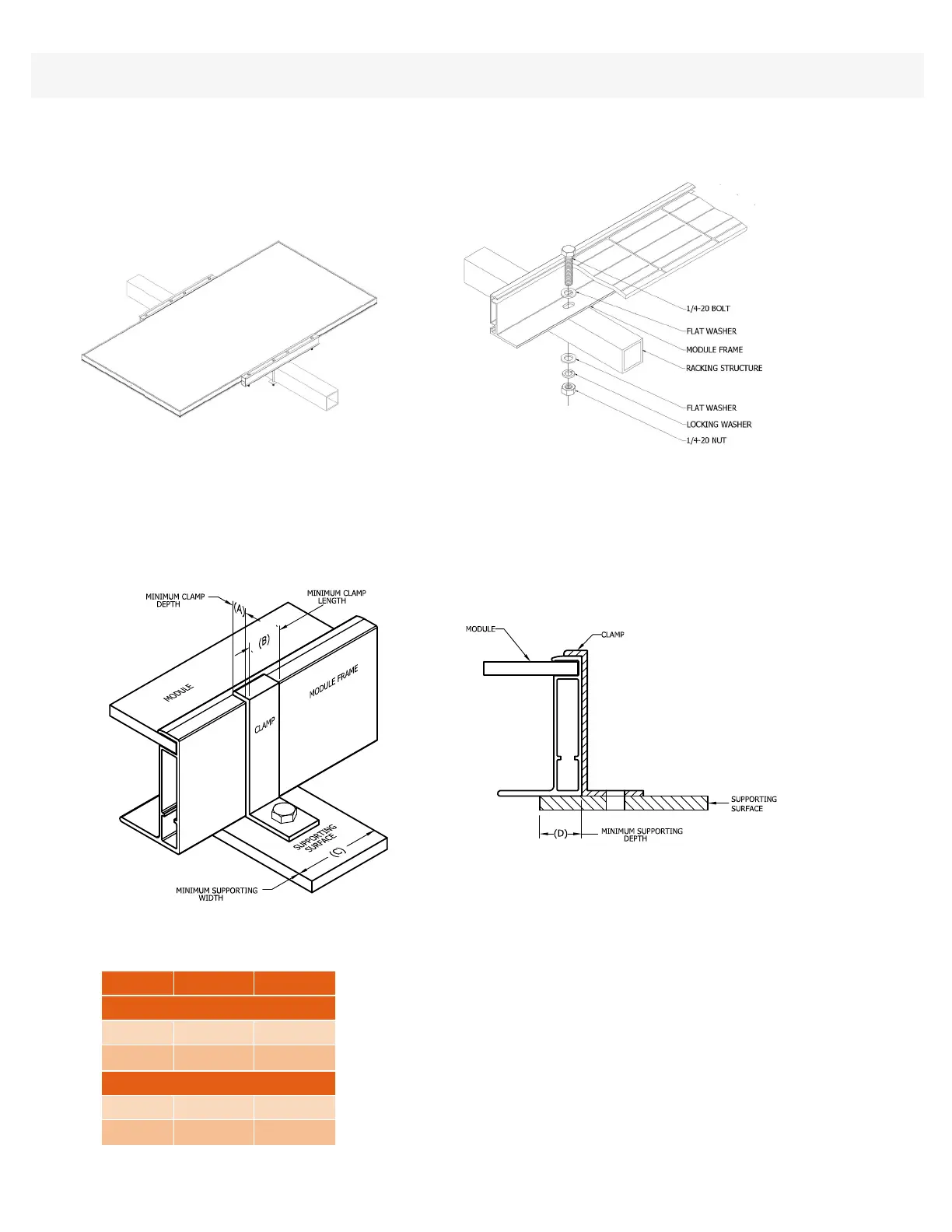

8.2 CENTER CLAMP MODULE INSTALLATION ILLUSTRATIONS
8.3 MODULE CLAMP DRAWINGS
16 of 17
A 6.35 0.3
B 38 1.5
Module Clip Dimensions
Dimension MM INCH
Minimum Support Dimensions
C 50 2.0
D 15 0.6
Installation Manual: SunEdison Silvantis P300 | M330/F330/D330
© Copyright 2014 SunEdison, Inc.
