Sunex Tools SX232B - Parts Breakdown

SX232B 3 Rev. 08/29/07
DESCRIPTION
PART
NO.
REF.
NO.
1-17 RS232B01A Motor Housing Assembly
19-30 RS232B02A Air Motor Assembly
29, 33-38 RS26403A Angle Head Assembly
18 RS232B18 Air Inlet
31 RS232B31 Connect Nut
32 RS26429 Clamp Nut
40 RS26437 1/4" Collet
41 RS26438 Collet Nut
42 RS26439 Wrench
43 RS26440 Wrench

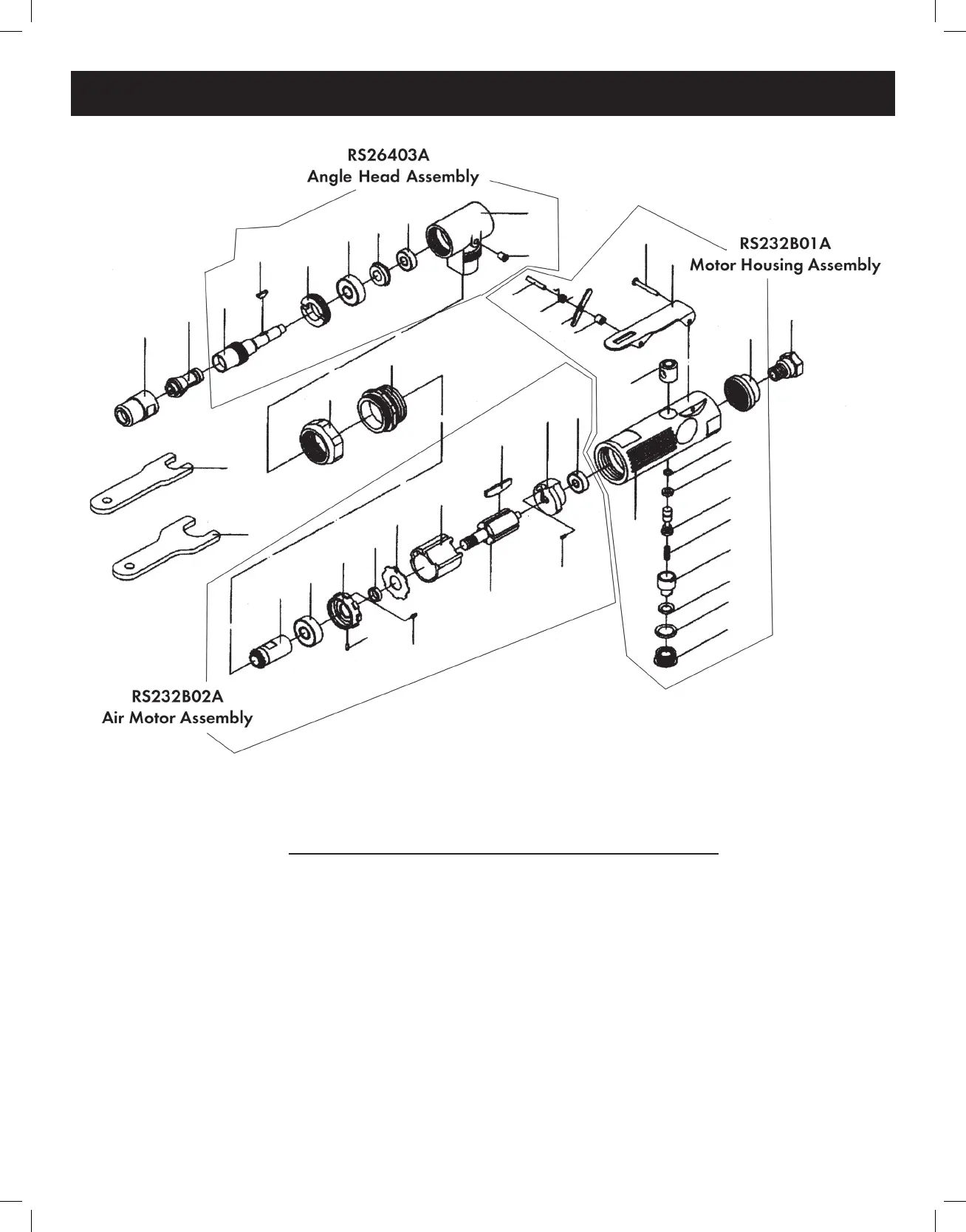

SX232B: 1/4" DR ANGLE DIE GRINDER
