If you are using a receiver which does
not have a subwoofer output or line-level
outputs (pre-outs), you can connect
its speaker outputs to the subwoofer’s
speaker-level inputs. The front
speakers can still be
connected to your
receiver.
The subwoofer’s
internal amplier
supplies the power
to reproduce the low
frequency range. It
receives a sample of
the signal going to
your front speak-
ers. (An insigni
cant
fraction of your
receiver’s
power is
transferred
to the
subwoofer).
There is no
need to use
the speaker-
level inputs
if you are
using a separate
preamplier/processor and a
power amplier. Such systems
are best connected using the
line-level inputs as shown in the
previous diagrams. However, if
you are using the line-level inputs
and there is a excessive amount
of noise or hum present, using the
speaker-level inputs may yield a
lower background noise level.
The subwoofer’s two negative
posts are joined internally (com-
mon-grounded). Your receiver/pow-
er amplifer must also be internally
common-grounded or you cannot
use this connection. Contact the
manufacturer of your receiver to make
sure its outputs are common grounded.

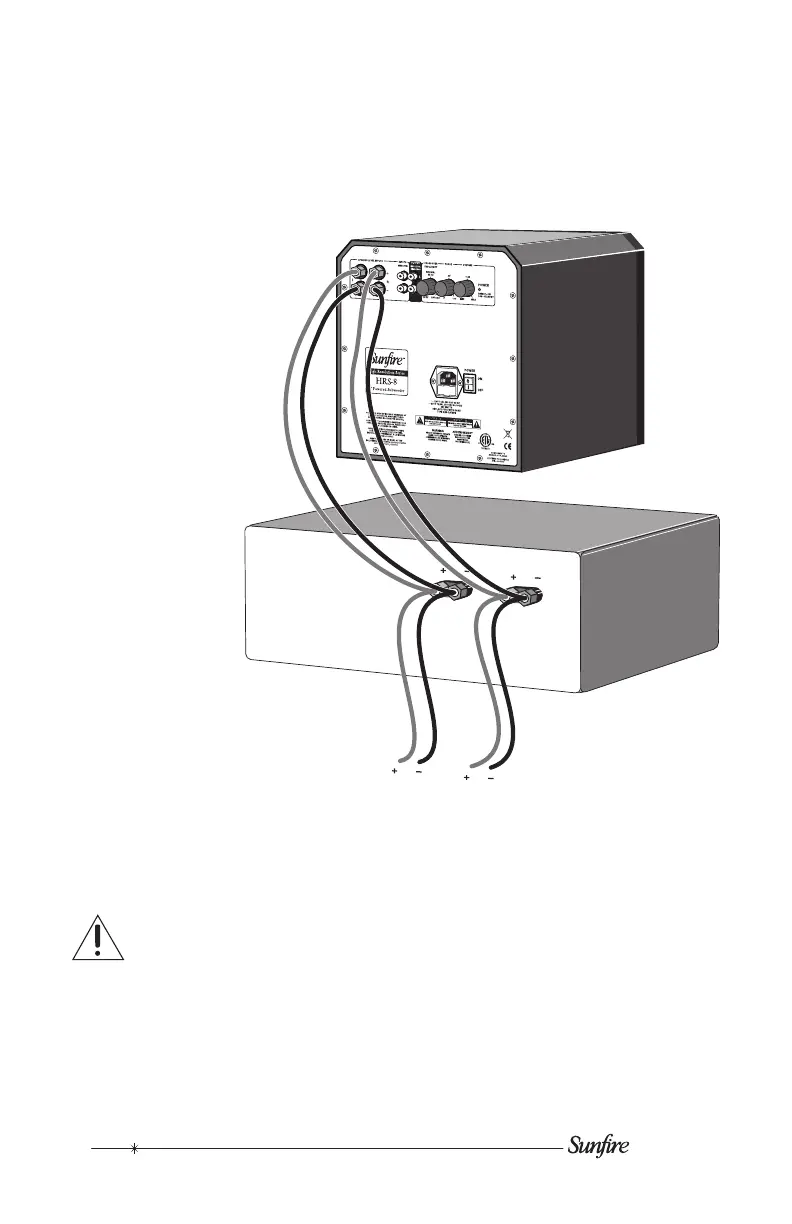

Using the speaker-level inputs
TO FRONT SPEAKERS
L
R
RECEIVER
MAIN
OUTPUTS
