Sunfire SF80 - Wiring Diagram (High Voltage)

29
+1 (855) 251-1649
sunfireheaters.com

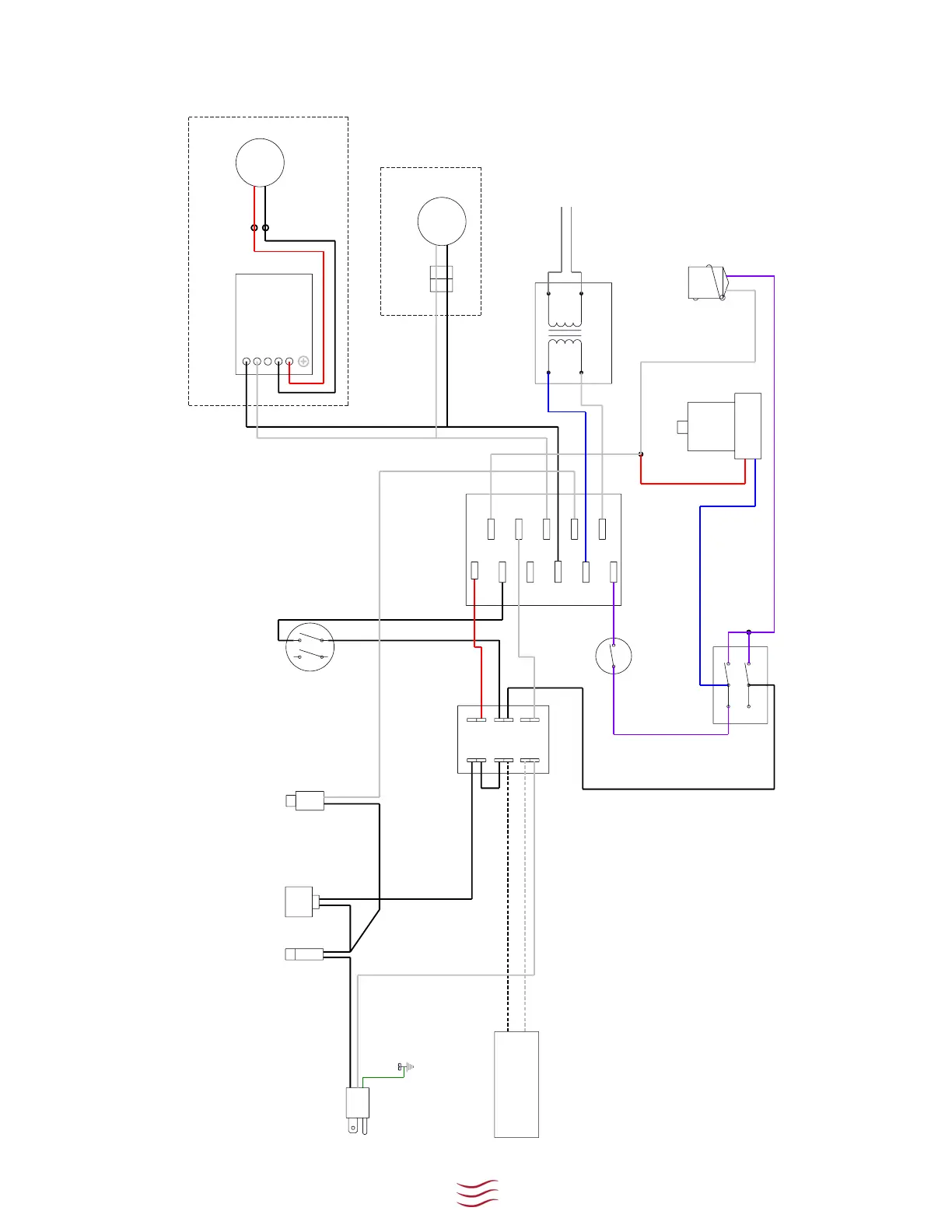

WIRING DIAGRAM (HIGH VOLTAGE):
CORD/
PLUG
PRIMARY CONTROL
M
IGNITION
TRANSFORMER
SOLENOID
VALVE
(BLEED)
BLOWER
MOTOR
WHT
BLK
ITEM: 81011647 (Rev A) - WIRING DIAGRAM, SF-120 and SF-80 RELEASED: 05/31/2023 SHEET: 1/2
WHT
L1
LIM-IN
HTR
ORG
BLU
120V BURNER WIRING
GROUND
SCREW
FUSE
(8 AMP)
PRP
WHT WHT WHT WHT
POWER
LIGHT
(AMBER)
TIP
SWITCH
BLK
PUMP
ON/OFF
SWITCH
ON
(MOM)
PRIMING
SWITCH
IGNITION
CABLES
(TO ELECTRODES)
FILTER HEATER
(OPTIONAL)
PRESSURE
SWITCH
123
6 5 4
12V DC POWER
SUPPLY
L1
L
N
-V
G
+V
VOLTAGE ADJUSTMENT
M
BLOWER
MOTOR
PLUG
SF-80 ONLY
SF-120 ONLY
