SunFounder GalaxyRVR Kit for Arduino, Release 1.0
3.9.1 Objective
• Understand the working principles and applications of RGB LED strips.
• Learn how to use Arduino programming to control the color and brightness of RGB LED strips.
• Practice installing and using RGB LED strips on the Mars Rover model as indicators.
3.9.2 Materials Needed

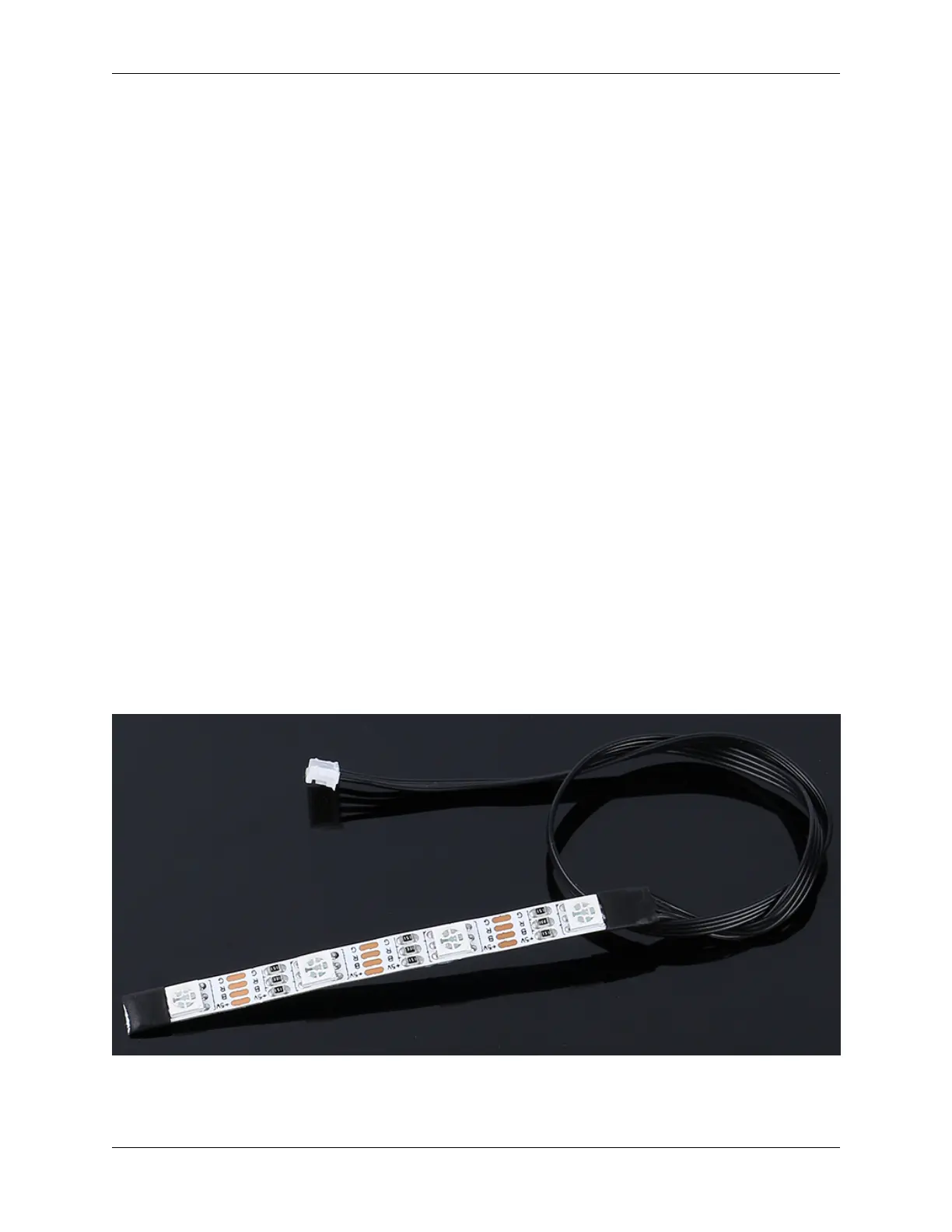

• RGB LED Strips (each strip has 8 RGB LEDs, a total of two strips)
• Basic tools and accessories (e.g. screwdriver, screws, wires etc.)
• Mars Rover Model (Equipped with rocker-bogie system, main boards, motors, obstacle avoidance module, ultra-
sonic module)
• USB Cable
• Arduino IDE
• Computer
3.9.3 Course Steps
Step 1: Install the RGB LED Strips on the Mars Rover
Now, fix the two RGB light strips to the bottom sides of the car. They are controlled by a single set of pins, so there is
no need to differentiate during the wiring process.
Step 2: Explore the Magic of Light with RGB LED Strips
Do you remember the last time you saw a rainbow? How it made the sky colorful with seven vibrant hues? How would
you like to create your own rainbow, right here in our little Martian rover? Let’s dive into the magic of light with RGB
LED strips!
You might notice that our RGB LED Strip has four pins labeled as follows:
3.9. Lesson 9: Lighting the Way with RGB LED Strips 71
