high quality and maximum ease of use, and which allow the barrier
in 7*24 hours non-stop usage.
3.4 SPEED ADJUSTABLE
Our DC servo barrier gate allows you to set opening and closing
speed according to requirements. Shorter arm, the faster speed can
be set.
3.5 AUTO-REVERSE FUNCTION
When arm falling and meets obstacles, arm will auto reverse to
prevent further damages.
3.6 MULTIPLE INTERFACES
3.6.1 Wire Control Signal Input(open&close&stop)
3.6.2 Infrared Photocells
3.6.3 Loop Detector
3.6.4 R&G Light signal (Up&Down Limit signal output optional),
can use for counting purpose also
3.6.5 Arm Presence Detection(Optional)
3.6.6 RS485 Communication(Optional)
3.6.7 More If Required
3.7 EASY INTEGRATION
Access Reader or Push button or remote controller can be used to
trigger the barrier gate to open via a simply dry contact signal.
After delay timer elapsed, barrier gate will close automatically by
itself in a certain time(optional function)
3.8 USER FRIENDLY
Motorized arms provide comfortable passage while maintaining a
high level and high density of car flow management, such as in toll
gate.
3.10 AUTO-RECOVERY
When power off, barrier arm can be lifted up by manual for a free
exit. When power supply is restored, Barrier gate will
automatically return to close position.
3.11 Auto Testing Mode
Control board can set auto testing mode

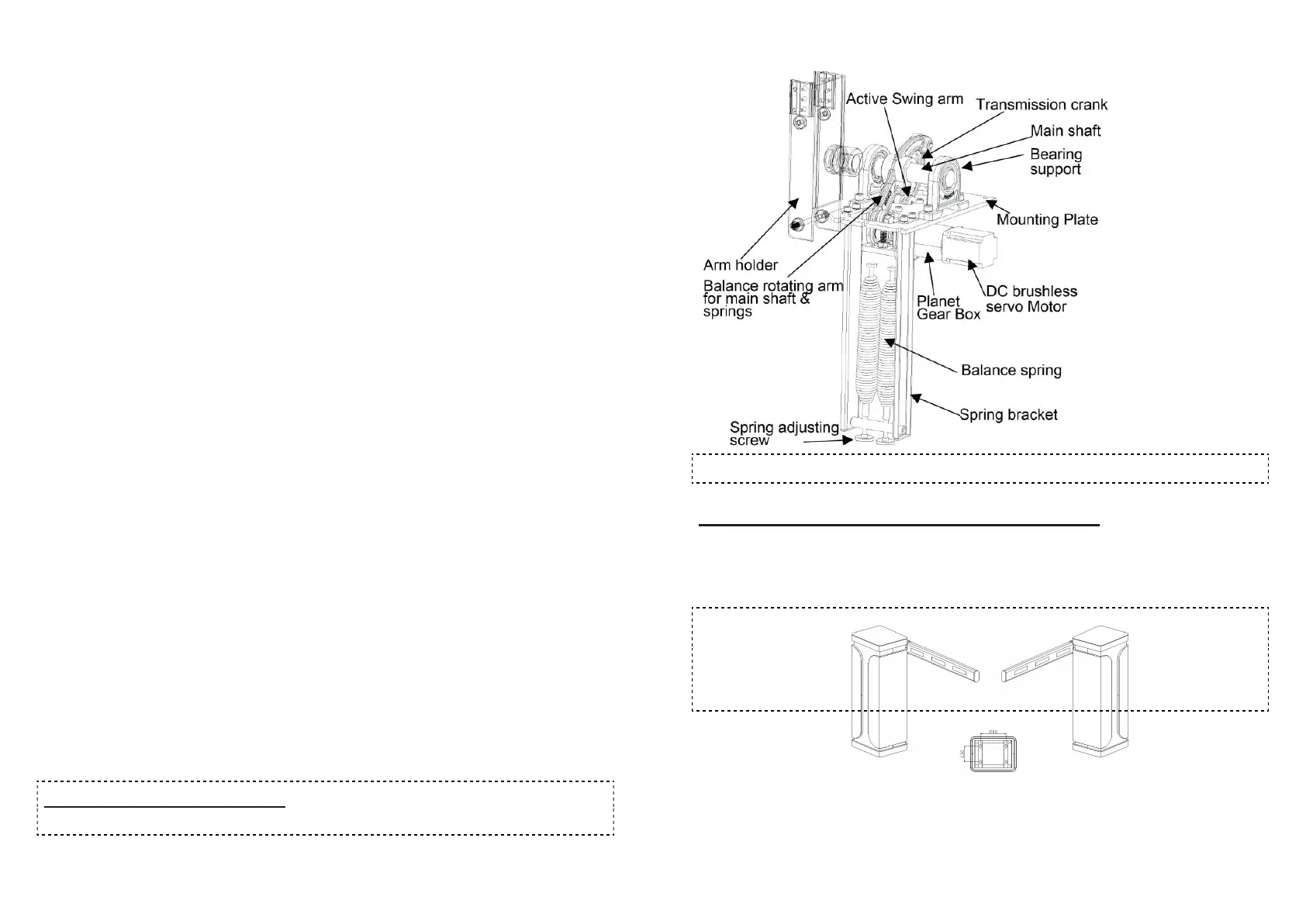

4.Mechanism Structure
(Figure 1)
5. Installation Direction Definition
When placing the order, please confirm “left-installed”
or “right- installed”. Figures as below:
Left-(installed) Right-(installed)
Cabinet fixed Cabinet fixed
at the left of entrance at the right of entrance
(Figure 2)
