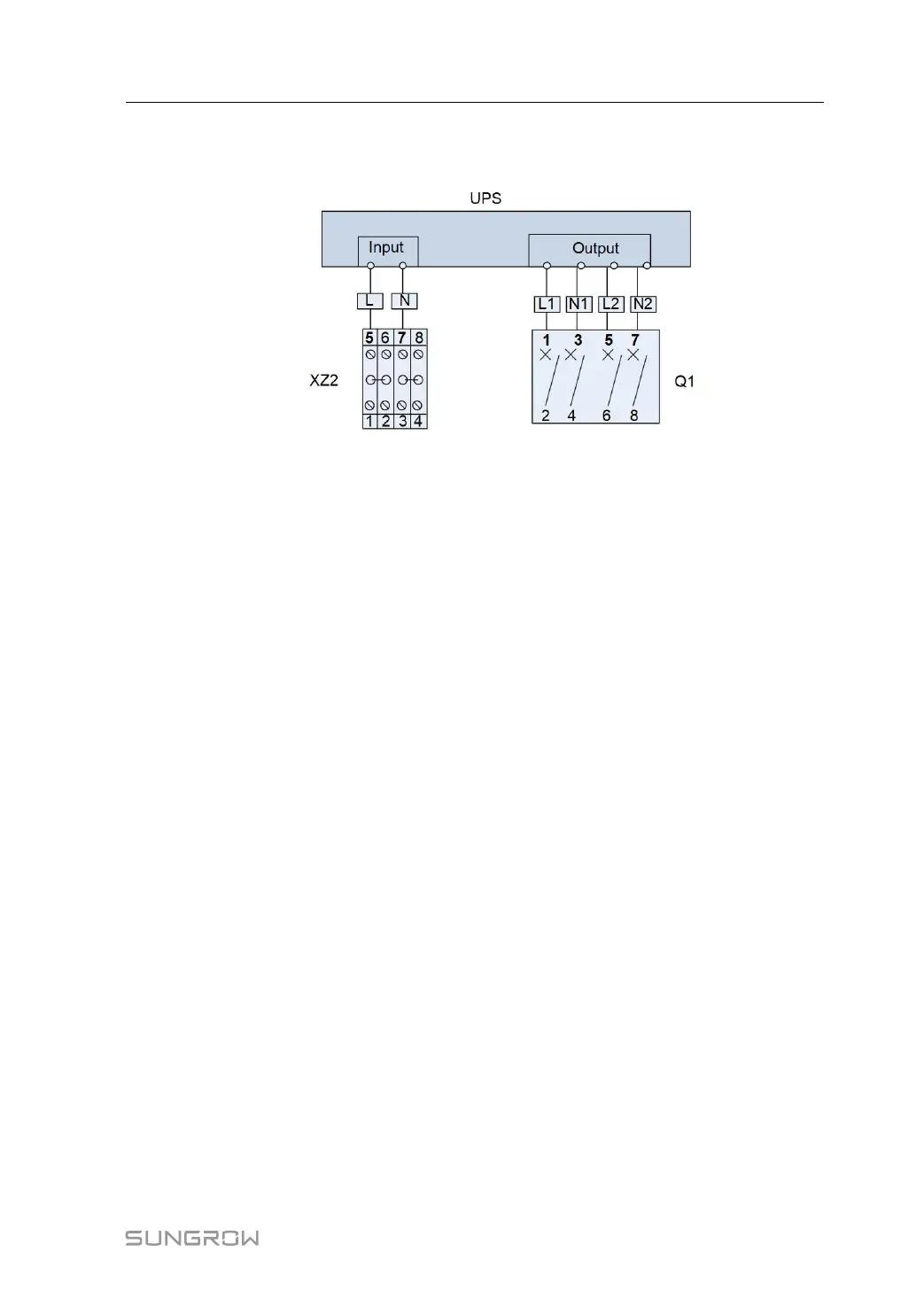

Connect the L phase of the UPS output cable to Q1–1, Q1–5, and the N phase of the output
cable to Q1–3, Q1–7.
- - End
5.4 Closing the Cable Entry
After finishing wiring, perform a thorough check, and seal the cable entries after ensuring
that all cables are correctly in place. Use fireproof mud to seal the gap around the cable
entry to prevent rodents from entering.
