The above dimensions are all recommended values.
If the reserved space is small due to site constraints, the maintenance area must
be taken into account.
4.2 Floor Requirements
The device should be installed on cement foundation with flame resistance material or steel
channel support. The foundation must be solid and safe enough to position the device. It
must be able to provide the load-carrying capacity necessary to cope with the weight of the
device.
During foundation construction, lay cable trench according to the whole situation of the site
and the cable routing method on the device bottom.
Drill holes on the ground. The positions of the holes should be exactly the same with the
holes on the device base to connect the device firmly to the foundation.

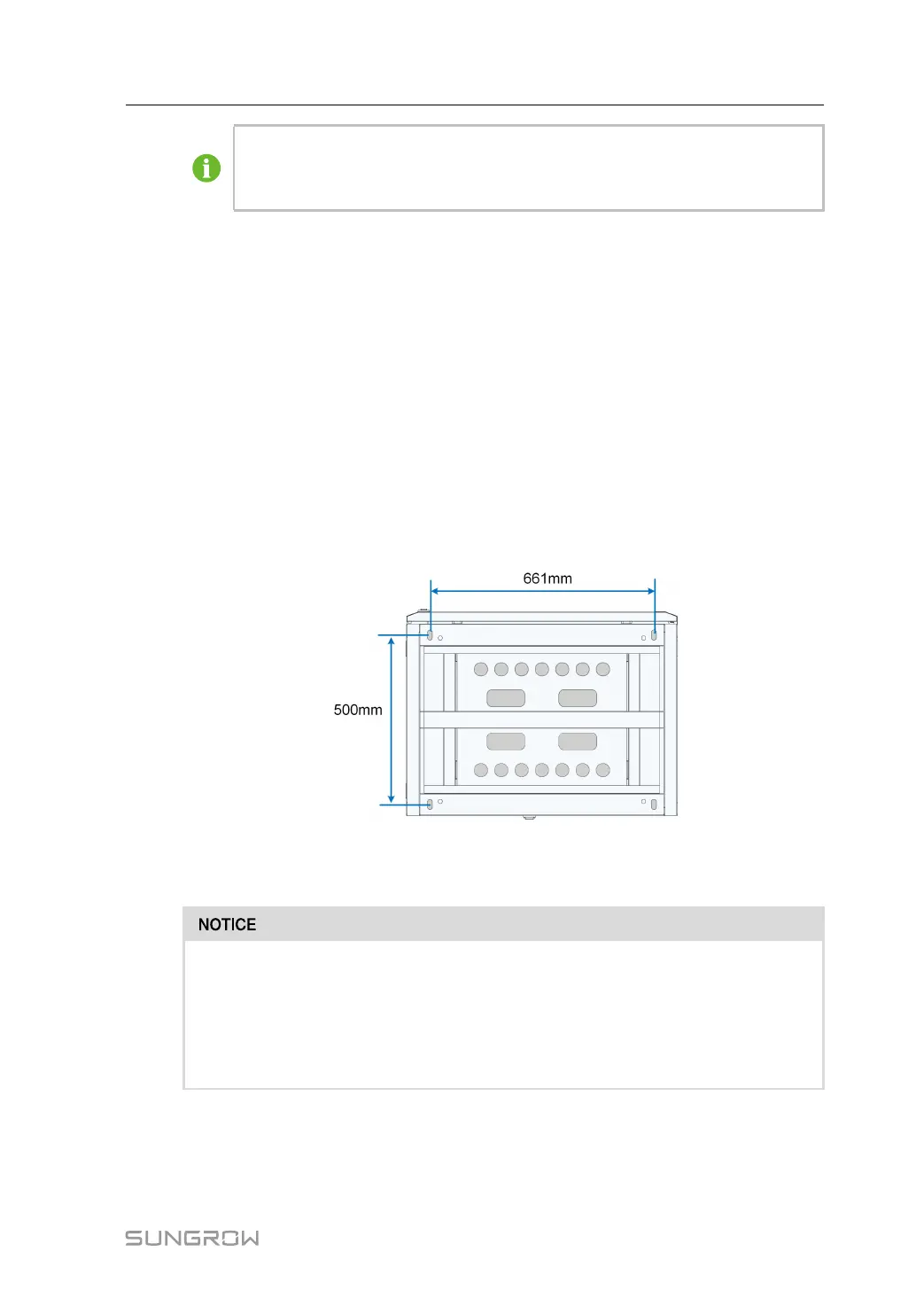

There are 4 positioning holes on the bottom of the device as shown in the following figure.
M12 bolts are recommended to fix the device pedestal to the ground.
4.3 Installation Methods
• Do not perform any other operations inside or on top of the device that are not
related to the installation.
• Make sure the environment around and inside the device is clean and tidy.
• The relevant safety precautions in this manual should be observed during
installation.
The device should be installed in a location that is easy to maintain and operate on a daily
basis.
Checking before fixing
Installation Manual 4 Mechanical Mounting
