Step 5 Fix the screw or bolt on the installation surface, where the screw protrudes from the wall sur-
face by about 5mm.Hang the Logger1000 onto the screws on the concrete wall or metal sur-
face via the wall-mounting holes on the back of Logger1000.
Step 6 Check and ensure that the Logger1000 is firmly installed.
- - End
4.3.2 Guide Rail-Mounted Installation

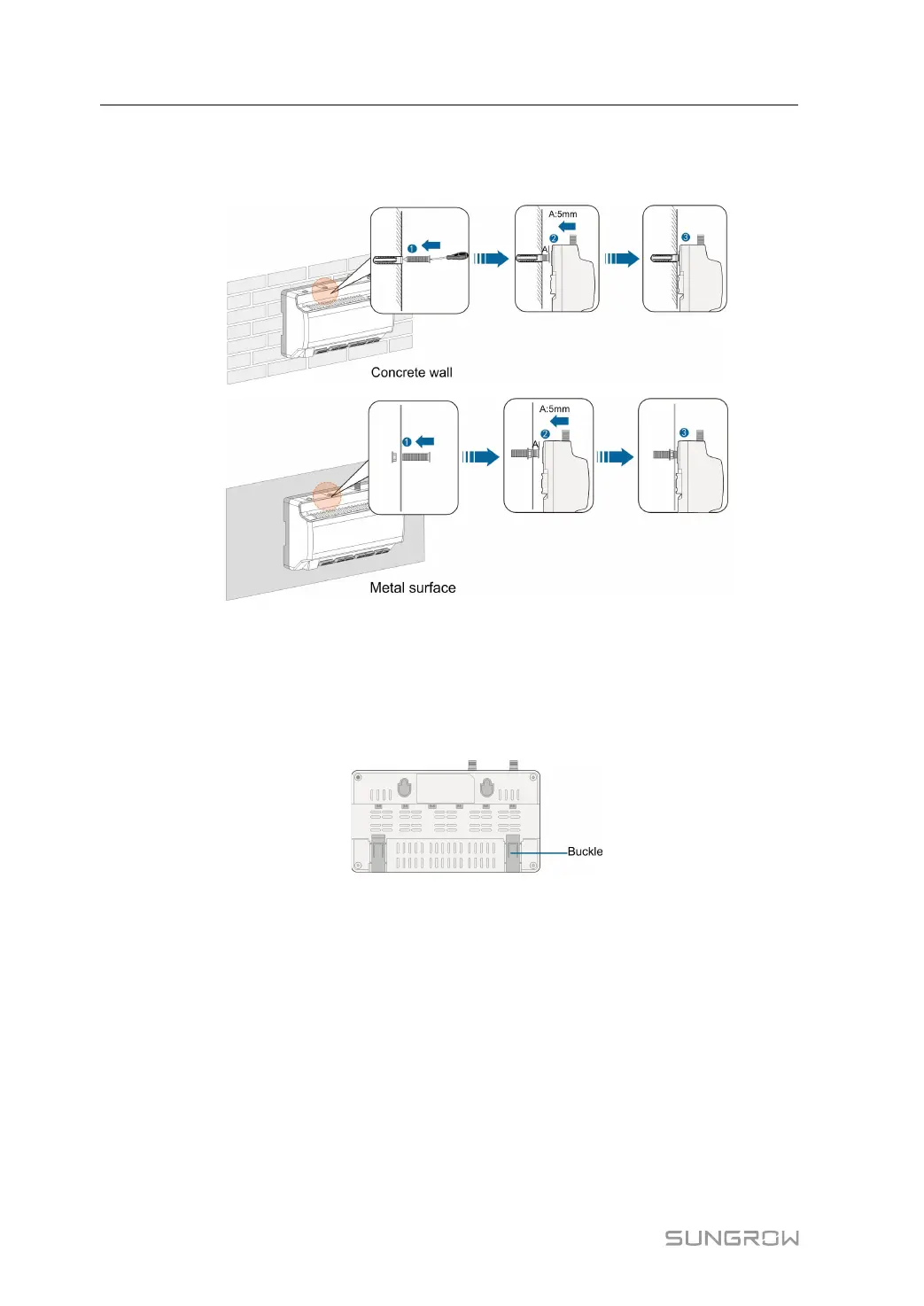

Secure the Logger1000 via the rail buckles (as shown in the figure below) on the back of it.
Step 1 Install and secure the guide rail at the appropriate location.
4 Mechanical Mounting User Manual
