Smart Energy Meter through RS485 port or Ethernet port. The recommended Smart Energy
Meter types are as follows:
No. Manufacture
Type Protocol Type Wiring
1 Sfere PD194E/Z
Modbus RTU " RS485 Connection"
2 Acrel PZ96-E3
3 Acrel DTSD1352
4 Weidmüller EM 610
5 SUNGROW DTSU666
6 Schneider IEM3255
7 Janitza
UMG604，
UMG104
Modbus RTU
Modbus TCP
" RS485 Connection"
" Ethernet
Connection"
RS485 Connection

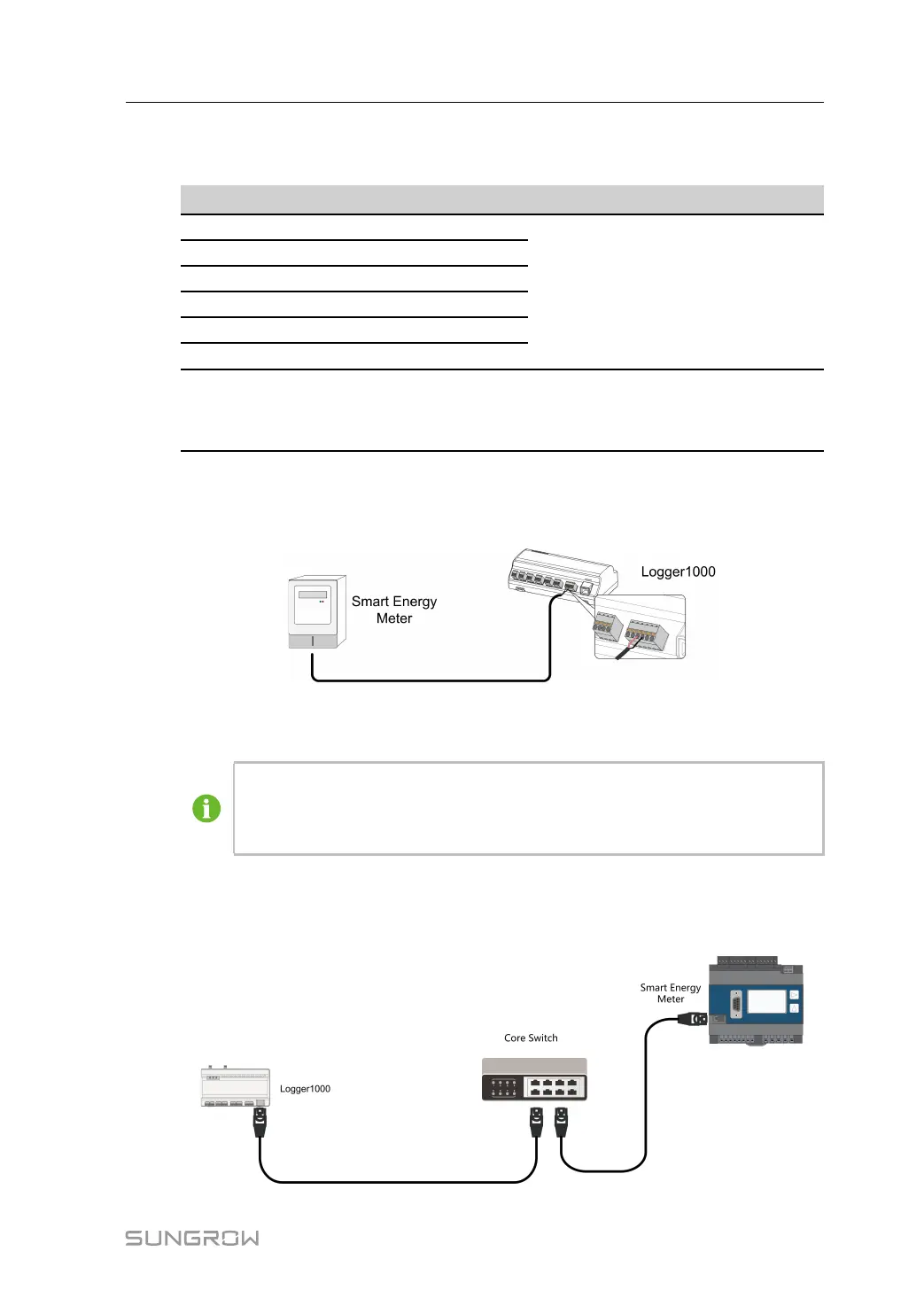

The following figure shows the connection between the Logger1000 and the Smart Energy
Meter.
Connect the communication cable led from the Smart Energy Meter to the RS485 port of the
Logger1000.
All devices on each RS485 bus support the same communication protocol.
If using Weidmüller or Janitza meters, it is necessary to connect the RS485 A/B
port of the meter to the RS485 B/A port of the Logger1000.
Ethernet Connection
The following figure shows the connection between the Logger1000 and the Smart Energy
Meter.
