24

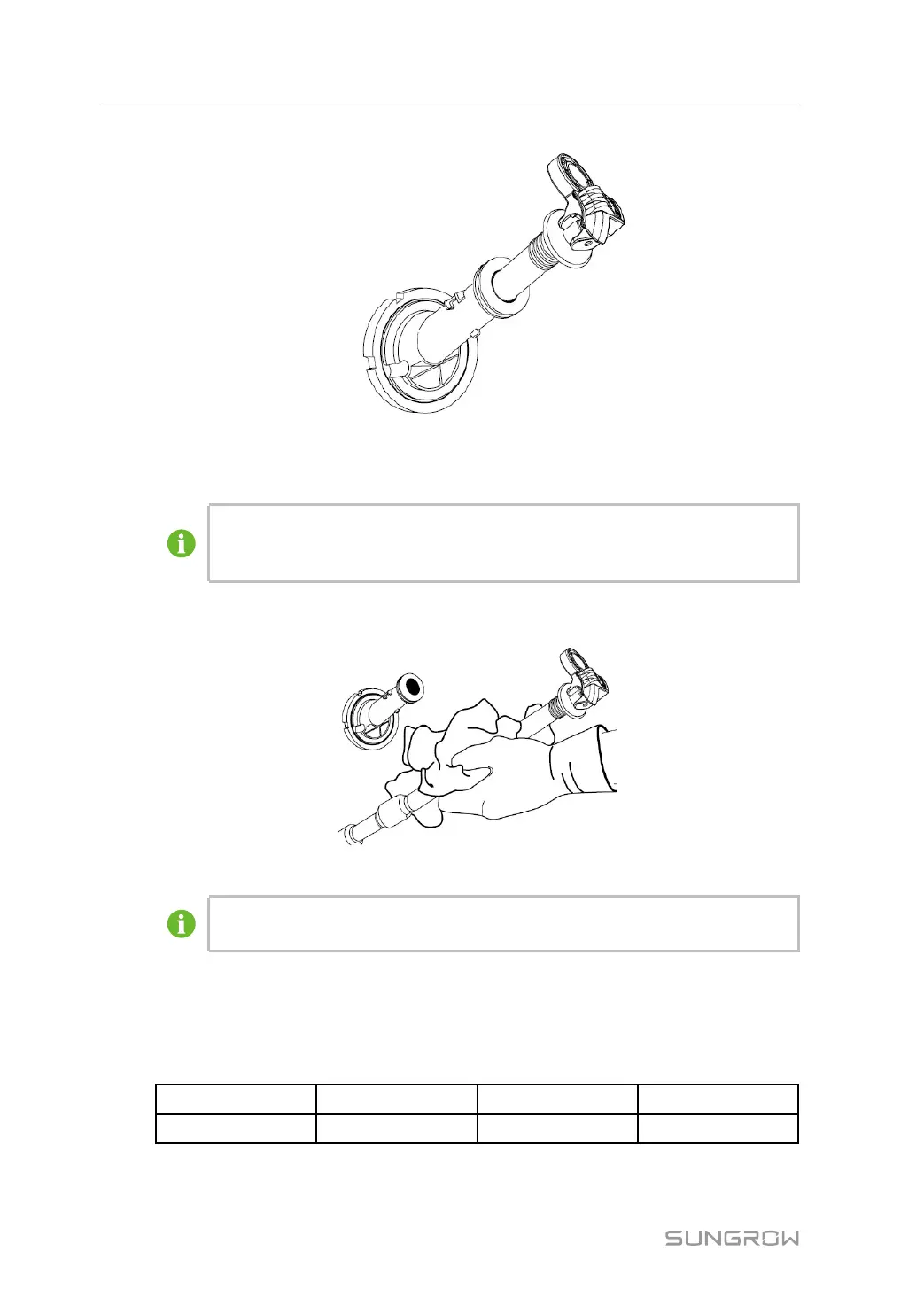

figure 8-5 Draw fuse holder out 6 to 8 inches (152 to 203 mm)
Step 4 Remove fuse holder from Bay-O-Net housing.
If a drip guard (metal or plastic) is present, it is recommended to rest the Bay- O-
Net holder on the drip guard for 30 seconds to 1 minute to minimize the potential
of oil spillage onto rubber terminators.
Wipe off fuse cartridge holder and fuse cartridge using a clean cloth
figure 8-6 Remove fuse holder from Bay-O-Net housing and wipe clean of insulating fluid
If any fluid is coming out of Bay-O-Net Assembly, pull pressure relief valve again
to equalize pressure inside the tank. (Refer to Step 1 for instructions.)
- - End
8.3.3 Replace Fuse Link
For all Eaton's Cooper Power series Bay-O-Net fuses
12kV 12.47kV 13.2kV 13.8kV
21.6kV 23kV 24.94kV 34.5kV
For the above listed integral cartridge fuses follow Step 6 and then tighten new cartridge/
fuse/end plug against fuse holder using 50-70 in-lbs (5.65-7.9 Nm) of torque.
8 Components and Accessories User Manual
