5.9 Meter Connection
In a single inverter scenario, the Meter (A2, B2) terminals are designed to connect to the
Smart Energy Meter for the feed-in power function. The export control functionality has not
been tested to AS/NZS 4777.2:2020.
The energy meter is mainly used to detect the direction and magnitude of the cur-
rent. And the energy meter data may not be used for billing purposes.

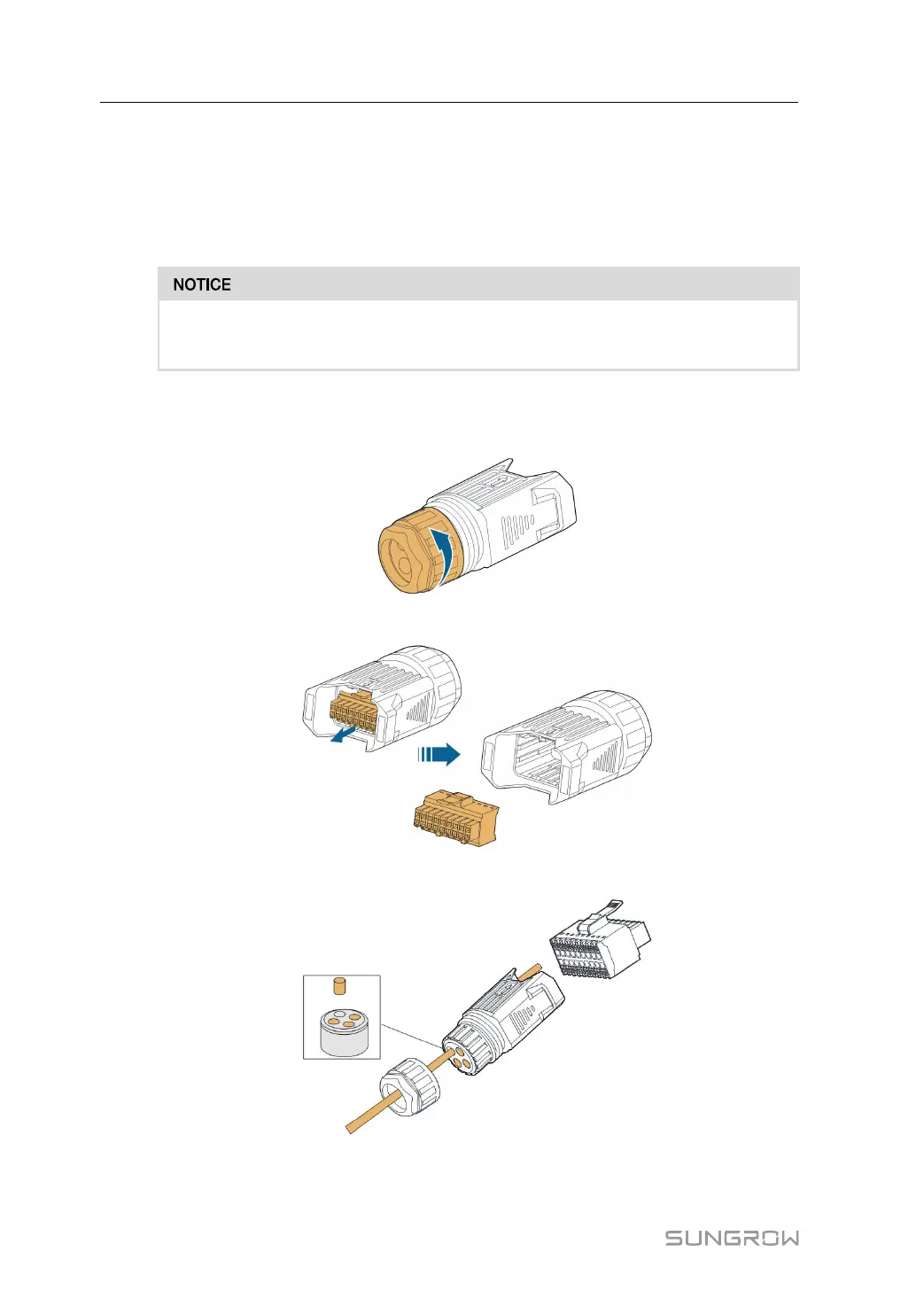

5.9.1 Assembling the COM Connector
step 1 Unscrew the swivel nut from the connector.
step 2 Take out the terminal block.
step 3 Remove the seal and lead the cable through the cable gland.
step 4 Remove the cable jacket and strip the wire insulation.
