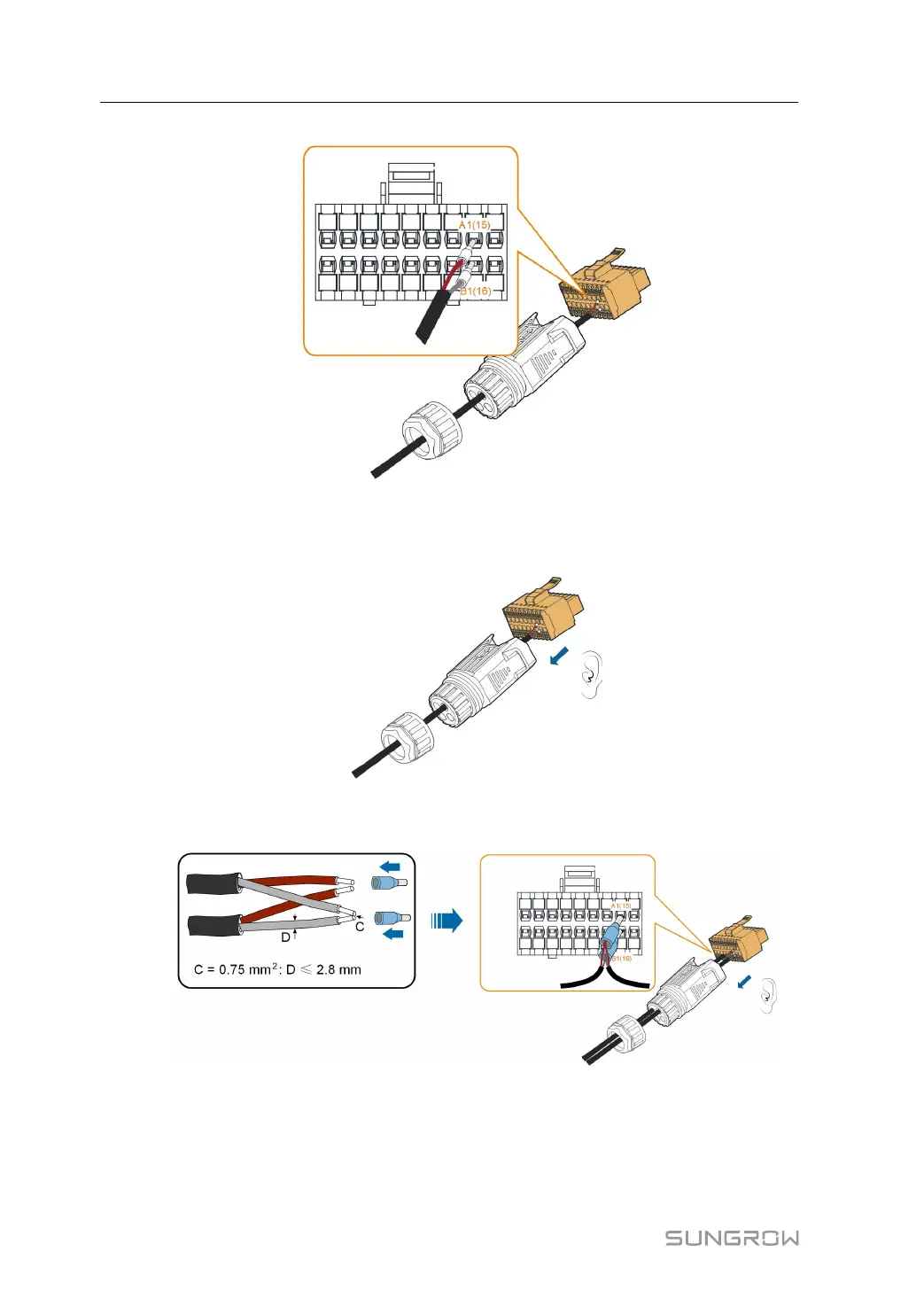

figure 5-7 A1, B1 connection
step 7 Ensure that the wires are securely in place by slightly pulling them and insert the terminal
plug into the housing until there is an audible click.
step 8 For RS485 daisy chain: Crimp two wires A to a two-wire core end terminal and two wires B
to another terminal. Plug the terminals to A1 and B1 respectively.
figure 5-8 RS485 daisy chain connection
step 9 Fasten the swivel nut.
5 Electrical Connection User Manual
