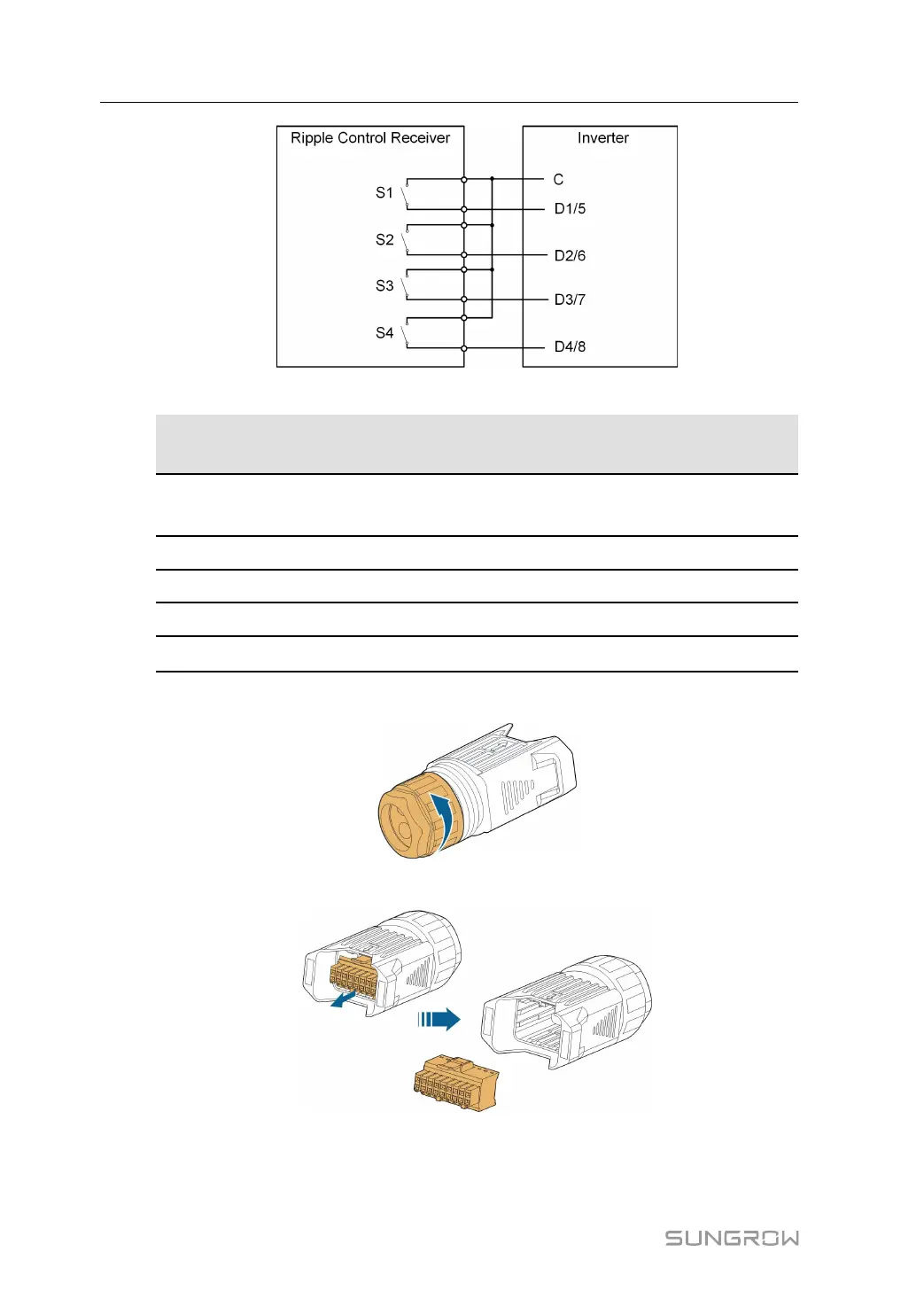

table 5-5 Method of Asserting DI Mode
S-
1
S2 S3 S4 Switch Operation on
External RCR
Output power (in % of the Rated AC
output power)
0 0 0 0 None
100 % (configurable according to
need)
1 0 0 0 Close S1 100 %
0 1 0 0 Close S2 60 %
0 0 1 0 Close S3 30 %
1 1 0 0 Close S1 and S2
0 % (disconnect from grid)
step 1 Unscrew the swivel nut from the connector.
step 2 Take out the terminal block.
step 3 Remove the seal and lead the cable through the cable gland.
