38
However if an external residual current device (RCD) (type A is recommended) is mandatory,
the switch must be triggered at a residual current of 300 mA (recommended). RCD of other
specifications can also be used according to local standard.
In Australia, a RCD is not required according to the local standard AS3000-2018 when either
of the following installation methods is adopted if the PV array capacitance to ground is large
(such as a tin roof):
Use heavy duty conduits (such as metal bushing) when run PV and AC cables through
Cavity walls.
Route the PV and AC cables through pipes (PVC or metal tubing), lay the cables and in-
stall them.
Multiple Inverters in parallel Connection
If multiple inverters are connected in parallel to the grid, ensure that the total number of par-
allel inverters does not exceed 5. Otherwise, please contact SUNGROW for technical
scheme.
5.5.2 Assembling the AC Connector (< 15 kW)
The AC terminal block is on the bottom side of the inverter. AC connection is the three-
phase-four-wire grid + PE connection (L1, L2, L3, N, and PE).

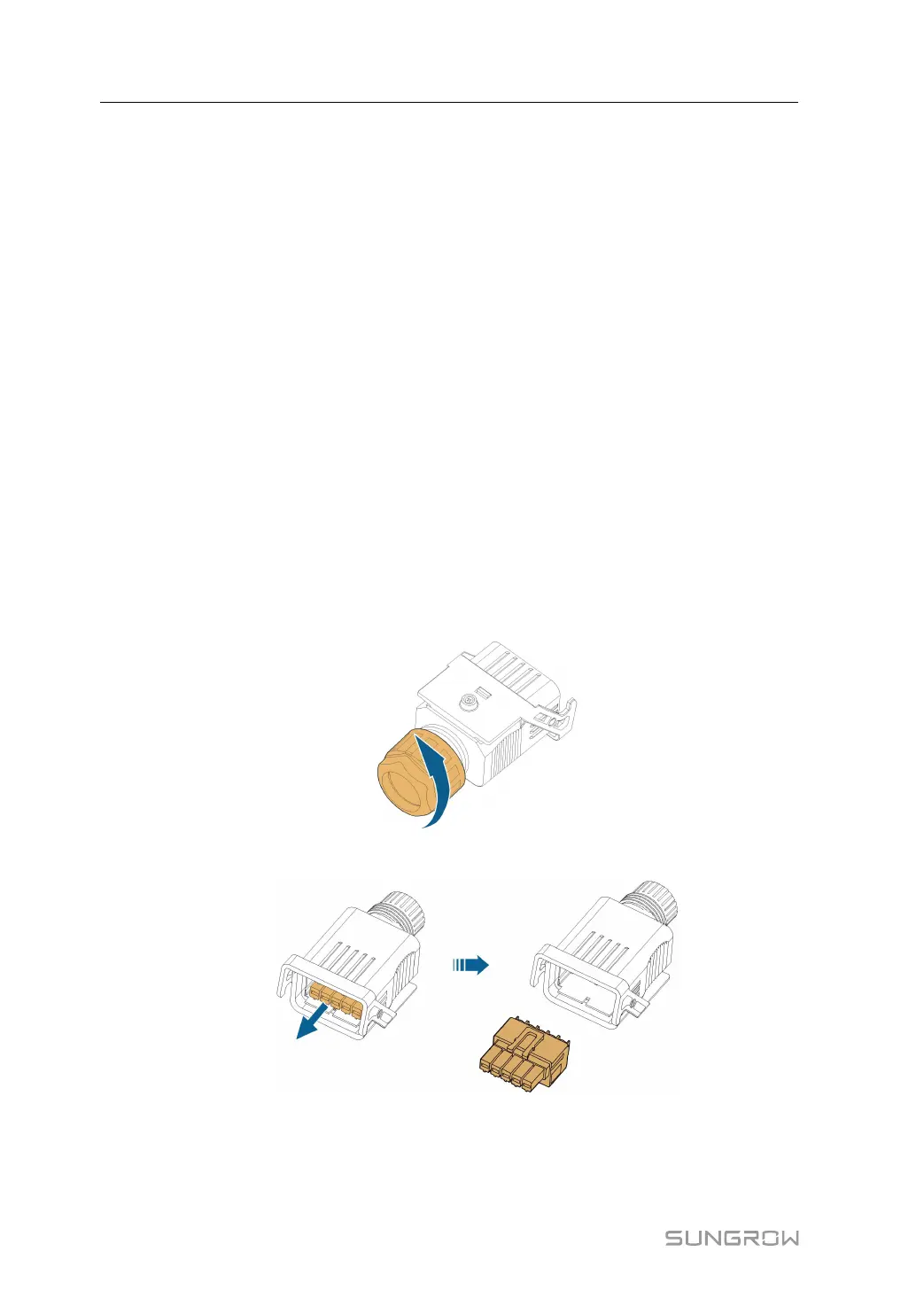

step 1 Unscrew the swivel nut of the AC connector.
step 2 Take out the spring-loaded terminal from the housing.
step 3 Thread the AC cable of appropriate length through the swivel nut, the sealing ring and the
housing.
5 Electrical Connection User Manual
