SUNIX 8-port RS-422/485 Card builds DB62F connector on board.

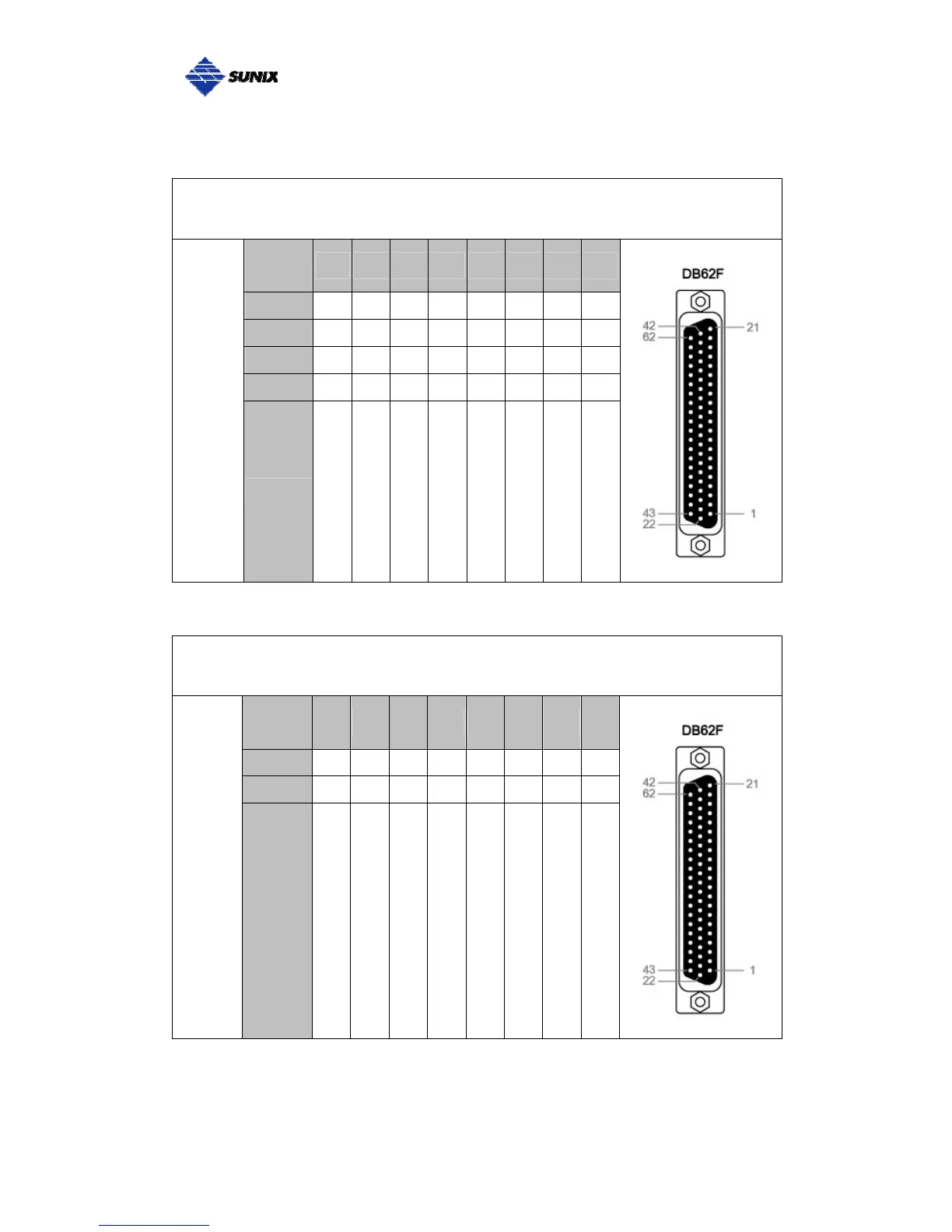

SUNIX DB62 Female 8 ports Serial Communication Boards Pin Assignment
Port
Signal
1 2 3 4 5 6 7 8
Tx+ 44 47 49 52 54 57 60 62
Tx- 24 45 8 50 11 55 58 21
Rx+ 23 26 28 31 34 36 39 41
Rx- 2 5 7 10 13 15 18 20
RS-422
or
4-Wire
RS-485
GND
GND GND GND GND GND GND GND GND
SUNIX DB62 Female 8 ports Serial Communication Boards Pin Assignment
Port
Signal
1 2 3 4 5 6 7 8
Tx+ 44 47 49 52 54 57 60 62
Tx- 24 45 8 50 11 55 58 21
2-Wire
RS-485
GND
GND GND GND GND GND GND GND GND
