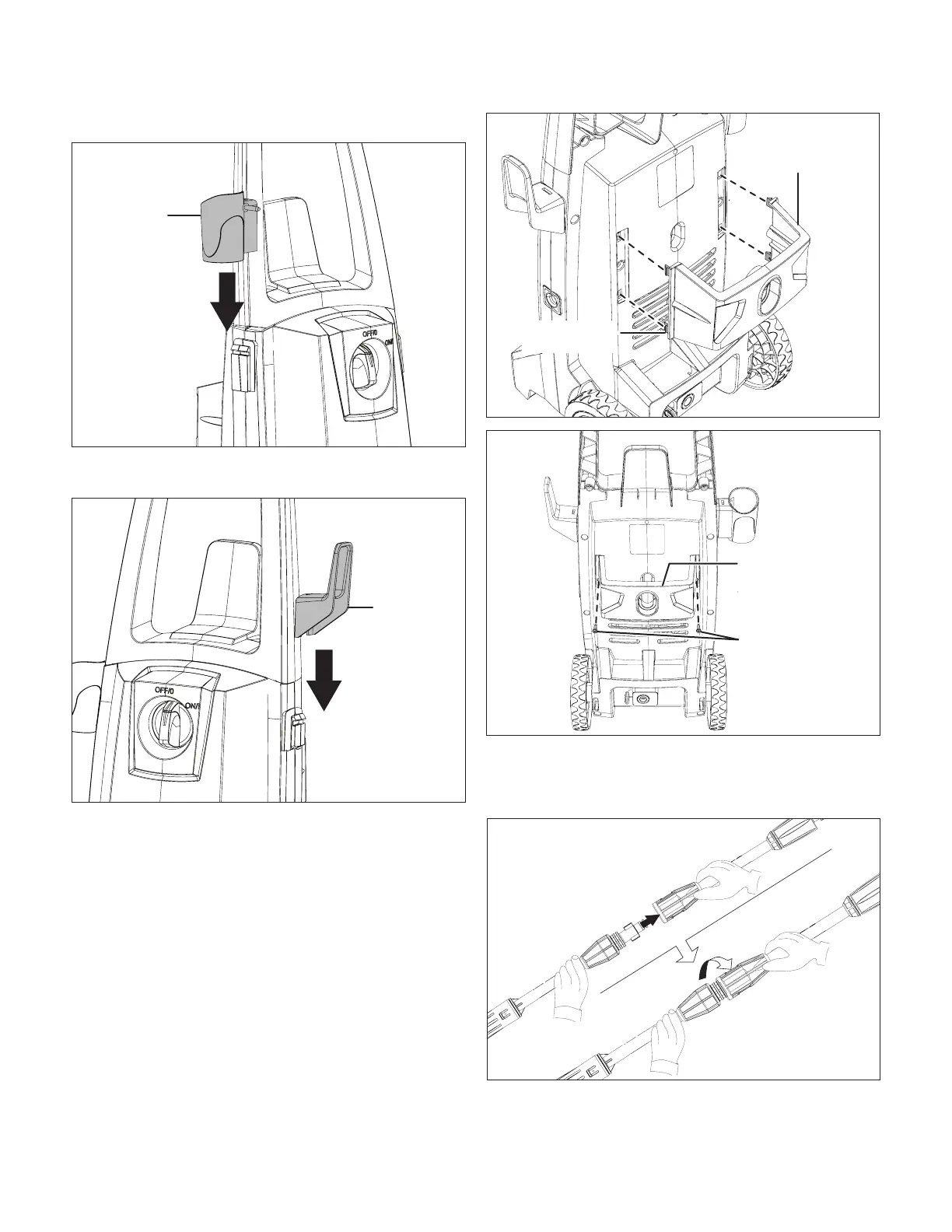

3. Slide the trigger gun holder into position (Fig. 3).
4. Slide the hose/cord holder into position (Fig. 4).
5. Fit the 4 small tabs on the spray wand/gun rear
compartment into the holes in the back of the machine.
Push inside until the rear compartment clicks in. Fix the
assembly with the two small Phillips head screws
(Figs. 5 – 6).
6. Fit the two pieces of the spray wand assembly together
and rotate it until the two parts are completely locked
(Fig. 7).
Fig. 3
Trigger gun
holder
Fig. 4
Hose/
cord holder
Fig. 5
Spray wand/gun
rear compartment
Insert the tab
into the hole
Fig. 6
Spray wand gun
rear compartment
Small Phillips head
screws
Fig. 7
