Know Your Electric Chain Saw

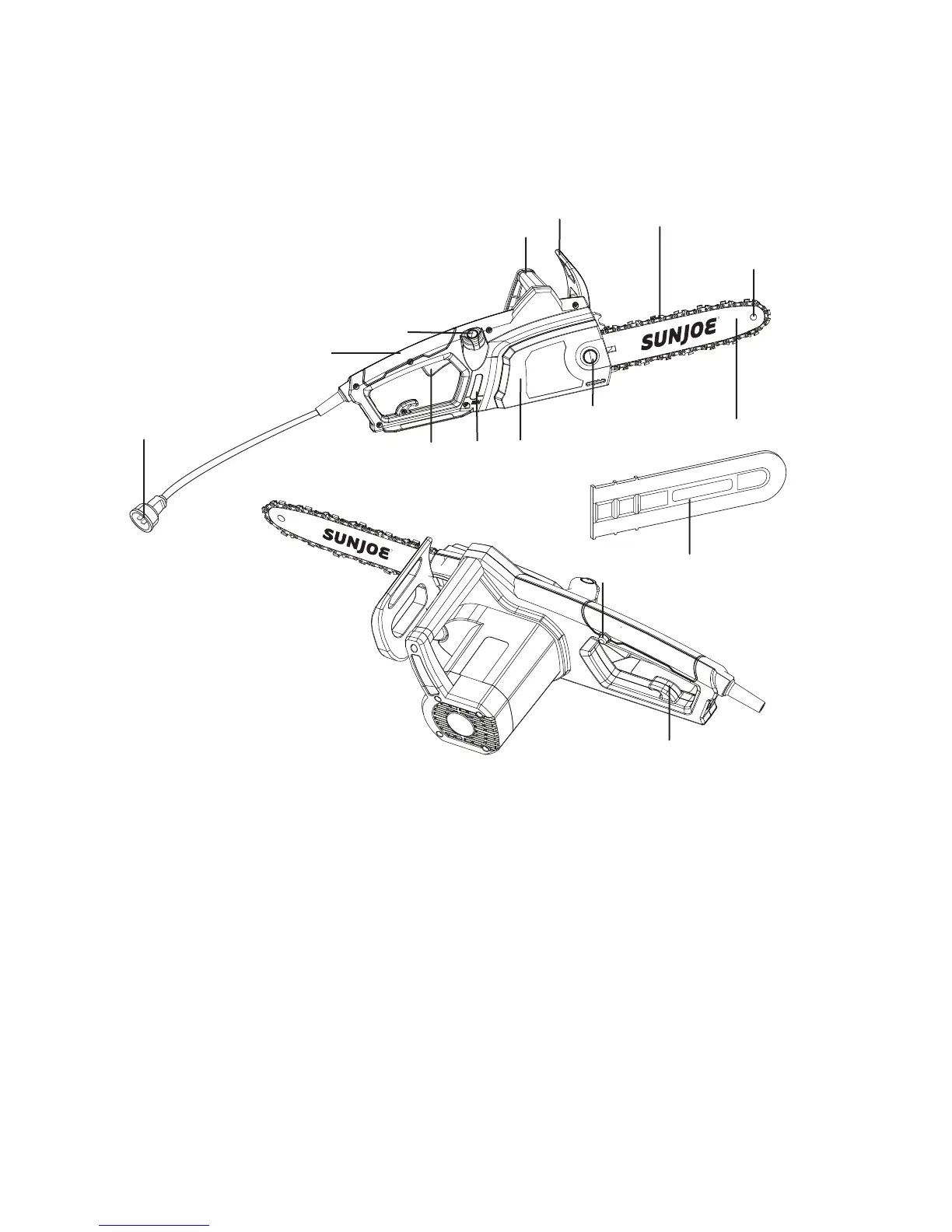

Read the owner’s manual and safety rules carefully before operating your electric chain saw. Compare the illustration
below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this
manual for future reference.
7
Technical Data
Rated Voltage 120 V ~ 60 Hz
Power 14 A
No Load Speed 8000 rpm
Bar/Chain Length 18 in. (45.7 cm)
Cutting Thickness Max: 17.5 in. (44.5 cm)
Recommended: 16.5 in. (42 cm)
Oil Tank Capacity 3 oz (90 ml)
Chain Speed 47.6 ft/s (14.5 m/s)
Weight 9.7 lbs (4.4 kg)
1. Appliance cord
2. Rear handle
3. Oil tank cap
4. Front handle
5. Safety chain brake lever
6. 18 in. cutting chain
7. Guide bar nose sprocket
8. 18 in. guide bar
9. End cover nut with decorative cap
10. Sprocket/chain end cover
11. Oil level indicator window
12. Trigger switch
13. Safety lock button
14. Extension cord restraint hook
15. Cutting bar sheath
R
R
4
5
13
15
14
6
7
9
101112
8
1
2
3
