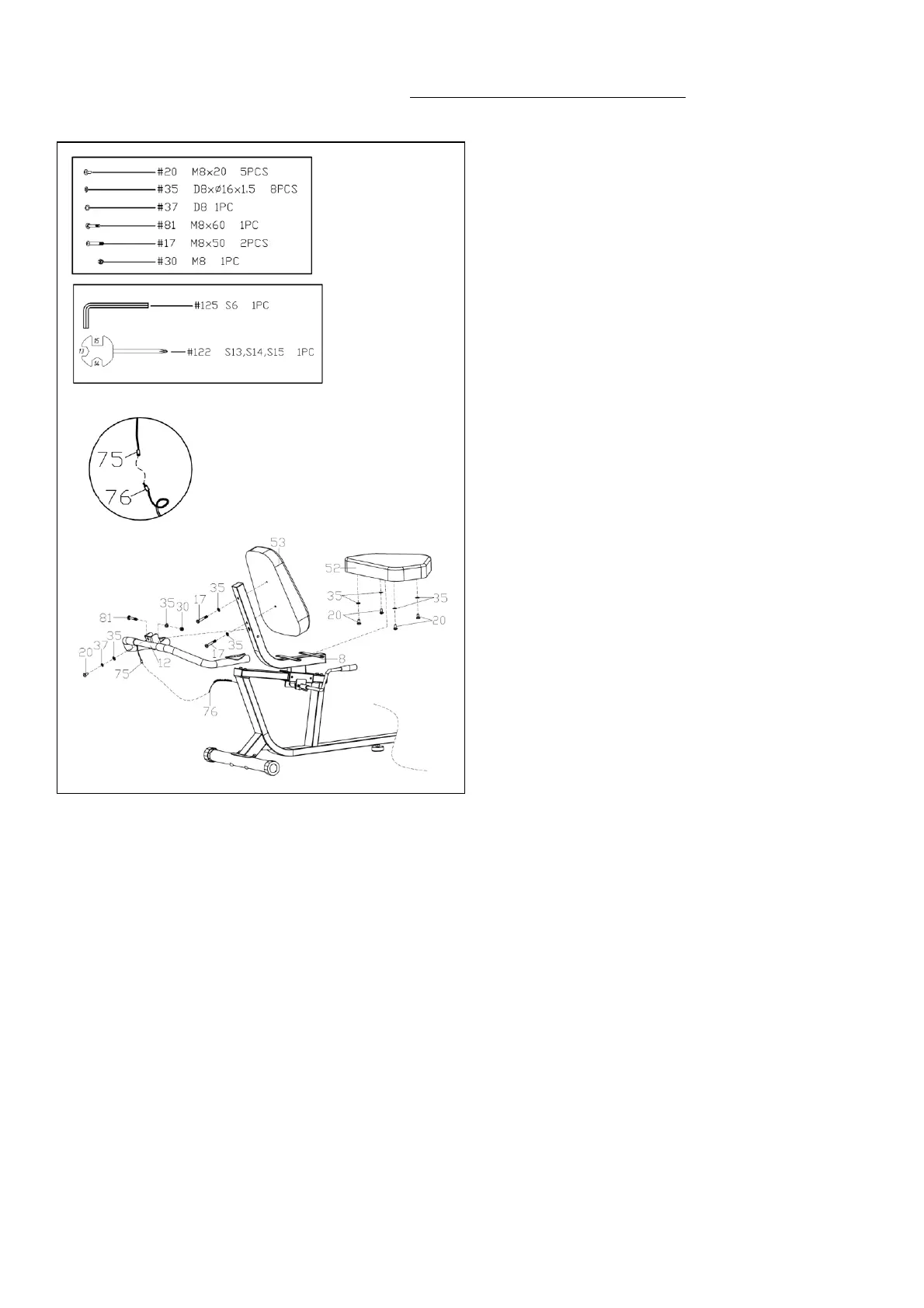

STEP 7:
Remove 1 Screw (No. 20), 1 Spring
Washer (No. 37) and 1 Flat Washer (No.
35) from the Seat Support (No. 8) using
Allen Wrench (No. 125)
Attach the Rear Handlebar (No. 12) to the
Seat Support (No. 8) with 1 Screw (No.
20), 1 Spring Washer (No. 37) and 1 Flat
Washer (No. 35) that were just removed.
Tighten and secure with Allen Wrench (No.
125). Tighten the Rear Handlebar (No. 12)
to the Seat Support (No. 8) with 1 Hex Bolt
(No. 81), 1 Flat Washer (No. 35) and 1
Nylon Nut (No. 30) using Spanner (No.
122).
Connect the Pulse Extension Wire 1 (No.
76) to the Pulse Wire (No. 75).
Attach the Seat (No. 52) to the Seat
Support (No. 8) with 4 Flat Washers (No.
35) and 4 Screws (No. 20). Tighten and
secure with Allen Wrench (No. 125).
Attach the Backrest (No. 53) to the Seat
Support (No. 8) with 2 Flat Washers (No.
35) and 2 Bolts (No. 17) using Allen
Wrench (No. 125).
