6
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY
(877-907-8669).

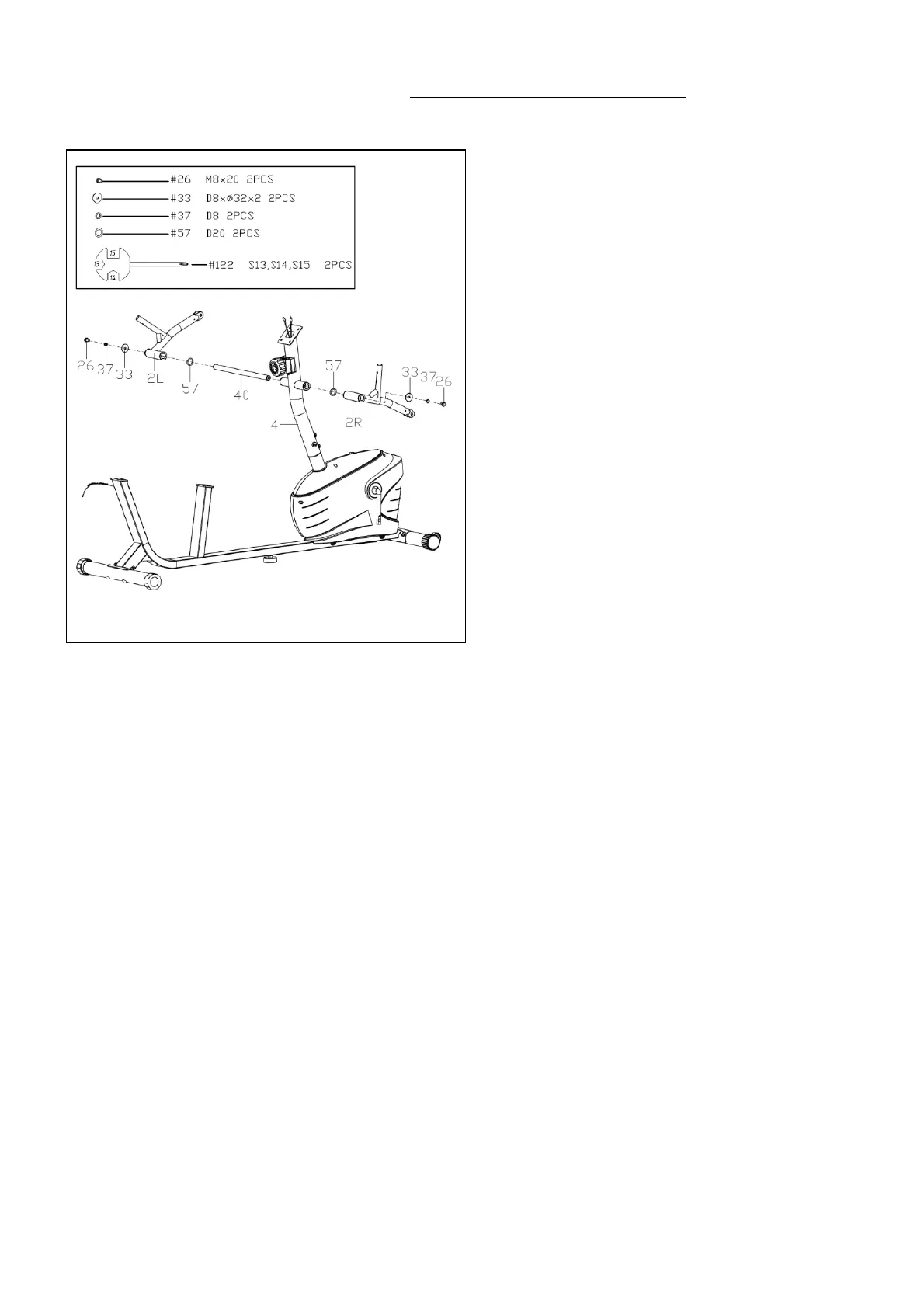

STEP 3:
Remove 2 Hex Screws (No. 26), 2 Spring
Washers (No. 37), 2 Flat Washers (No. 33)
and 2 Wave Washers (No. 57) from the
Long Axle (No. 40) using 2 Spanners (No.
122).
Insert the Long Axle (No. 40) into the
Handlebar Post (No. 4), then insert 2 Wave
Washers (No. 57) that were just removed to
the both sides of Long Axle (No. 40).
Attach the 2 Swing Bars (No. 2L/R) to both
sides of the Long Axle (No. 40) using 2 Flat
Washers (No. 33), 2 Spring Washers (No.
37) and 2 Hex Screws (No. 26) that were
just removed. Pre-secure with 2 Spanners
(No. 122).
NOTE: Do not completely tighten the Hex
Screws (No. 26) yet.
