Sunso WTP-800 - Ethernet Interface; Cash Drawer Interface

WTP-800 User Manual
20

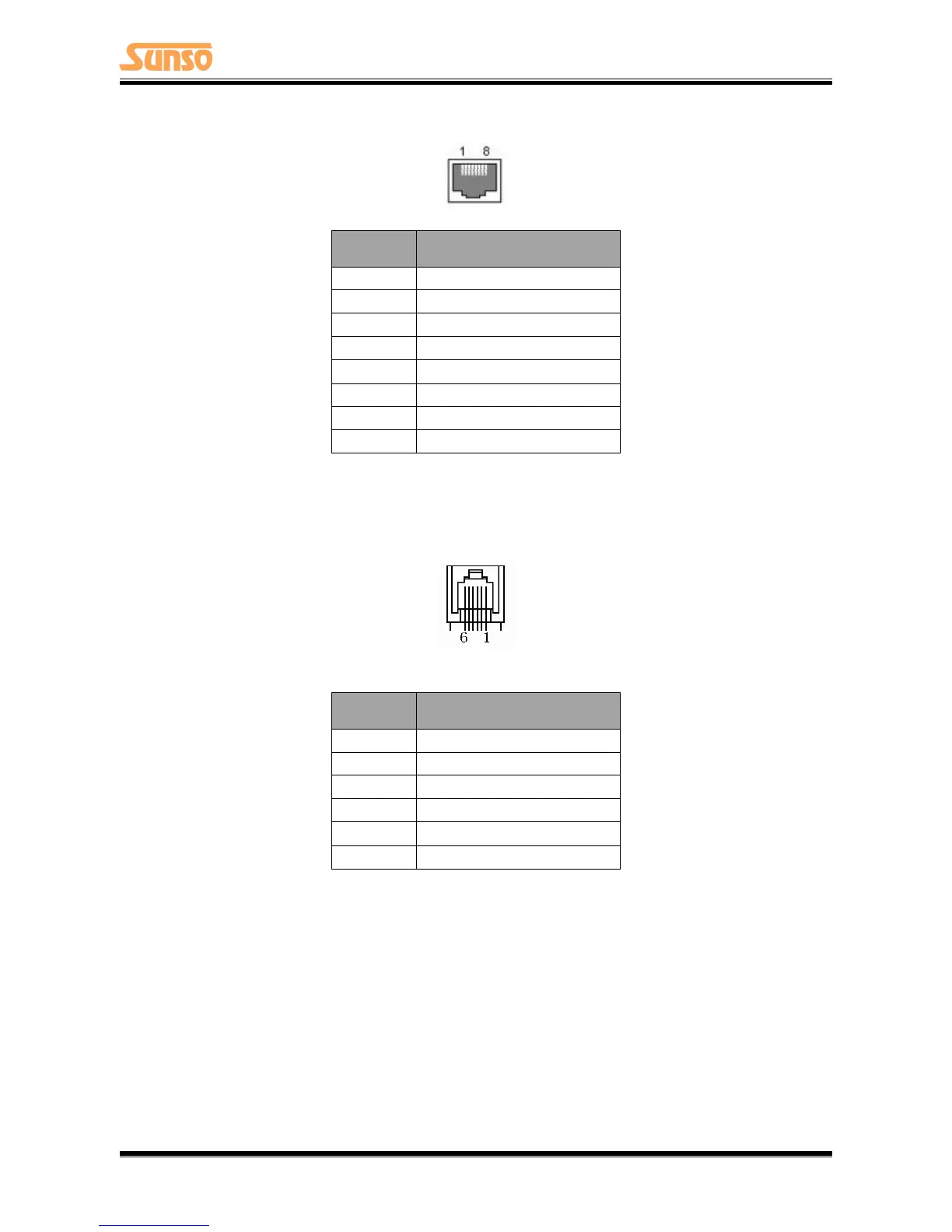

5.3 Ethernet Interface
PIN NO.
Signal Name
1
TX+
2
TX-
3
RX+
4
-
5
-
6
RX-
7
-
8
-
NOTE: Ethernet interface can only be connected to an has been isolated SELV such interface of end device.
5.4 Cash Drawer Interface
Figure 5-4
PIN NO.
Signal Name
1
FG
2
Drawer 1
3
DRSW
4
VDR
5
Drawer 2
6
GND
Electrical characteristics
 Driving voltage
：
DC 24 V
 Driving current：Maximum 0.8 A ( In 510 ms)
Drawer check signal：“L” = 0～0.5 V “H” = 3～5 V
