85

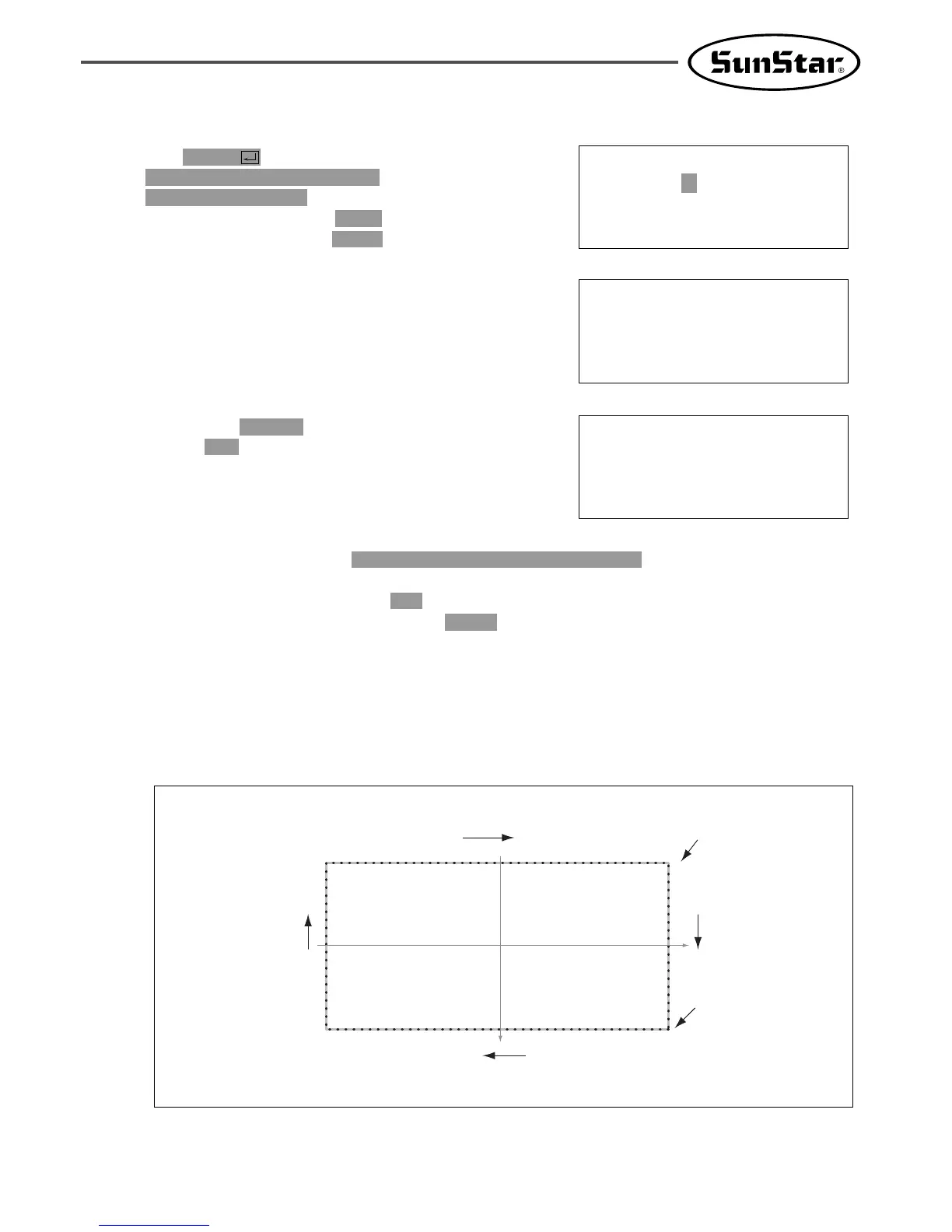

D. Press key to set Time Delay.
.
. Set desired Time delay
by using number keys. Input . If 50[ms] is
input, the real Time Delay is .
200[ms]
50[ms]
Time delay unit is 4[ms]
Time Delay is originally set at 0[ms]
ENTER
059:TIME DELAY
DELAY:0050[x4ms]
E. Return to the initial screen.
To create Second Line, input switch width by
using Line key.
TIME DELAY NONE
X:00650A N:00106
Y:00300A
Function Code?
F. After pressing key, register Second Line
by using .
After computing pattern data, feed plate moves
according to the data.
EXE
PNT.SET
LINE NONE
X:00650A N:00126
Y:-0300A
Function Code?
G. The rest part is the same with .
L~R in 3-23) Output Port Setting Function
So, when time delay is programmed, will operate shortly before second Line sewing following first Line
sewing. And the operation will discontinue for shortly before sewing and then second Line sewing will
start. By doing so, a user can set delay time at each designated device and take motion when operating
device related output port.
200[ms]
TR3
3-25) 3rd Thread Adjusting Device (TR3) Setting
This function allows users to make additional adjustment of the upper thread tension for a certain section.
Line 1
Line 3
Line 4
TR3 : ON
Line 2
TR3 : OFF
