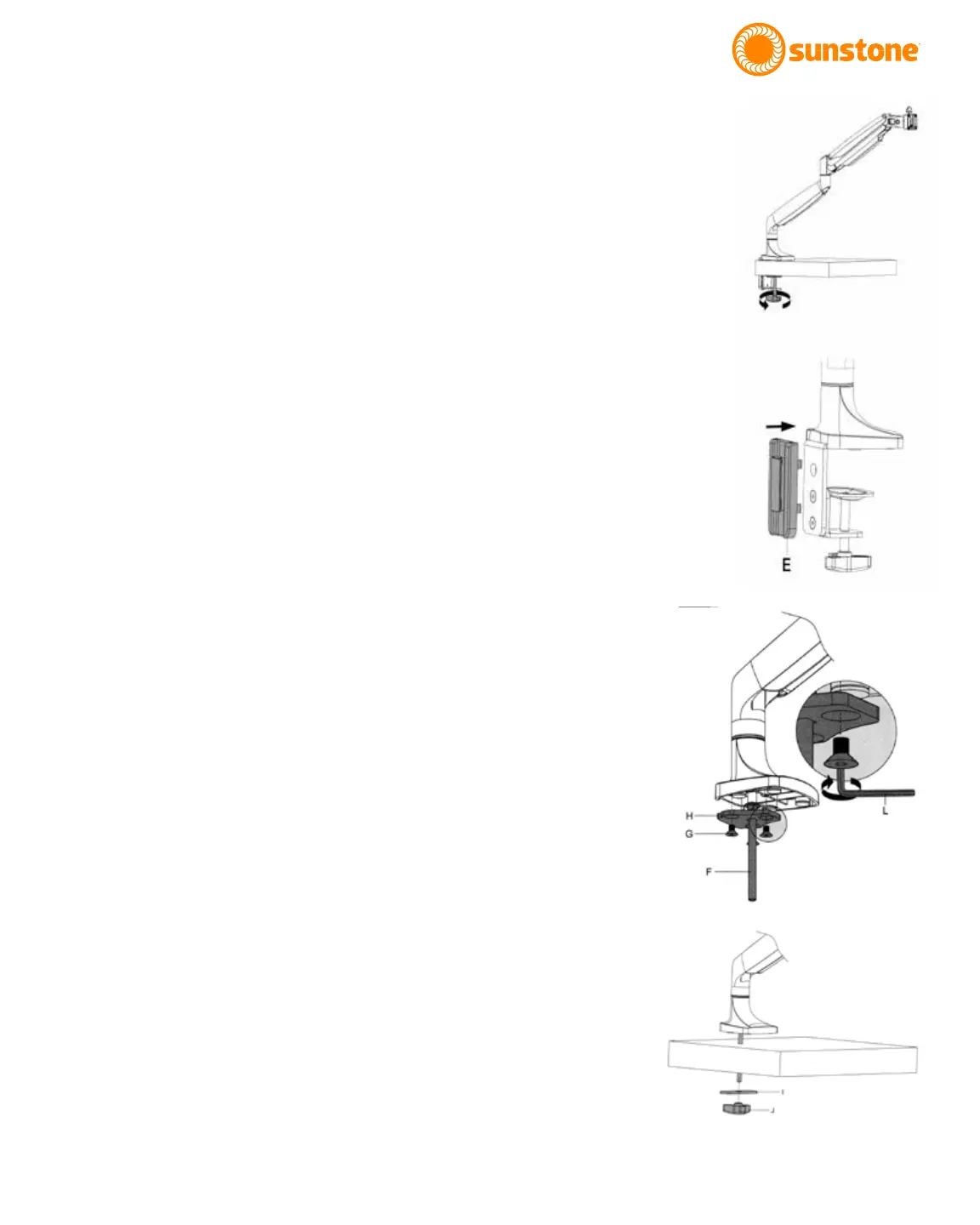

Figure 3.1. Attach Clamp
Mechanism (D) to angled
bracket (C).
Figure 3.2. Cover the Clamp
Mechanism (D) with the
plastic cable guide cover (E).
hex screws. See Figure 2.4. For thicker tables,
attach the clamp mechanism (D) to the two
lower holes in the Angled Bracket (C).
• Adjust the knob on the Clamp Mechanism (D)
your tabletop.
• Lock the arm into place by turning the knob
on the Clamp Mechanism (D) until the clamp is
• Lift the Microscope Arm Assembly (A) up, slide
the arm onto the table as shown in Figure 3.1.
• A plastic cable guide cover (E) can be clipped
on over the angled bracket if desired. See
Figure 3.2.
Mounting Option 2 - Bolt through Table
Mounting Option 2 is best for tables without accessible
edges. Hardware required from Box 2:
(1) Flat Mounting Plate (H)
(3) Flat Head Hex Screws (G)
(1) Long Carriage Bolt (F)
(1) Flat Pressure Plate (I)
(1) Adjustment Knob (J)
• As shown in Figure 3.3, using a 4mm (5/32”)
(G) holding the Flat Mounting Plate (H) to the
arm.
• Run the included 8mm (5/16”) Long Carriage
Bolt (F) through the included Flat Mounting
Plate (H).
• Attach Flat Mounting Plate (H) to the bottom of
• Drill a 3/8” (9.5mm) hole through the tabletop.
• Lower the arm so the Long Carriage Bolt (F)
goes through the hole in the tabletop. See
Figure 3.4.
• Slide the Flat Pressure Plate (I) onto the bolt.
Figure 3.3. Remove the
plate from the arm, run
the carriage bolt (F)
through the mounting
plate (H), then re-attach
the mounting plate to
the arm.
Figure 3.4. Lower the
arm so the bolt goes
through the hole in the
table.
