Making Electrical Connections
Make electrical connections as shown below.
Warning! Be sure ac power is disconnected before connecting cables.
1. Your sunbed is designed to accept an input from a remote control device. The
remote control is optional and is not included with your sunbed. If you choose not
to use a remote control then, connect the remote control bypass to the remote con-
trol connector as shown. Your sunbed will not operate without the bypass connect-
ed. If remote operation is desired, a remote cable assembly is required. Contact ETS
Inc. as described in Obtaining Service in this guide.
2. Connect the canopy to bench power cord to
the bench receptacle. The plug is polarized. Align the
terminals and firmly push on until seated then
tighten the threaded locking ring, as shown.
10
Installation-Making Electrical Connections
3. Plug the three-prong 220 VAC
power cord into a dedicated outlet
(see page 3).

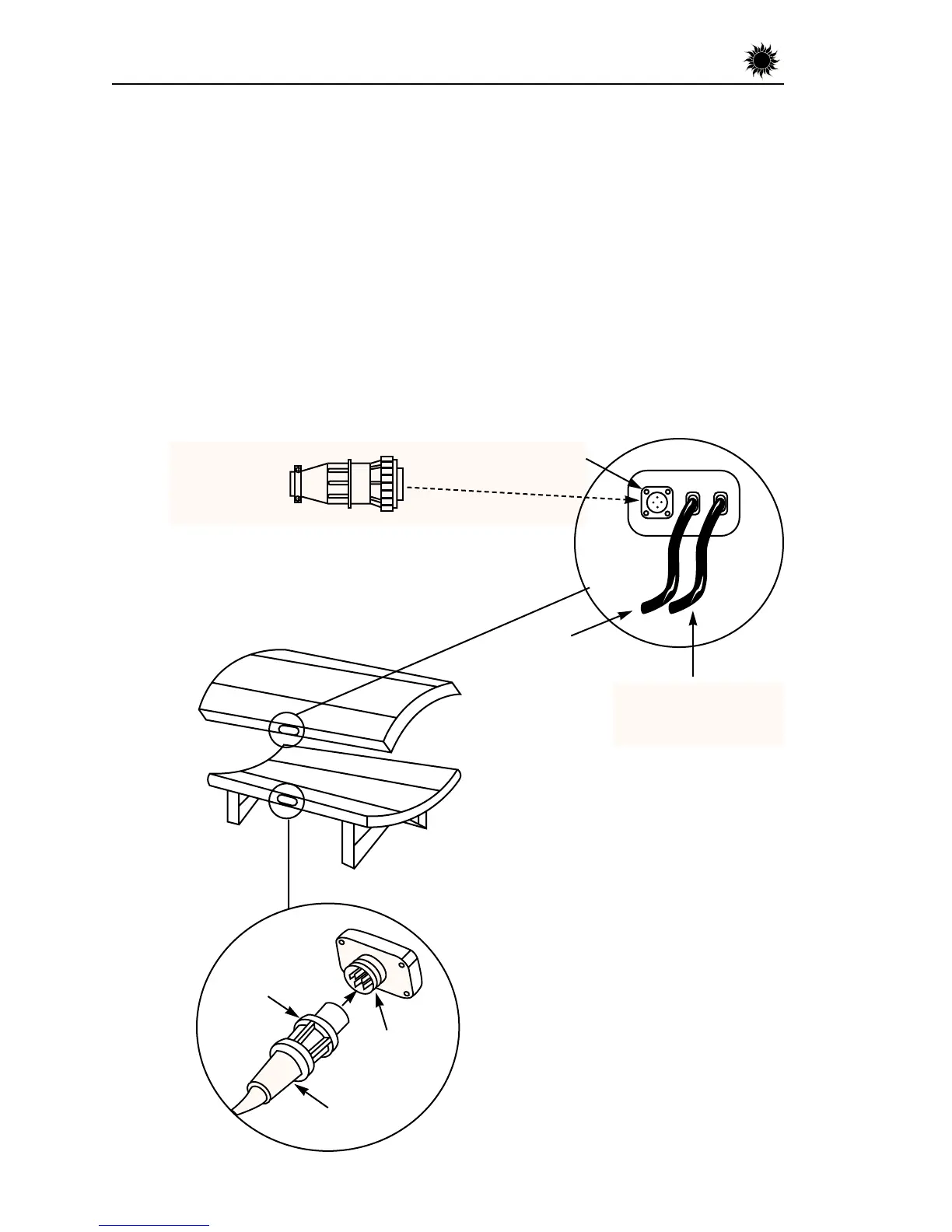

CANOPY
POWER CORD
RECEPTACLE
ON BENCH
ELECTRICAL PANEL
MAIN AC POWER CORD
CANOPY TO BENCH
POWER CORD
REMOTE CONTROL
CONNECTOR
REMOTE BYPASS
THREADED
LOCKING RING
To Next Page
