Sunways STS-1KTL-S - Appearance Introduction

10 11

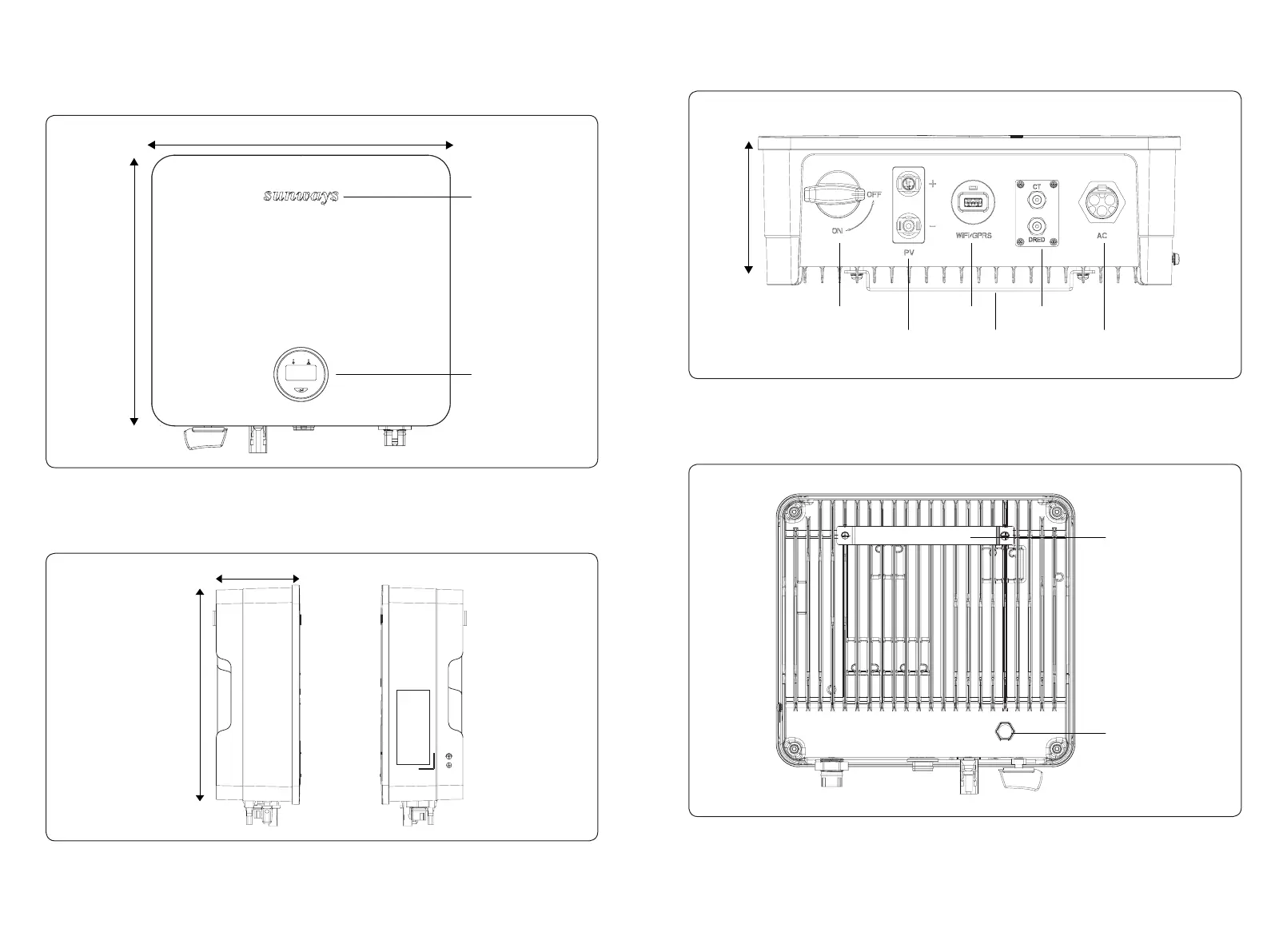

Figure 3-2 Front view
Figure 3-3 Side view
3.2 Appearance Introduction
3.2.1 Inverter front view, as shown in Figure 3-2:
3.2.2 Inverter side view, as shown in Figure 3-3:
297mm
327mm
Logo
Display
Name
Plate
297mm
114mm
Figure 3-4 Bottom view
Figure 3-5 Inverter back view
3.2.3 Inverter bottom view, as shown in Figure 3-4:
3.2.4 Inverter back view, as shown in Figure 3-5:
Back Rail
Vent Valve
114mm
DC Switch (Optional)
DC Input Terminal
Com1 Port Com2 Port
(Optional)
Back Rail
AC Output Terminal
