Sunways STS-1KTL-S - Mounting the Inverter

14 15

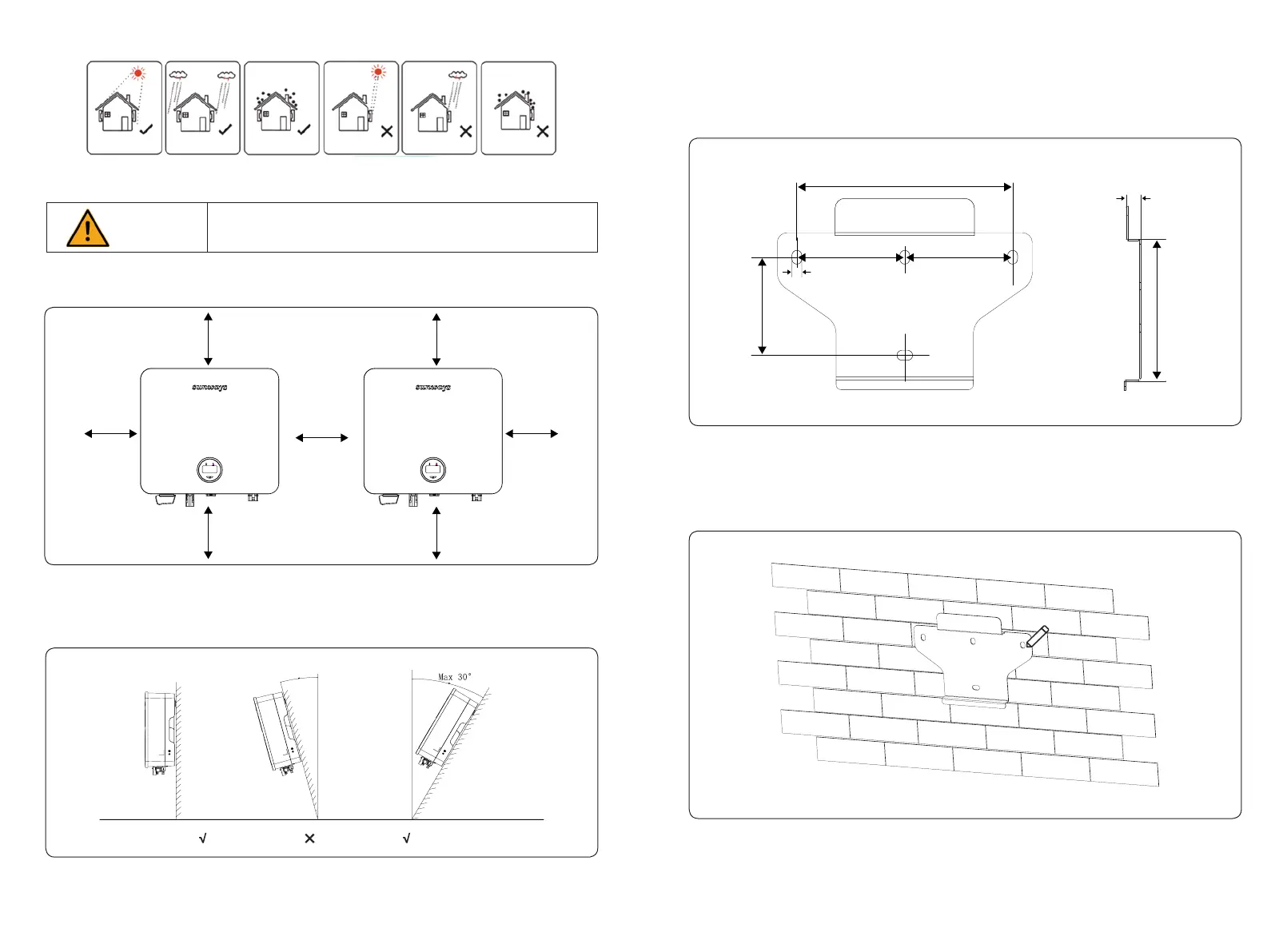

4.1.2 The requirements for inverter installation spacing are shown in Figure 4-2:
4.1.3 The installation angle of the inverter is recommended as shown in Figure 4-3:
Figure 4-1 Recommended installation location
Figure 4-2 Recommended installation space
Figure 4-3 Recommended installation angle
Do not put 󽗊ammable and explosive articles around the inverter.
Warning
300mm
300mm
500mm 500mm
500mm 500mm
300mm
4.2 Mounting the Inverter
4.2.1 Wall bracket installation
Dimensions of wall bracket, see Figure 4-4:
1) Use the wall bracket as the template to mark the position of 4 holes on the wall. See Figure
4-5 for details:
Figure 4-4 Dimensions of wall bracket
Figure 4-5 Mark the hole position
16mm
150mm
10mm
220mm
110mm 110mm
104mm
