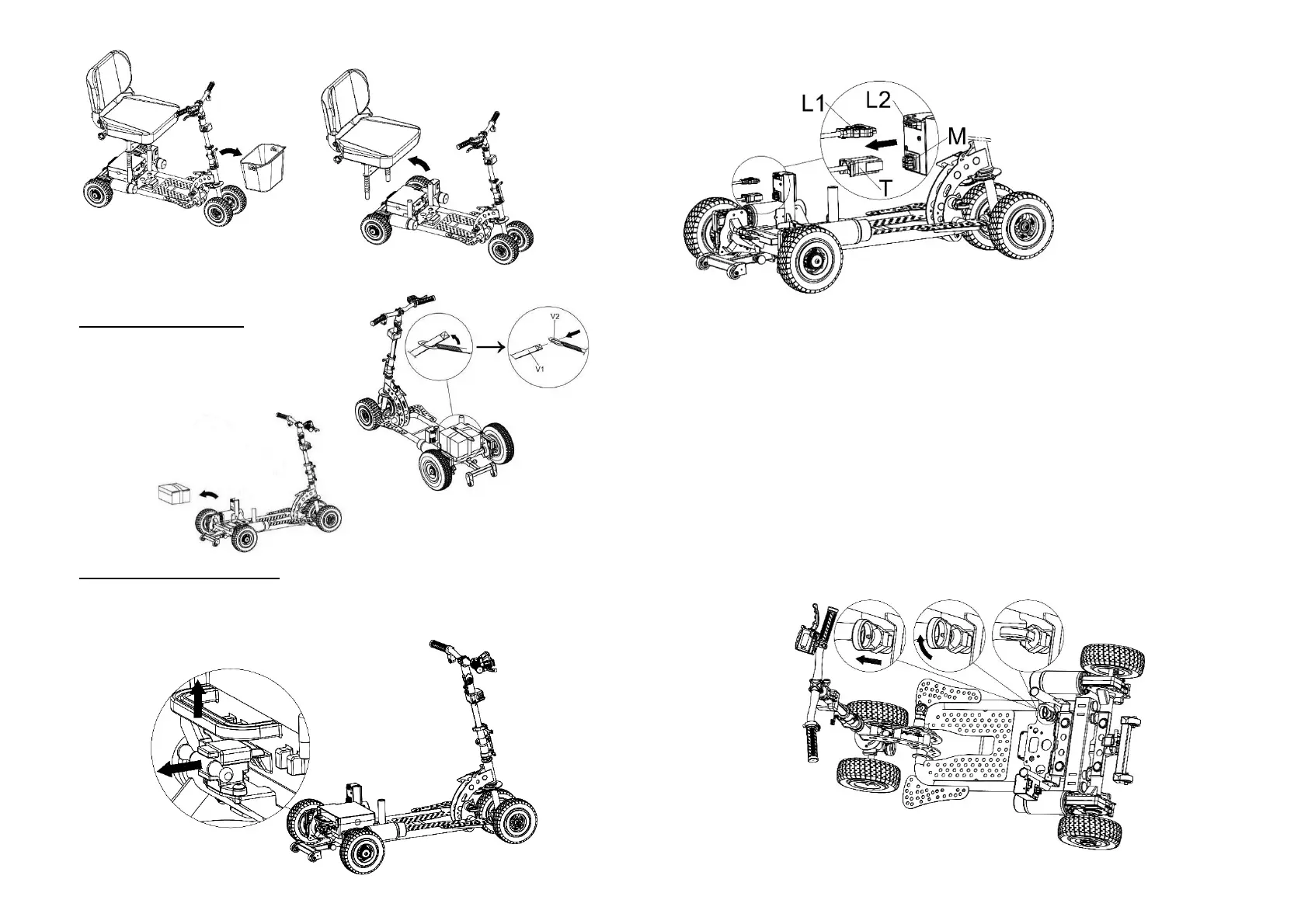

● Remove the front basket from scooter.
● Remove the seat.
For SLA Battery
● Unplug the battery
connector, undo the strap
and remove the SLA battery.
For Lithium Battery
● Unplug the battery connector, pull knob backward and pull up
the battery handle for removing lithium battery as illustrated.
- 29 -
● Press the lock tab of
connector and pull
out to disconnect the
connector as per
illustration.
Frame Disassembly
Disassembly is best carried out by pulling the locking pin C and
allowing the tiller assembly to fold as arrow direction until it rests on
the ground.
● Unplug all connectors.
● Pull the lock pin knob (V) and turn it to the “unlock” position, pull
lock pin (C) and lower the tiller until the frame rests on the ground.
● Hold the strap (T) with one hand and the rear section of the
scooter frame with the other hand and slide the 2 halves of the
frame apart.
- 30 -
To Next Page
