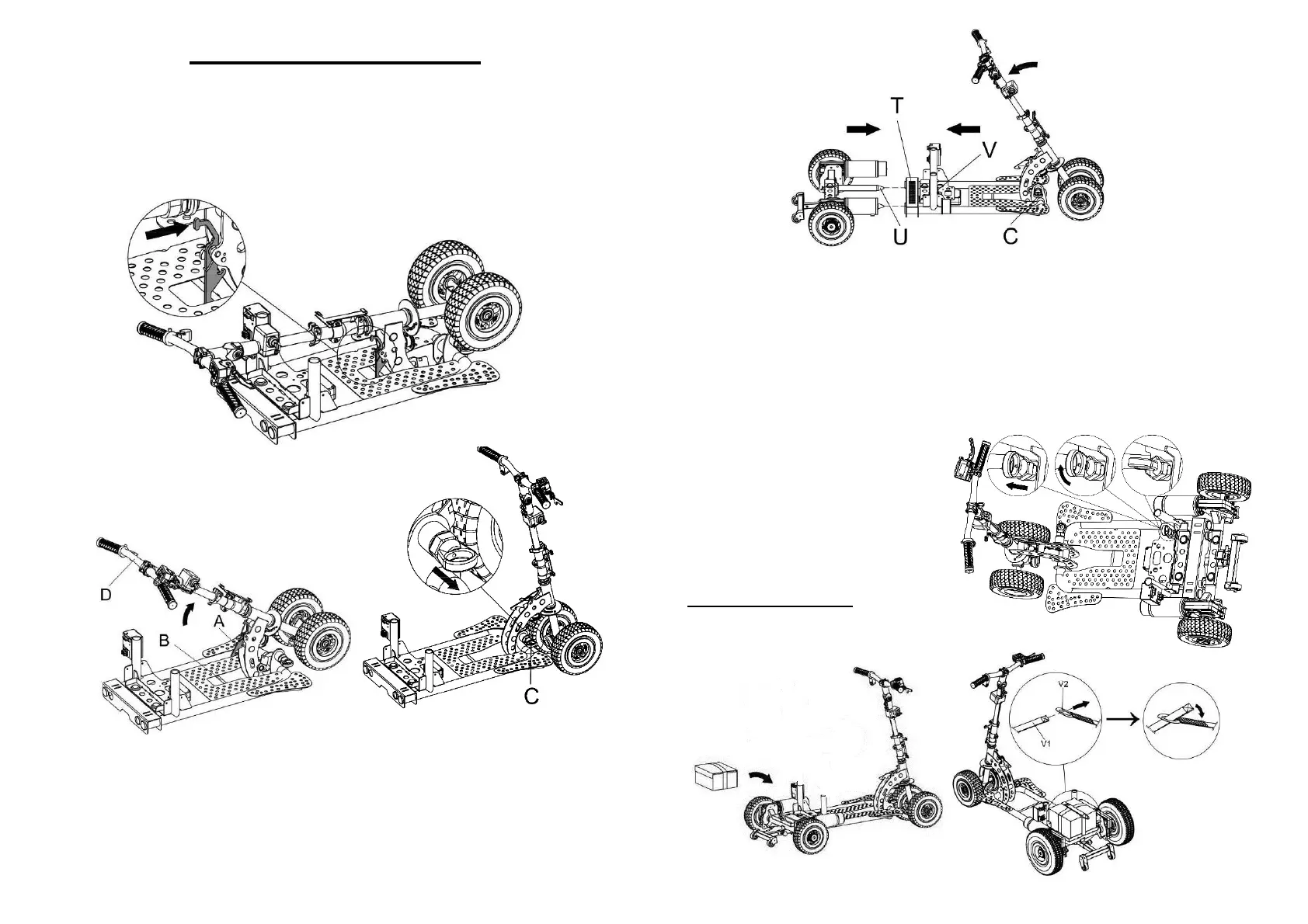

TO OPEN THE SPARTAN
● Use one hand to hold the tiller handle (D) and use the other hand
to push the lock pin lever per the illustration and lift the handle.
Pull the tiller lock (C) and turn it clockwise. Continue lifting the
tiller until you hear the “click”, the locking into position.
Frame Assembly
Assembly and disassembly is best carried out by pulling the
locking pin C and allowing the tiller assembly to fold forward until
it rests on the ground.
- 13 -
● Pull the lock pin knob (V) and turn it to the “lock” position.
● Hold both frame sections horizontally by using the strap (T) with
one hand and the rear section with the other hand and slide both
together by inserting the tubes (U) into the corresponding holes in
the front frame.
● The pin will click when inserted correctly. You must check that
the pin has locked into position.
For SLA Battery
● Install the battery into the tray and fasten it securely.
