For Lithium Battery

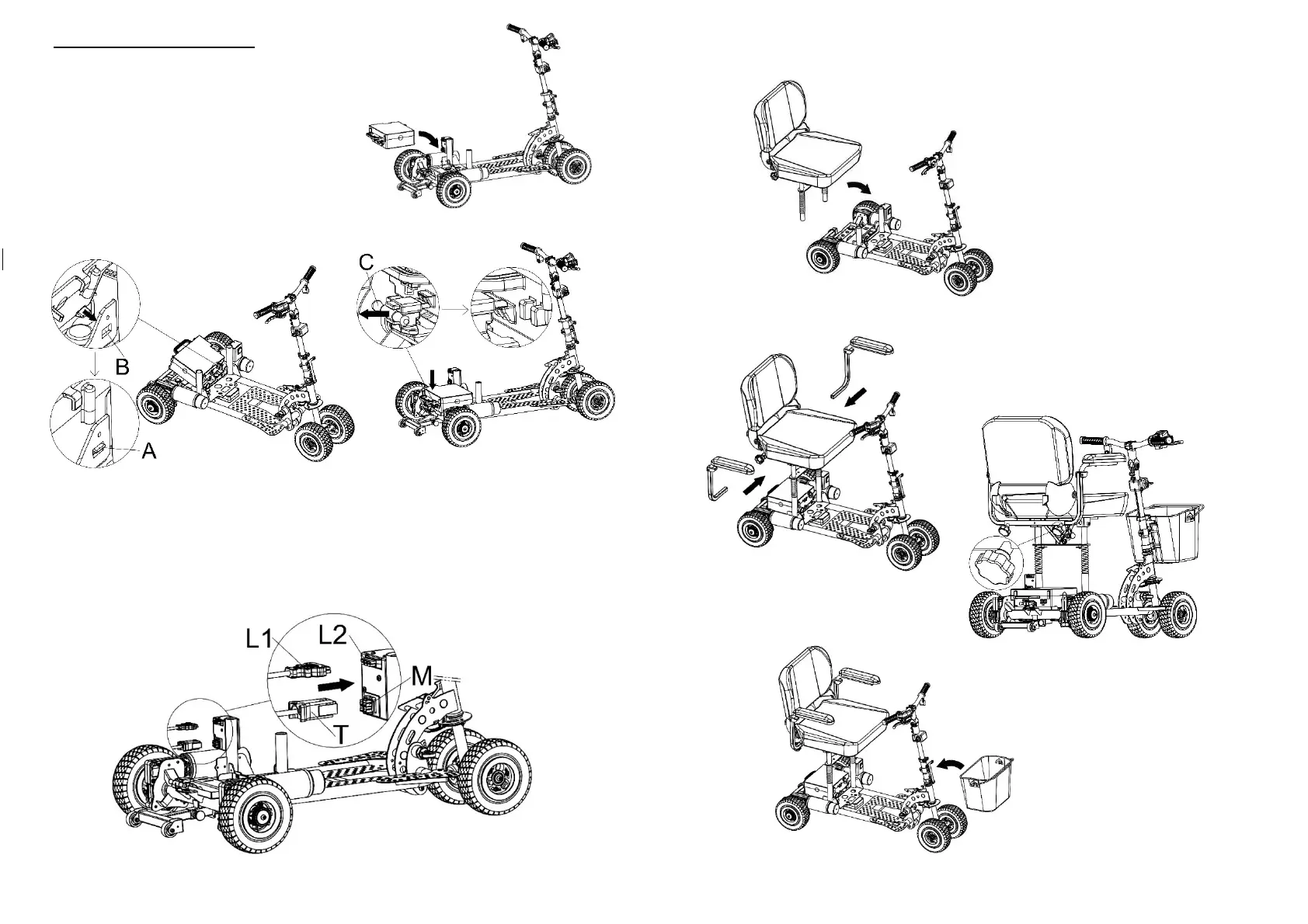

● Pull the knob (C) backward and have
2 block (A) Insert into slots (B) as
illustrated direction then push
battery module downward until you
hear click of locked into cam locker.
● You must check that the battery
module has locked into position.
● Reconnect plugs.
● Plug the main connector “T” into “M” on the frame.
● Plug in the battery connector “L1” into “L2” on the frame.
● The connectors are color matched. Don’t try to force it into the wrong
position.
- 15 -
● Fit the seat on to the frame and insert the seat frame tubes
into the corresponding holes on the main frame.
● Insert arm rest per the illustration.
● Tighten the screws
● Fit the front basket
- 16 –
