Super Handy LDB01-01 - Battery Assembly; Battery & Controller Assembly; Battery Cable Connection

4

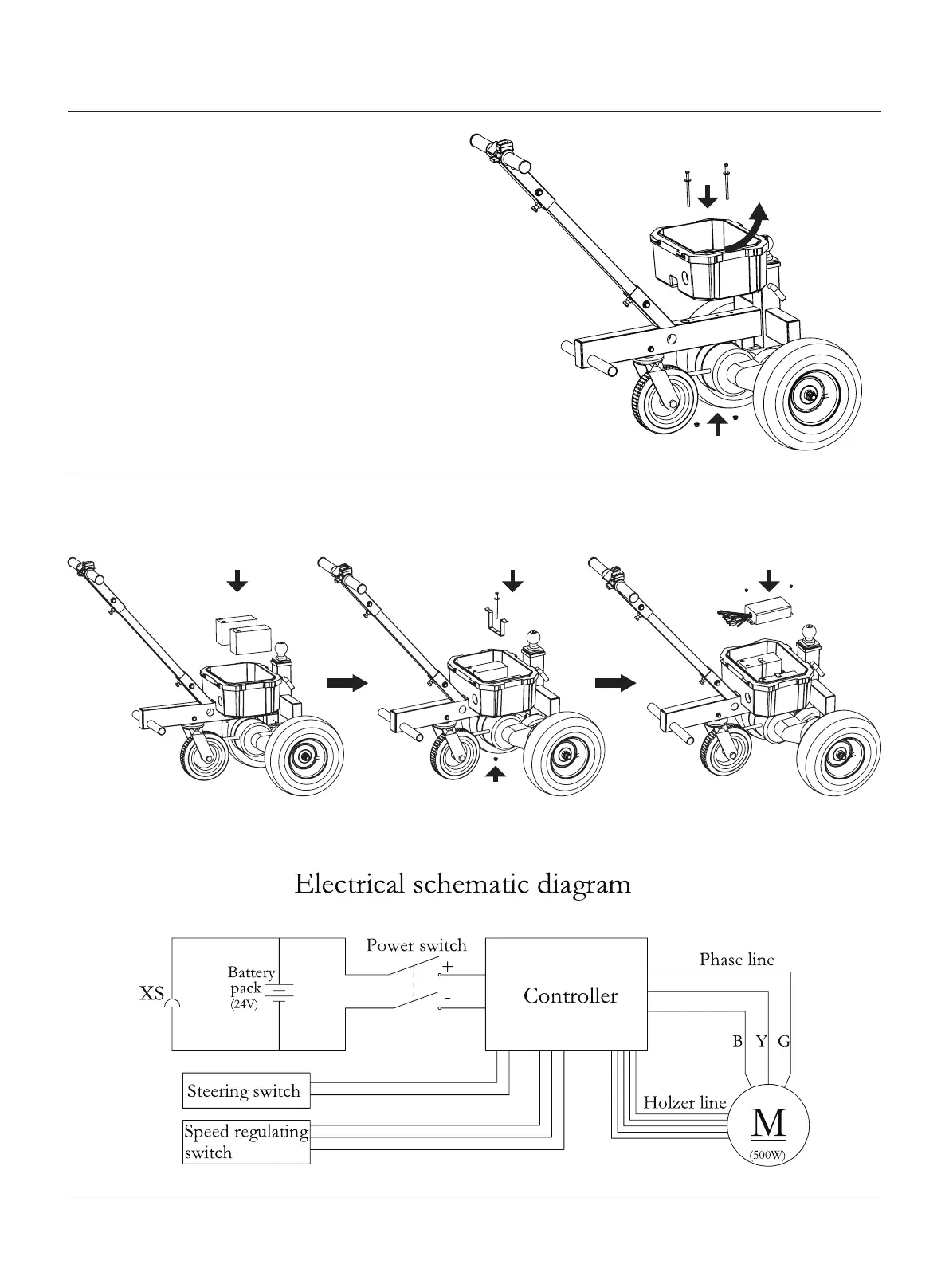

Figure 7
Figure 8
Figure 9
8. Battery & Controller Assembly
Place 2*12V lead acid battery into the box. DO NOT TOUCH THE BATTERY’S POSITIVE AND NEGATIVE BY
ANY METAL PARTS. Otherwise there will be fire caused and lead a danger to the user. (See Figure 8)
9. Battery cable connection (See Figure 9)
ASSEMBLY
7. Battery Assembly
Put out the battery wire from the inside hole on the
battery box, screwed the battery box on the force
frame by bolts. (See Figure 7)
Cable
