Super Systems 31095 - Operation: Alarm Configuration; Alarm Parameter Configuration

Conf
L.inp
IL1
IL2
éOFF
éOFF
IL3
éOFF
30
4 - Operation

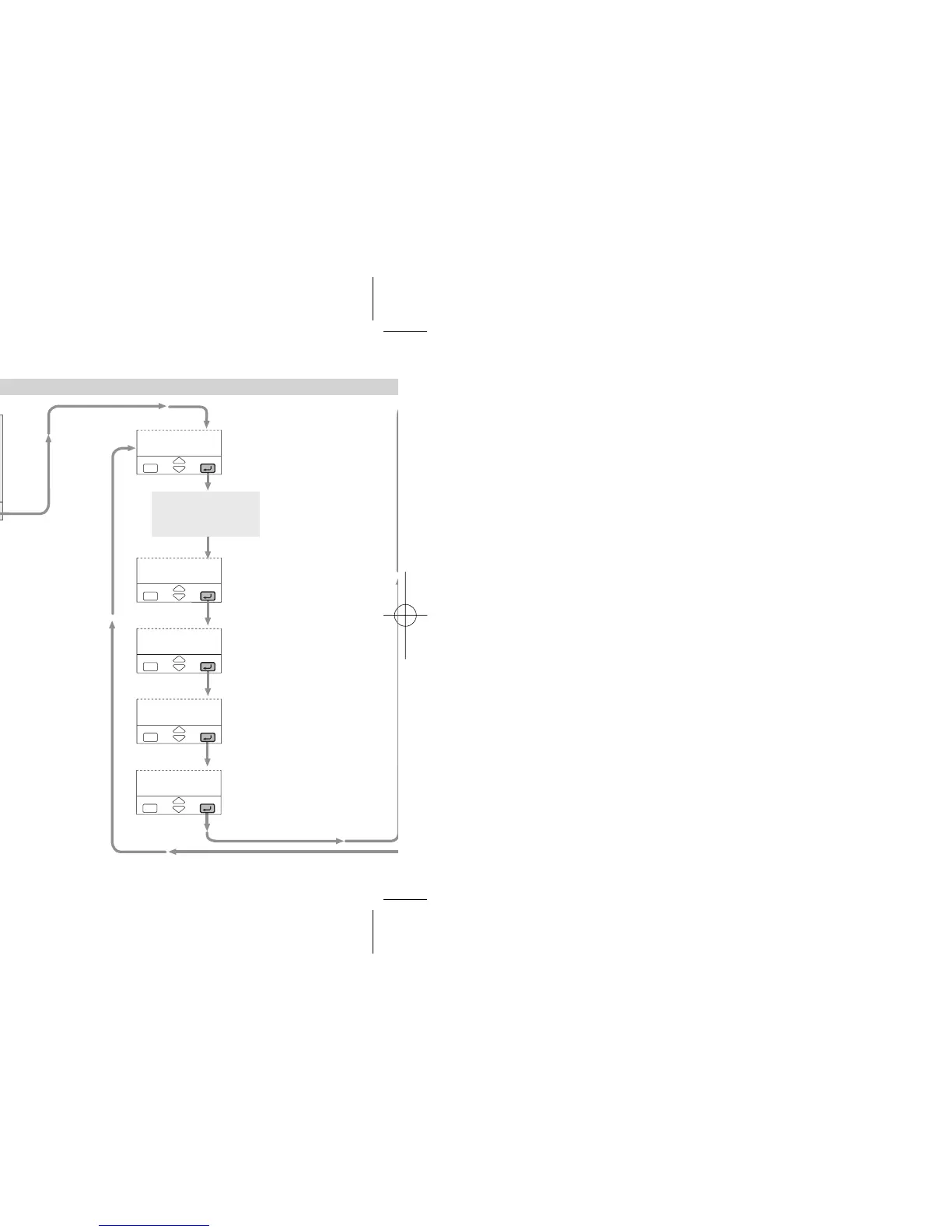

4.3.4 DIGITAL INPUT CONFIGURATION 4.3.5 ALARM CONFIGURATION
IL1 digital input
function
see table 10
IL2 digital input
function
see table 10
IL3 digital input
function
see table 10
slo.1
s.p. slope disable
H.pU
Measure hold
Description
Tab. 10 Digital Inputs
functions
éIl1
Value
éIl3
Off
Not used
l=r
Local/Remote
A.Man
Auto/Man
s.p. 1
1
st
stored Setpoint
s.p. 2
2
nd
stored Setpoint
keb.I
Keyboard lock
F.Out
Output forcing mode
blck
Reset blocking
strt
Start-Hold timer
tres
Reset out timer
éIl2
s.p. 3
3
rd
stored Setpoint
end
Quit timer
Conf
ALM
bloc
éno
Ltch
éno
A1.Ou
éOP1
AL. 1
éOFF
donb
éno
AL1 alarm type
see table 11
AL1 addressing
OP1 / OP2 [1]
OP3 / OP4
AL1 latching
no / yeS
AL1 start-up
disabling
no / yeS
Disables AL1 if a sen-
sor break occurs
no / yeS
NOT AVAILABLE
OF
AL. 1 = OFF
[1] OP1 and OP2 outputs
can be used as alarm
outputs if they are not
used as control outputs.
