2. OPERATION PATTERNS

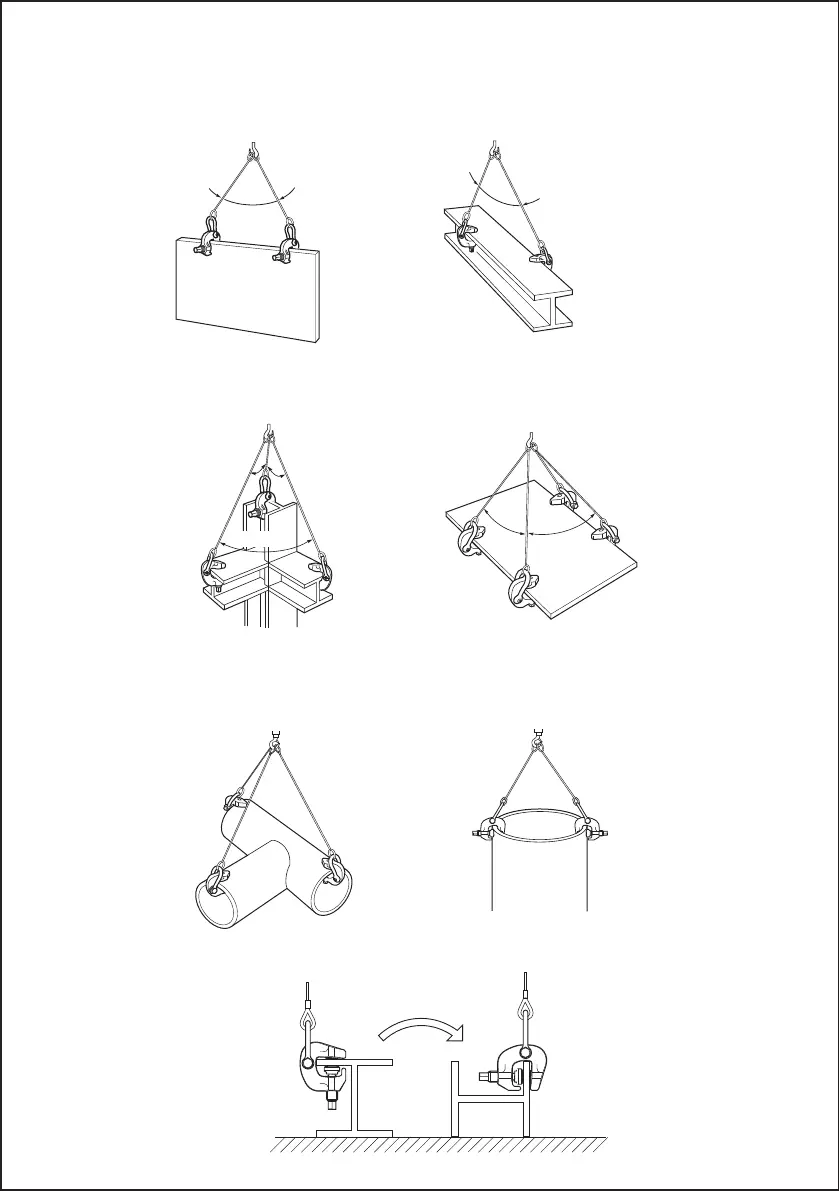

When lifting at 2 points, keep the lifting angle within 60°.
①
Always lift at 3 or more points with complicated shaped objects.
(For horizontal lift, always lift at 4 points when lifting a steel plate
positioned horizontally to a floor level)
②
③
Clamps can also be used for lifting and turning over pipe shaped
objects.(Cylinder with inner dia. over 600mm)
④
Clamps can also be used for temporary turning over mold steel or the like.
Within60°
Within60°
Within60°
Within60°
Within60°
Within60°
Within60°
Keep the lifting angle
within 60°between
ropes.
When clamping horizontally, install with the pad on the upper side.
