11

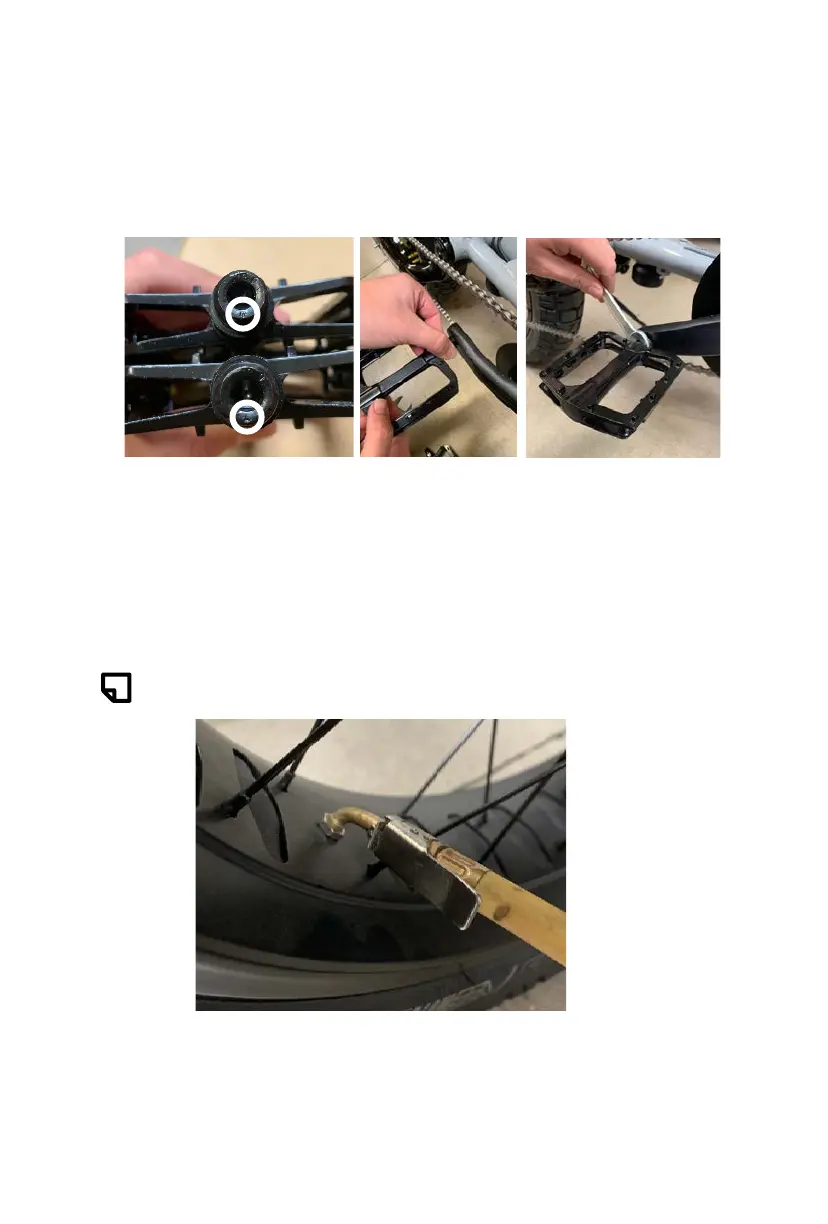

2. INSTALL PEDALS
A. Install and tighten the pedals using the 15 mm open wrench. Look for a letter
marking “L” “R” on each respective pedal and make sure you install the left
pedal on the left crank, and the right pedal on the right crank.
B. The right pedal is screwed on in a clockwise direction. The left pedal is
screwed on by turning it counter-clockwise.
3. TIRE INFLATION
For transport purposes, tires are packed partially inflated. Tires must be inflated using a
pump with a Schrader valve tip to a recommended 27-30 psi (.86 - 2.06 bar).
A. Inflate the tube to a max pressure of 35 PSI in order to ensure the tire is
properly seated in the rim.
B. Once properly seated, deflate to a recommended 27-30 psi (.86 - 2.06 bar).
PSI will vary based on the weight of rider and type of terrain.
The inner tube size is 20”x4.5 or 20”x5” for the rear and the front.
TIP
A
B
