16

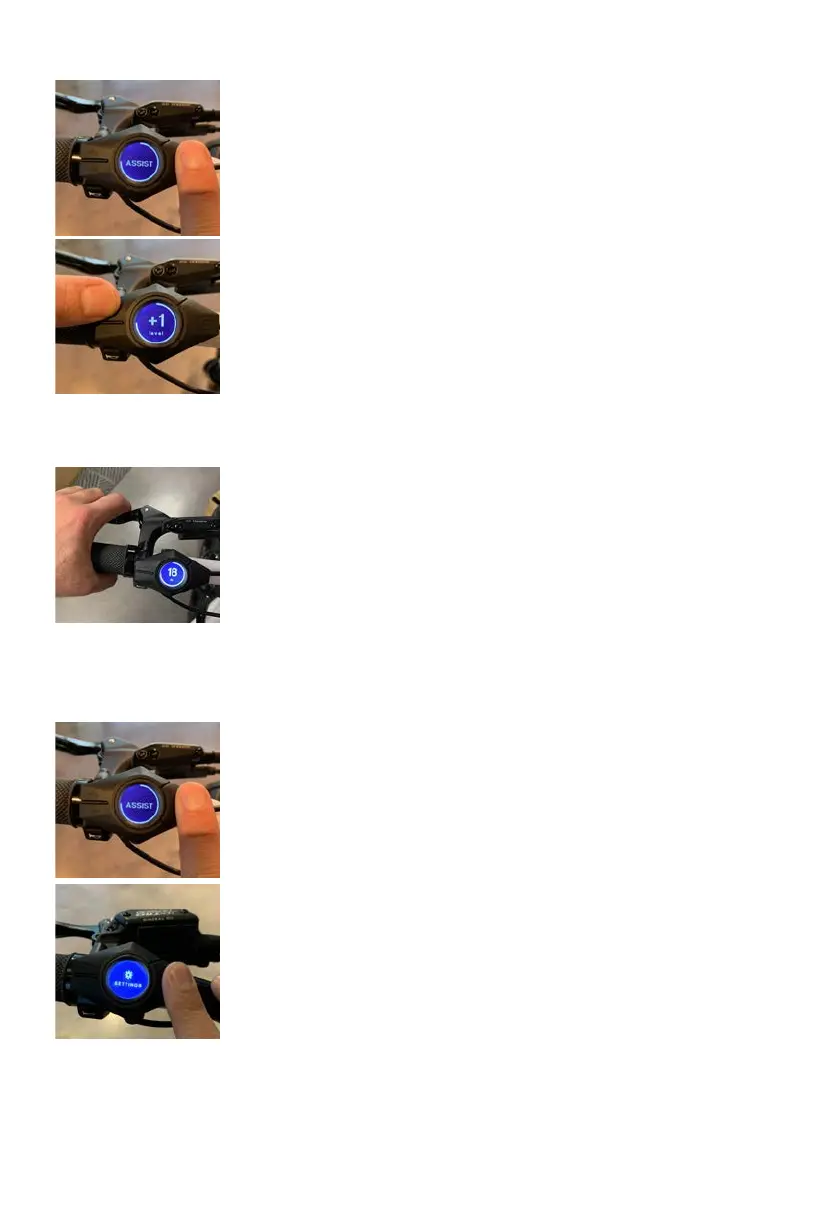

3. PEDAL ASSIST
To select your pedal assist mode, follow these steps once the
display has been turned on and you are seated on the Super73:
• Press on the menu “O” button briefly to switch between
display views until “Assist” appears on the screen.
• Press the up “
^
” button to increase the pedal assist level. To
decrease the assist level, press the down “v” button. Pedal
assist ranges from -4, with 0 meaning pedal assist is turned
off. The higher the level, the more electric assistance you’ll
get, and the less you’ll have to pedal.
• Level (ECO) - 25% Speed Power
• Level 2 (TOUR) - 50% Speed Power
• Level 3 (SPORT)- 75% Speed Power
• Level 4 (SUPER) - 00% Speed Power
• Once you begin pedaling, the pedal assist sensor will activate
the motor and you will begin to accelerate to the selected
assist level.
4. BRAKING
• The brake levers are equipped with brake sensors that
cut power to the motor when either of the levers are
compressed. The Z employs Tektro mechanical brake
systems. The right lever will activate the rear brakes when
compressed, and the left lever will activate the front brakes
when compressed.
• The Super73 brake orientation is as follows:
Rear brake = right lever
Front brake = left lever
5. SETTINGS MENU
• Hold down the “O” button on display to activate the settings
menu.
• Settings parameters:
• Contrast (display window contrast 0-00).
• Units (standard is set to mi/F).
• Position (changes the orientation of display if it is on the
left or right side of the bike).
• Back-light (display back-light power 0-00).
• Version is the software version of the system.
• Coin is the battery level inside display.
