Section A – Overview of FLASHPAQ

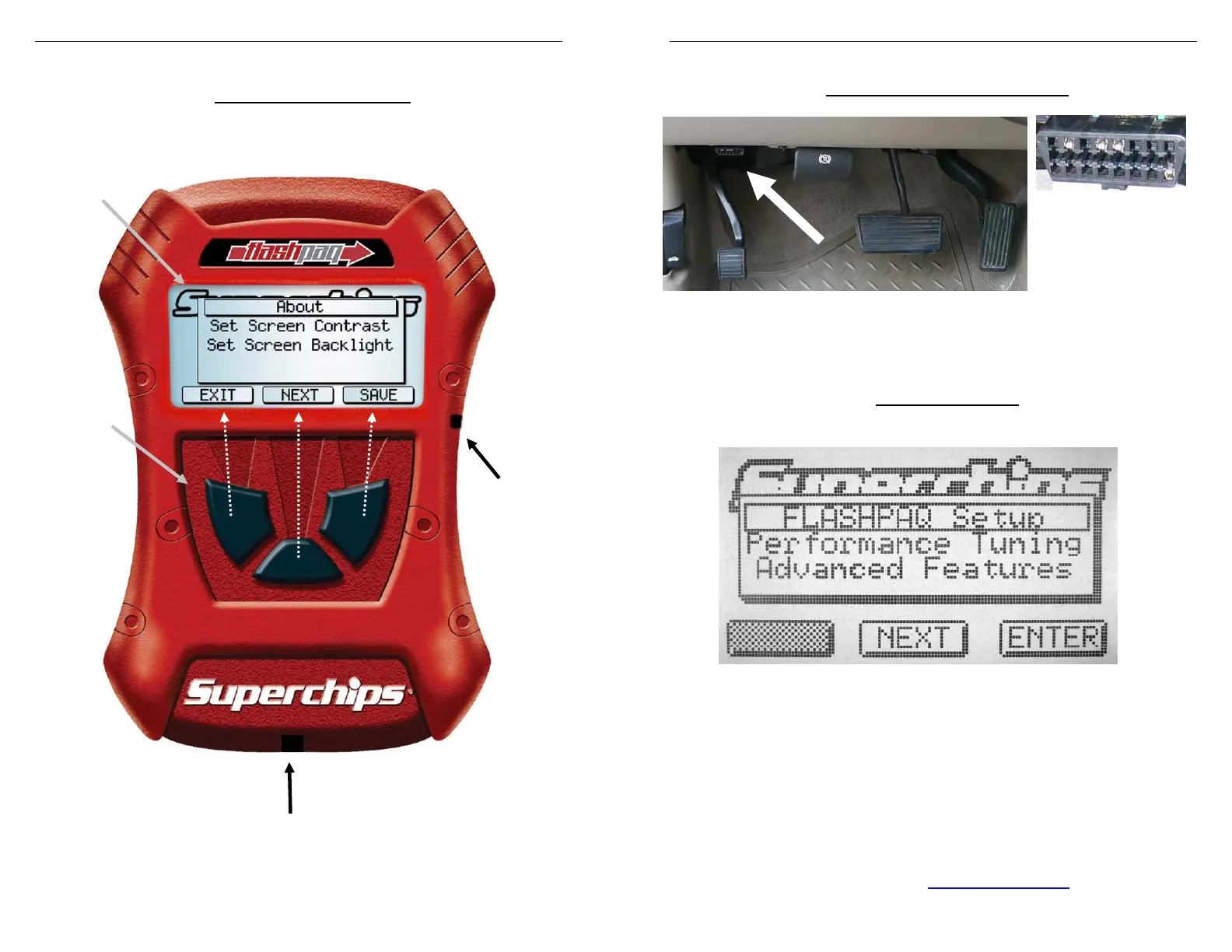

1. Understanding the hardware
Graphical Display
SoftKeys
Buttons
(Note screen
relation)
Vehicle Cable
USB
Port
for PC
Page 6 of 24 Form 0157G 1805 10/02/2007 Superchips Inc.
Superchips Inc. 1790 East Airport Blvd., Sanford, FL. 32773 (407) 585-7000 http://www.Superchips.com
Superchip & Superchips are registered trademarks of Superchips, Inc.
Section A – Overview of FLASHPAQ
2. Connecting Flashpaq to my vehicle
Diagnostic port
close up
The Flashpaq plugs into your vehicle’s The port and cable are
diagnostic port usually underneath the dash setup to only fit on one
below the steering wheel (see white arrow). way. Typically the wider
edge faces the top, as
shown above.
3. The Opening Screen
When a Flashpaq is first powered up, the opening screen is displayed
 FLASHPAQ Setup – See Flashpaq setup section
o About
o Set Screen Contrast
o Set Screen Backlight
 Performance Tuning – See Performance Tuning section
o Read Vehicle
o Change Settings
o View Settings
o Program Vehicle
 Advanced Features – See Advanced Features section
o Diagnostic Codes
o Data Logging (visit www.flashpaq.com
for updates)
