5
ABOUT THE SUPERMAX
19-38 DRUM SANDER
This manual was designed to help familiarize you
with your SuperMax 19-38 Drum Sander and to
help you take advantage of its exclusive features.
By understanding the major components and how
they work together, you will be able to get the
most from your investment. The SuperMax 19-38
Drum Sander system components are:
Specifications:
❖ Sanding Capacity
Maximum Width: 38” (two passes)
Minimum Length: 2 -1/4”
Maximum Thickness: 4” typical
Minimum Thickness: 1/32” typical
❖ Dimensions
Length-36”
Width-42”
Height-51” on stand
❖ Drum
5” in diameter
1740 RPM
❖ Dust hood
Hinged Back with 4”vaccum port
❖ Height Adjustment
1/16” per revolution of the height adjust-
ment handle
Depth Gauge included
❖ Conveyor Motor
Direct drive D.C. motor
Infinitely variable 1-10 feet per minute
❖ Drive Motor (TEFC)
1-3/4HP
Continuous Duty
❖ Power Requirements
110 Volt, Single Phase 20 Amp service

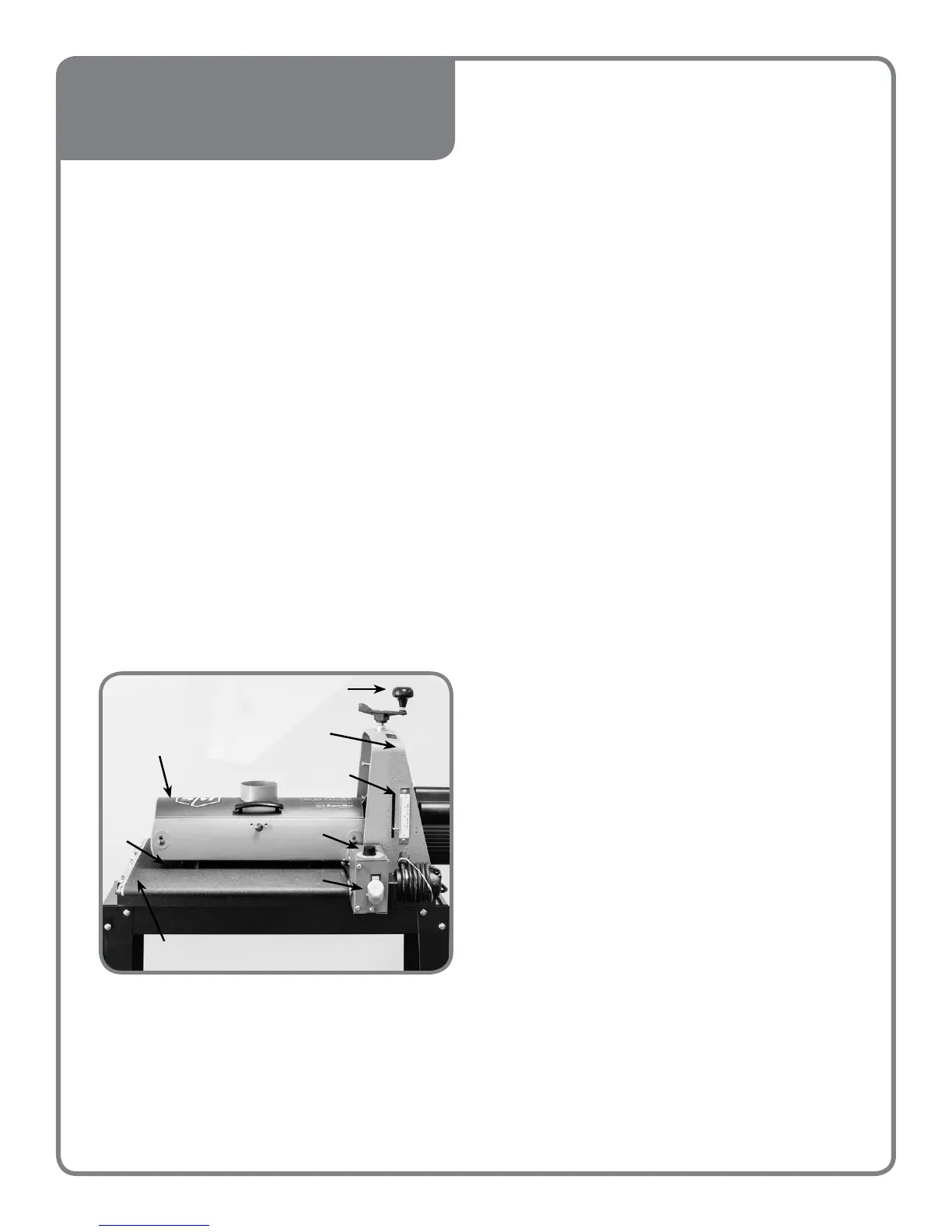

1. Height Adjustment Handle
2. Shroud
3. Depth Gauge
4. Conveyor Speed Adjustment
5. Drum ON/OFF Switch
6. Conveyor Table
7. Tension Rollers
8. Drum Carriage
1
2
3
4
6
7
8
5
