Supermicro A2SDi-H-TF User Manual

35

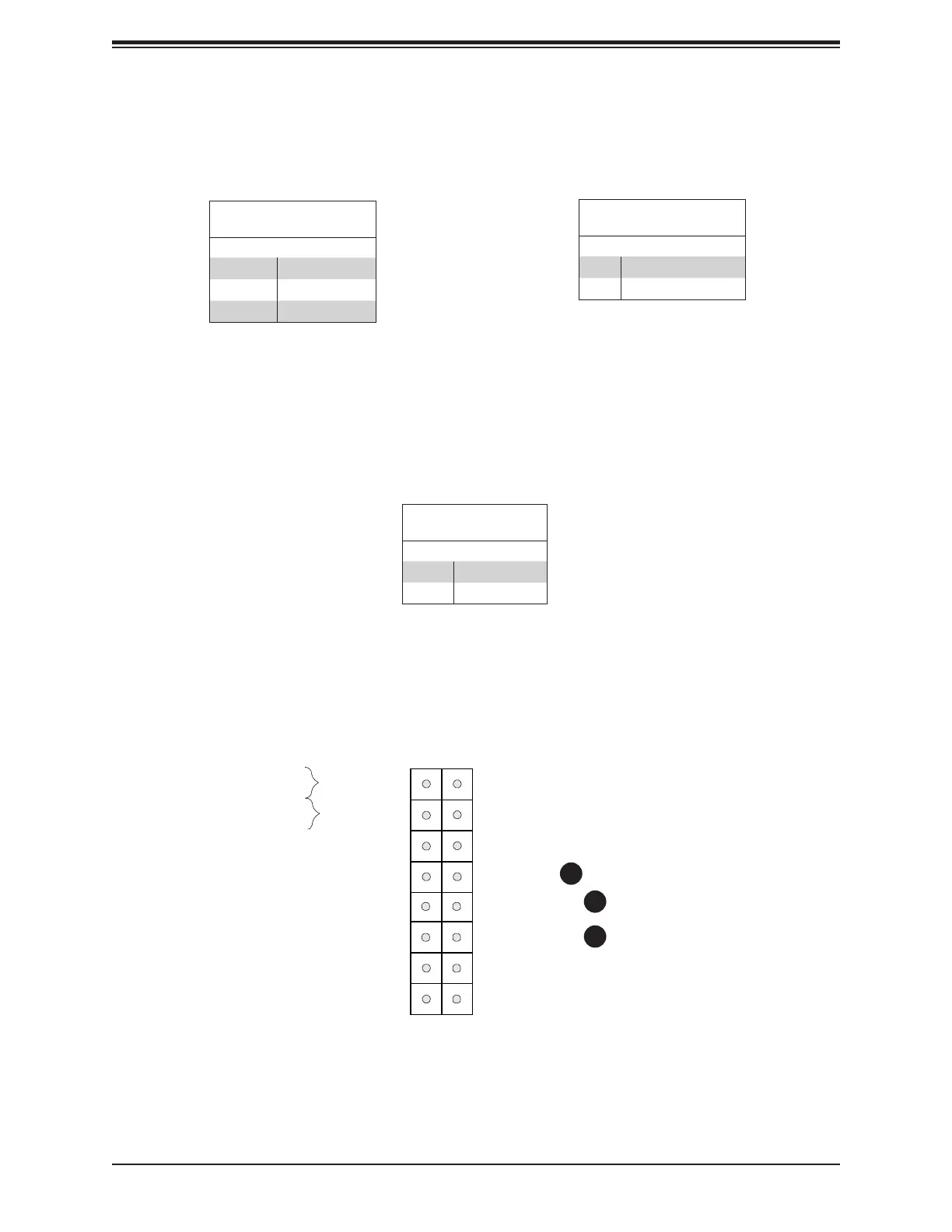

Chapter 2: Installation
Overheat (OH)/Fan Fail LED
Connect an LED cable to OH/Fan Fail connections on pins 7 and 8 of JF1 to provide warnings
for chassis overheat/fan failure. Refer to the table below for pin denitions.
OH/Fan Fail LED
Pin Denitions (JF1)
Pins Denition
7 Vcc/Blue UID LED
8 OH/Fan Fail LED
OH/Fan Fail Indicator
Status
Pin# Denition
Off Normal
On Overheat
Flashing Fan Fail
Power Button
OH/Fan Fail
NIC1 Active LED
Reset Button
HDD LED
PWR LED
Reset
PWR
3.3V
3.3V Stby
3.3V Stby
Ground
15
3.3V Stby
UID LED
16
1 2
Ground
NIC2 Active LED
Power Fail LED
3.3V
1
2
NIC1/NIC2 (LAN1/LAN2)
The NIC (Network Interface Controller) LED connection for LAN port 1 is located on pins
11 and 12 of JF1, and the LED connection for LAN Port 2 is on Pins 9 and 10. NIC1 LED
and NIC2 LED are 2-pin NIC LED headers. Attach NIC LED cables to NIC1 and NIC2 LED
indicators to display network activities. Refer to the table below for pin denitions.
LAN1/LAN2 LED
Pin Denitions (JF1)
Pins Denition
9/11 3.3 Stby
10/12 Activity LED
3
1. Overheat/Fan Fail
2. NIC2 LED
3. NIC1 LED
