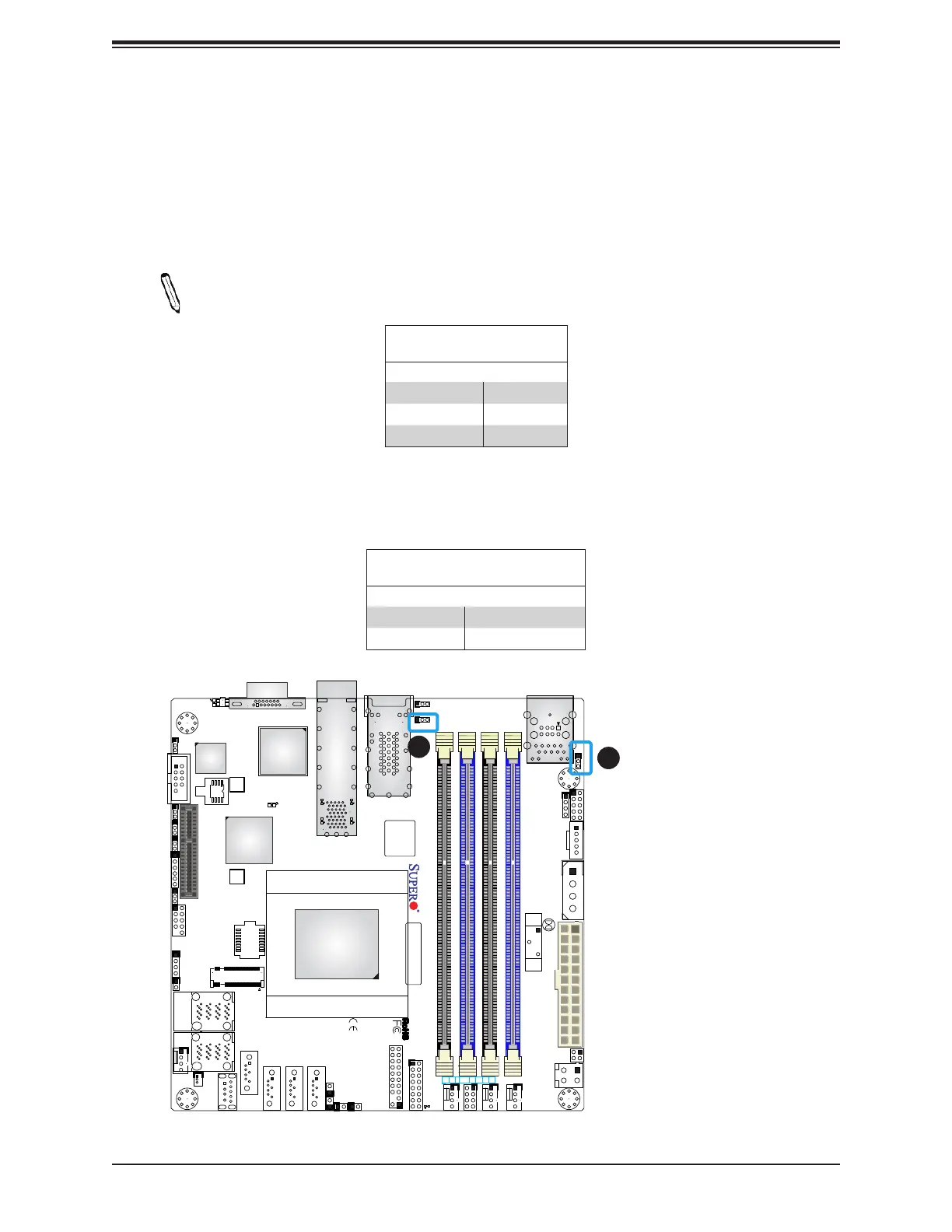

Supermicro A2SDi-H-TF User Manual

47
Chapter 2: Installation
BIOS Recovery
Close pins 2-3 of jumper JBR1 for BIOS recovery. The default setting is on pins 1-2 for normal
operation. Refer to the table below for jumper settings.
BIOS Recovery
Jumper Settings
Jumper Setting Denition
Pins 1-2 Normal
Pins 2-3 BIOS Recovery
Watch Dog
JWD1 controls the Watch Dog function. Watch Dog is a monitor that can reboot the system
when a software application hangs. Jumping pins 1-2 will cause Watch Dog to reset the
system if an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt
signal for the application that hangs. Watch Dog must also be enabled in BIOS. The default
setting is Reset.
Note: When Watch Dog is enabled, users need to write their own application software
to disable it.
Watch Dog
Jumper Settings
Jumper Setting Denition
Pins 1-2 Reset
Pins 2-3 NMI
Open Disabled
BIOS LICENSE
JTGLED1
JPW1
A2SDi-H-TF
REV:1.02
DESIGNED IN USA
BAR CODE
COM1
JPI2C1
JSD1
BT1
SRW1
SRW2
PRESS FIT
JPTG1
JWD1
JPG1
JBR1
JPME2
JI2C1
JI2C2
PRESS FIT
JSAS1
PRESS FIT
JSAS2
JMD1
1
LEDT1
C
A
LEDT3
C
A
LEDT2
C
A
LEDT4
C
A
LED1
A
JD1
JSMB1
JGP1
JBT1
JPH1
JPV1
FANA
FAN3
FAN1
FAN2
JF1
JTPM1
JL1
JRT4
JRT3
I-SATA2
I-SATA1
I-SATA3
I-SATA0
UIDLED1
C
A
LEDM1
8-11
4-7
I-SATA
I-SATA
IPMI LAN
DIMMA1
DIMMA2
DIMMB2 DIMMB1
Intel SoC
FCBGA1310
ALWAYS POPULATE DIMMx1 FIRST
CPU SLOT7 PCI-E 3.0 X4
M.2:PCI-E 3.0 X2 / I-SATA
LAN4
10Gb LAN
JPTG1:
2-3:DISABLE 1-2:ENABLE
1-2:ENABLE
JI2C1:
2-3:DISABLE
JI2C2:
1-2:ENABLE
2-3:DISABLE
1-2:NORMAL
JPME2:
2-3:ME MANUFACTURING MODE
RST
ON
PWR
2
NIC
OH/FFX
2-3:NMI 1-2:RST
JWD1:WATCH DOG
PWR
1 LED
HDDNIC
LED
JPI2C1: PWR I2C
LAN2
USB0/1
USB2/3
USB4(3.0)
UID
VGA
LAN1
LAN3
BMC
AST2400
Intel
X557-AT2
1
1. Watch Dog
2. BIOS Recovery
2
