Supermicro BPN-SAS3-LA26A-N12 User Manual

2-4
BPN-SAS3-LA26A-N12 Backplane User's Guide
2-3 Rear Connectors and LED Indicators

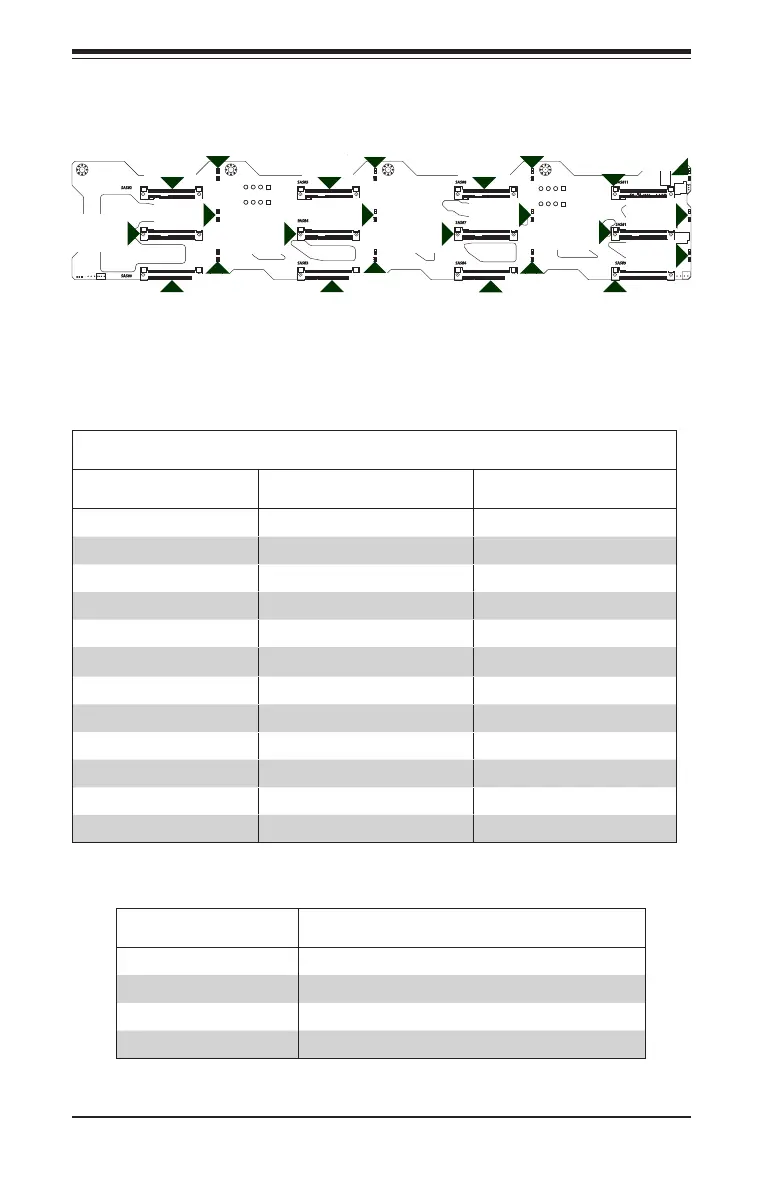

Figure 2-3. Rear Connectors and LEDs
LED1
D1
LED3
D3
LED2
D2
NVMe/
SAS#9
NVMe/
SAS#10
Front Hard Drive Connectors and LED Indicators
Drive Number HDD Activity LED (Blue) Status LED (Red/Green)
NVMe/SAS# 0 D1 LED1
NVMe/SAS #1 D2 LED2
NVMe/SAS #2 D3 LED3
NVMe/SAS #3 D4 LED4
NVMe/SAS #4 D5 LED5
NVMe/SAS #5
D6 LED6
NVMe/SAS #6 D7 LED7
NVMe/SAS #7 D8 LED8
NVMe/SAS #8 D9 LED9
NVMe/SAS #9 D10 LED10
NVMe/SAS #10 D11 LED11
NVMe/SAS #11 D12 LED12
NVMe/
SAS#1
NVMe/
SAS#2
NVMe/
SAS#5
Color and State Indication
Red, blinking at 4Hz Locate
Red, solid Failure
Red, blinking at 1Hz Rebuild
Green, solid NVMe device ready to be removed
NVMe/
SAS#4
NVMe/
SAS#7
LED4
D4
LED5
D5
LED8
D8
LED7
D7
LED10
D10
LED11
D11
LED6
D6
NVMe/
SAS#3
NVMe/
SAS#0
NVMe/
SAS#6
NVMe/
SAS#11
LED12
D12
LED8
D8
NVMe/
SAS#8
