Supermicro BPN-SAS3-LA26A-N12 User Manual

2-1
Chapter 2: Connectors and Pin Denitions
Chapter 2
Connectors and Pin Denitions
2-1 Front Connectors

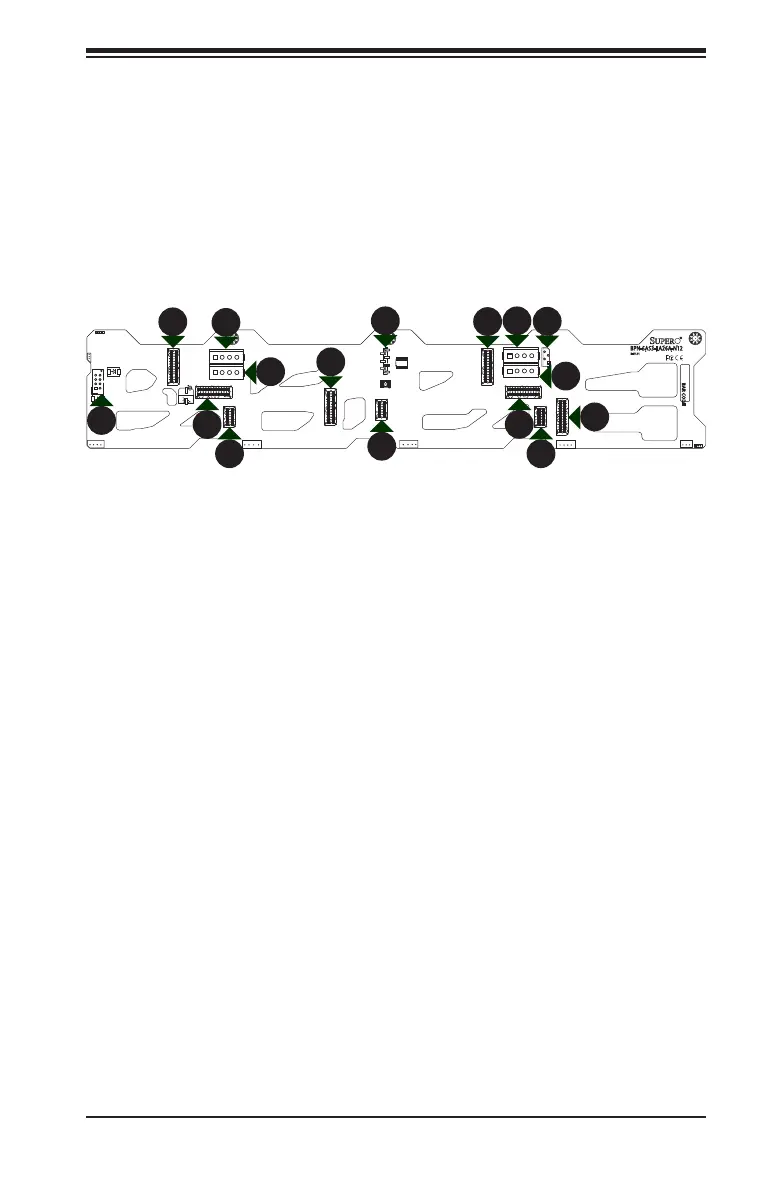

Figure 2-1. Front Connectors
1
2
4
1
5 5
4
4
2
1. 2x4 Power Connector: JPWR1.
2. 1x4 Power Connectors: JPW1,
JPW2, JPW3, and JPW4.
3. CPLD Programming Port: JTAG1.
4. SlimSAS x8 Connectors: NVMe1-
NVMe6.
5. SlimSAS x4 Connectors: CN1,
CN2, and CN3.
6. External BMC Port: JIPMB.
5
4
4
1
2
4
1
2
1
3
1
6
