8
H13DSH User's Manual

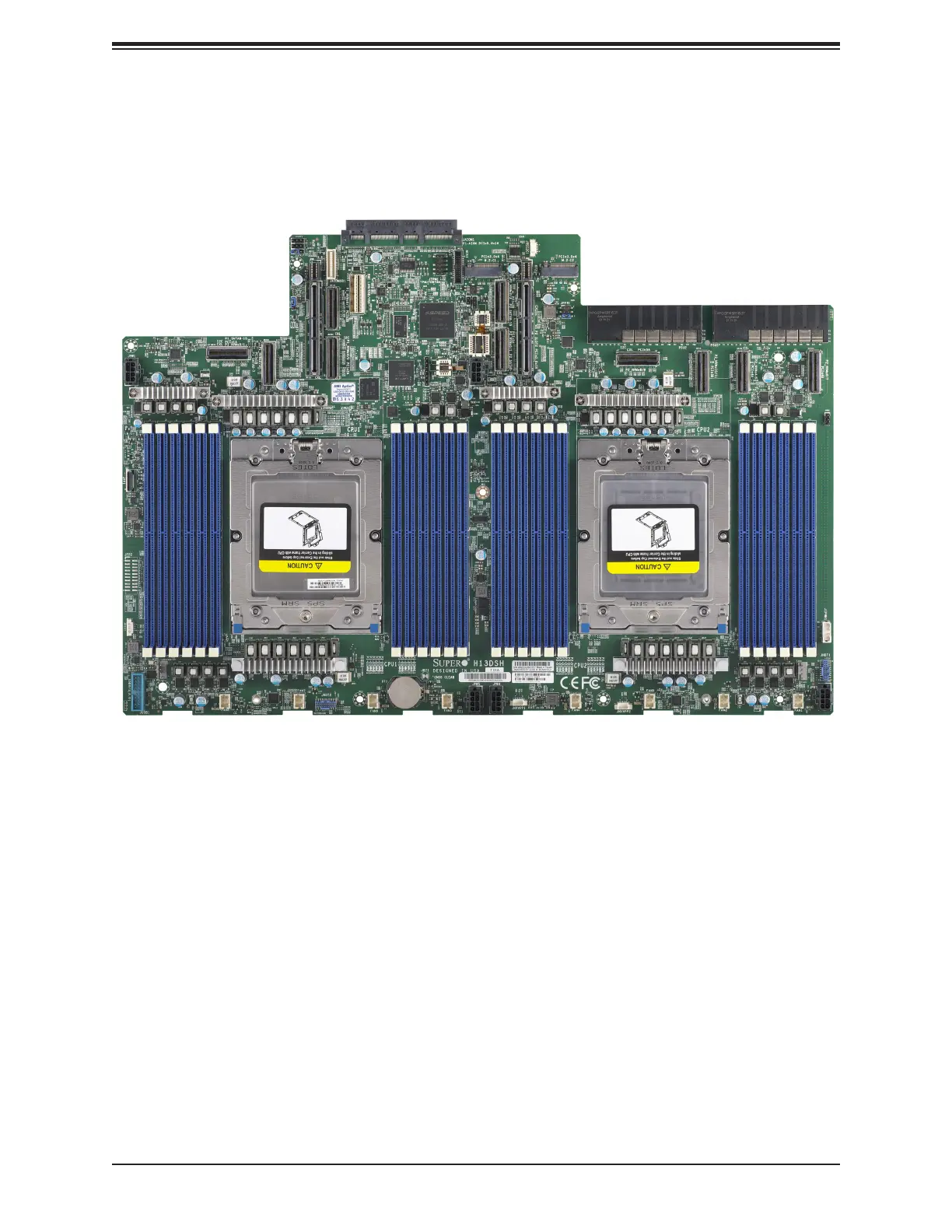

Figure 1-1. H13DSH Motherboard Image
Note: All graphics shown in this manual were based upon the latest PCB revision available
at the time of publication of the manual. The motherboard you received may or may not look
exactly the same as the graphics shown in this manual.
