SuperServer E300-9D-4CN8TP/E300-9D-8CN8TP User's Manual
Rear Features
The chassis rear holds input/output ports, described in Chapter 3.
Information LED
Status Description
Continuously on and
red
An overheat condition has occurred.
(This may be caused by cable congestion.)
Blinking red (1Hz) Fan failure, check for an inoperative fan.
Blinking red (0.25Hz)
Power failure, check for a non-operational power
supply.
Solid blue
UID has been activated locally to locate the
server in a rack environment.
Blinking blue
UID has been activated using IPMI to locate the
server in a rack environment.

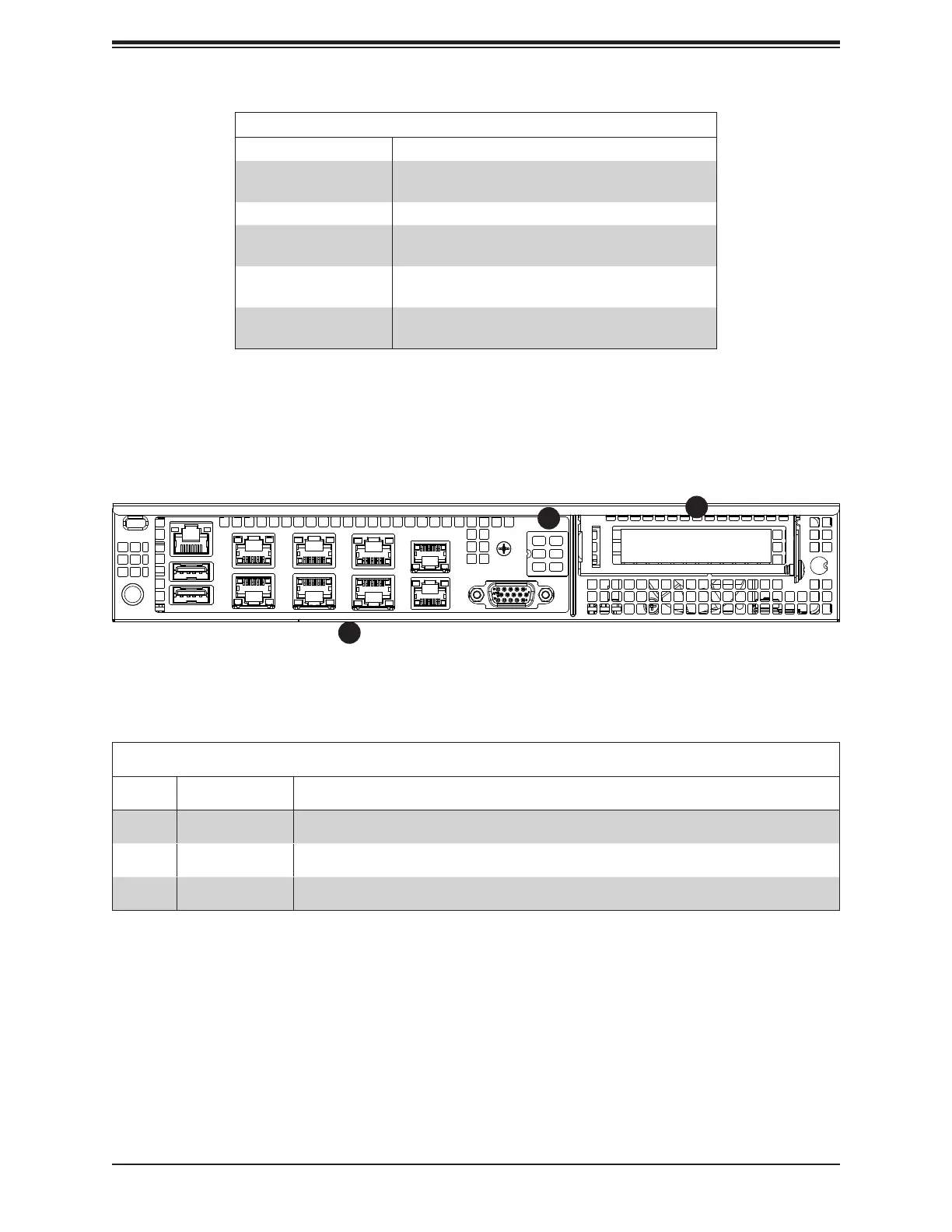

Figure 1-2. Rear Chassis View
Rear Chassis Features
Item Features Description
1 I/O Ports IPMI LAN, USB, LAN, VGA (further described in Chapter 3)
2 AOM Window Reserved for RJ45 console redirection cable
3 PCI Bay 
C
1
3
2
